Kit Savings

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle with 4x SM7B Microphone, 4x ATH-M40x Headphones, 4x Broadcast Arm, 4x XLR M to F Cable, 32GB microSD Card

SKU: ZOZL8SHK4 MFR: ZL8 SHK4
Earn VIP Reward Points

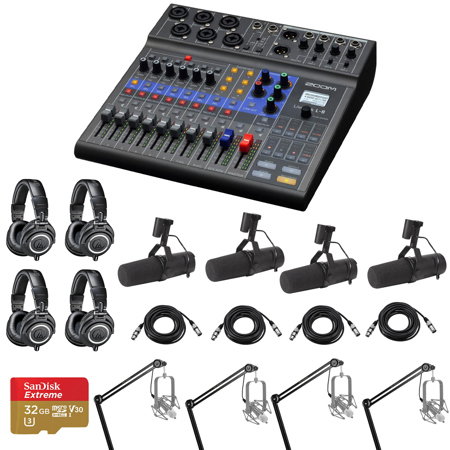

PACKAGE INCLUDES:

  • Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
    Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • +
  • Shure SM7B Cardioid Dynamic Studio Vocal Microphone
    Shure SM7B Cardioid Dynamic Studio Vocal Microphone

    Qty: 4

  • +
  • Audio-Technica ATH-M40x Professional Monitor Headphones, Black
    Audio-Technica ATH-M40x Professional Monitor Headphones, Black

    Qty: 4

  • +
  • 3 more

Key Features

  • Create professional podcasts with the Zoom LiveTrak L-8 digital recorder and mixer bundle.
  • Achieve pristine sound quality with the included Shure SM7B microphones in your recordings.
  • Enjoy hands-free operation with 4 broadcast arms, perfect for streaming and content creation.
  • Monitor audio clearly with Audio-Technica ATH-M40x headphones for accurate sound mixing.
  • Record directly to the included 32GB microSD card for portable field recording sessions.
  • Utilize versatile connectivity with XLR cables for seamless integration with audio equipment.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-01T08:03:19

Rated 3 out of 5

Not what I hoped for

The good: It did something very few other devices offer right now, at this price level. The bad: it’s driver crashed my machine, badly. It’s audio port mapping to the computer was confusing, and I ultimately had to use another piece of software to make sense of it.

RICHARD P.

2020-08-10T08:56:14

Rated 5 out of 5

Simply the best for its price

Very very good.

Rudys R.

2020-07-13T08:07:28

Rated 4 out of 5

Loving it, no issues

Iv had a the zoom l8 for a month and it does just as advertised! No issues with it at all, currently using it in my livestream setup. Plan on using for the podcast I’m starting as well. I’m sure it will be up to that task. Originally wanted the Rodecaster pro with it not being in stock and me not wanting to wait I picked the Zoom L8 definitely a nice alternative.

VICTOR P.

2020-03-04T07:47:54

Rated 5 out of 5

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

JAY R.

2020-02-11T10:30:06

Rated 5 out of 5

Just Amazing!

We've been using a ZOOM H4N for our podcasting, but have quickly grown into needed more inputs and more control. We have recorded two podcasts with the L-8 and loving it! It's a beast of a board in such a small package.

Steffen H.

2020-02-05T07:26:19

Rated 5 out of 5

Well built and designed portable mixer/recorder.

Well built and designed portable mixer/recorder with some great features. It makes recording easy with great quality.

Kevin S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom L-8 Specifications

  • Inputs

    2x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs
    4x XLR-1/4" TRS Combo Balanced Mic/Line Inputs
    2x 1/4" TS Unbalanced Line Inputs
    1x 1/8" / 3.5 mm TRRS Unbalanced Smartphone I/O

  • Outputs

    2x 3-Pin XLR Male Balanced Line Outputs
    4x 1/4" TRS Female Unbalanced Headphone Outputs

  • Input Gain

    Mic/Line Inputs: +10 to +54 dB

  • Input Impedance

    XLR: 3 Kilohms
    1/4" TRS/TS Line: 3 Kilohms
    1/4" TS Hi-Z: 510 Kilohms
    3.5 mm TRRS: 3 Kilohms

  • Maximum Input Level

    Mic/Line Inputs (Pad Off): -2 dBu at 0 dBFS
    Mic/Line Inputs (Pad On): +24 dBu at 0 dBFS
    1/4" TS Line Inputs: +4 dBu
    3.5 mm TRRS: +4 dBu

  • Phantom Power

    +48 VDC

  • Output Impedance

    XLR: 100 Ohms
    1/4" TRS: 10 Ohms

  • Maximum Output Level

    XLR: +14.5 dBu
    1/4" TRS: 10 mW per Channel (60-Ohm Load)

  • Buses

    Master: 1
    Monitor: 3
    Send EFX: 1

  • Channel Control

    Low-Cut Filter: 75 Hz at 12 dB/Octave
    High EQ (Shelving): +/-15 dB at 10 kHz
    Mid EQ (Peaking): +/-15 dB at 2.5 kHz
    Low EQ (Shelving): +/-15 dB at 100 Hz

  • Level Meters

    12 x 9-Segment LEDs

  • Effects

    8 Types

  • Recorder

    Maximum Simultaneous Recording Tracks: 12
    Maximum Simultaneous Playback Tracks: 10
    Format: WAV
    Bit Depth: 16-Bit or 24-Bit
    Sample Rate: 44.1, 48, or 96 kHz

  • Supported Media Card Types

    SDHC: 4 to 32 GB (Class 10 or Higher)
    SDXC: 64 to 512 GB (Class 10 or Higher)

  • Audio Interface

    Recording: 12 Channels
    Playback: 4 Channels
    Bit Depth: 24-Bit
    Sample Rate: 44.1 or 48 kHz
    Interface: USB 2.0

  • Card Reader

    Class: Mass Storage USB 2.0 High Speed

  • Frequency Response

    20 Hz to 20 kHz -1 dB at 44.1 kHz
    20 Hz to 40 kHz -3 dB at 96 kHz

  • Equivalent Input Noise

    121 dB EIN (IHF-A) at +54 dB, 150-Ohm Input

  • Display

    96 x 64 Backlit LCD

  • Power Requirements

    Battery: 4 x AA Batteries (Alkaline, NiMH, or Lithium)
    AC: Zoom AD-17 AC Adapter
    DC: 5 V, 1 A
    USB Bus Power

  • Battery Life

    Alkaline: Up to 2 Hours (Battery Save On, Phantom Power Off)
    NiMH: Up to 3 Hours (Battery Save On, Phantom Power Off)

  • Power Consumption

    5 W

  • Dimensions (W x D x H)

    10.55 x 11.1 x 2.91" (268 x 282 x 74mm)

  • Weight

    3.43 lb (1.56kg)

  • UPC Codes

    192223229648, 4961310125424, 192223105935, 192223075498, 42406088879, 619659193379, 884354021146

12 Accessories for Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle with 4x SM7B Microphone, 4x ATH-M40x Headphones, 4x Broadcast Arm, 4x XLR M to F Cable, 32GB microSD Card

  • All Accessories (12)
  • Memory & Storage (3)
  • Batteries & Power Supply (5)
  • Cables & Adapters (3)
  • Microphones & Audio (1)

About Zoom L-8

FEATURED REVIEWS

Simply the best for its price

By Rudys R.

Very very good.

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

By JAY R.

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

A comprehensive solution for professional audio recording and mixing, the Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle is designed to meet the evolving needs of creators. This advanced, portable package is equipped with a range of high-quality accessories, including 4x SM7B Microphones, 4x ATH-M50x Headphones, 4x Broadcast Arms, 4x XLR M to F Cables, and a 32GB microSD Card, providing a versatile and complete setup for any audio project.

The LiveTrak L-8 is specifically engineered for podcast creators, offering a unique set of audio features combined with the flexibility of a professional mixing console. With 6 easily-assignable Sound Pads, you can effortlessly play intros, outros, jingles, ads, and sound effects at the touch of a button, enhancing your audio production.

Remote interviews are simplified with the L-8's ability to connect your phone via the provided TRRS cable. The Mix-Minus function ensures echo and feedback prevention, while the USB connection allows audio routing from Skype, Facetime, Hangouts, Slack, and more.

The L-8 boasts six independent Zoom preamps, renowned for their transparency, power, and reliability. These preamps are capable of handling a wide range of audio inputs, from whispers to loud debates. The L-8 also features four headphone outputs, ensuring each participant can clearly monitor the audio.

The LiveTrak L-8 offers true multi-track recording, allowing you to record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz. This feature provides flexibility during editing and ensures high-quality audio output.

Designed for portability, the L-8 can operate for up to 2.5 hours on just four AA batteries or a USB battery, making it ideal for on-the-go podcasting. With the ability to record full episodes directly to your computer and an SD card simultaneously, you can also live stream while recording.

The L-8 also offers the convenience of saving up to 7 show "scenes" that can be instantly recalled at the press of a button. Whether you're a singer-songwriter or a small band, the LiveTrak L-8 is the perfect mixer and recorder for musicians seeking big sound in a compact package.

Zoom L-8 Features

  • Designed for podcasters, musicians, and content creators on-the-go, the LiveTrak L-8 is an all-in-one mixer and recorder that offers versatility, portability, and affordability in a single package
  • With six Sound Pads that can be easily assigned, podcasters can access intros, outros, jingles, ads, and sound effects, and record each participant on their separate track to improve audio quality and editing flexibility
  • Featuring six independent Zoom preamps and four headphone outputs, the L-8 offers powerful and transparent audio recordings, allowing users to hear themselves and other participants clearly
  • Users can connect their phone via TRRS cable or use the USB connection to route audio from various apps, such as Skype, Facetime, Hangouts, Slack, with the Mix-Minus function preventing echo and feedback, making remote interviews a breeze
  • Six high-performance preamps, each with phantom power, low noise floor, and EQ and onboard effects, make the L-8 an excellent tool for musicians seeking to fine-tune each channel
  • The L-8 enables users to record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz, punch-in, and overdub with ease, and transfer their work to their preferred DAW for additional adjustments
  • Powered by four AA batteries or USB battery, the L-8 provides up to 1 ½ hours of power, working as a 12-in/4-out audio interface that allows users to track directly into their preferred DAW or run backing tracks from their computer
  • With the L-8, users can save up to 7 show "scenes" that can be saved and instantly recalled at the press of a button, making the process faster and easier
  • Ideal for singer-songwriters, small bands, and content creators who value performance and portability, the L-8 is small in size but big on sound
  • For podcasters and musicians who want to mix, monitor, and record professional-sounding content anytime and anywhere, the L-8 is a game-changer

Product Documents

User Manual

Key Features

  • Create professional podcasts with the Zoom LiveTrak L-8 digital recorder and mixer bundle.
  • Achieve pristine sound quality with the included Shure SM7B microphones in your recordings.
  • Enjoy hands-free operation with 4 broadcast arms, perfect for streaming and content creation.
  • Monitor audio clearly with Audio-Technica ATH-M40x headphones for accurate sound mixing.
  • Record directly to the included 32GB microSD card for portable field recording sessions.
  • Utilize versatile connectivity with XLR cables for seamless integration with audio equipment.

What's in the box:

  • LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • 3.5mm TRRS Cable
  • USB Cable
  • AD-17 AC Adapter
  • Quick Guide
  • Zoom 1 Year Limited Warranty
  • 4x Shure SM7B Cardioid Dynamic Studio Vocal Microphone
  • 4x Audio-Technica ATH-M40x Professional Monitor Headphones
  • 4x H&A Broadcast Arm
  • 4x Value Series XLR M to F Professional Microphone Cable
  • 32GB microSDHC Memory Card
