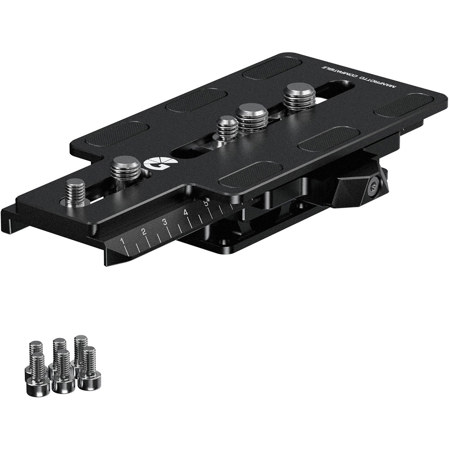

Bright Tangerine Manfrotto Riser Kit for 15mm Baseplate and RED V-RAPTOR Camera

Speed up transitions between tripod, handheld & compatible gimbals & receivers with this riser kit.

This kit sets the camera to the correct height for 15mm LWS and includes the Manfrotto riser & dovetail for the RED V-RAPTOR to connect with the LeftField 15mm LWS Universal Baseplate.

Set up the RED V-RAPTOR for 15mm LWS configurations with the ability to quickly switch between the LeftField 15mm LWS Baseplate and compatible gimbals & receiver plates.

Using the three captive screws on the captive shuttle, the camera can be securely mounted with no twisting or movement.

Manfrotto 501PL Compatible
The dovetail uses the Manfrotto 501PL standard allowing it to be loaded directly onto compatible receivers & gimbals without the need to change camera plates. The extra length provides ample room for balancing & adjustment.

Laser etched markers along the length of the dovetail let ACs mark down balanced positions on the gimbal.

Support For Accessories
Lens adapters can be secured using the front channel and supplied screws.

No Compromises
Machined and hand-finished in our single factory in Church Crookham from high-grade materials. Hard anodized for extended durability.

- Manfrotto Riser -
Set the RED V-RAPTOR to the correct height when using the Left Field 15mm LWS Baseplate with the Manfrotto or DJI RS 4 & 3 riser, when paired with the RED V-Raptor Manfrotto or DJI RS 4 & RS 3 dovetails.

The quick release allows for fast transitions between tripod, handheld & gimbal work without needing to change plates.

This interchangeable riser combines with LeftField 15mm LWS Baseplates and acts as a receiver for compatible Manfrotto & DJI dovetails.

The riser sets the RED V-RAPTOR at the correct height for 15mm LWS standards in combination with the dovetails. The quick release clamp enables fast transitions between setups.

Reliable & Safe
The riser comes preinstalled with the Ratchet Lock Lever which can be swapped out for the low profile locking screw.

The screw option requires a 4mm Hex key to securely tighten down the clamp with a higher force than a lever. Swapping out the lever removes the risk of it being knocked during operation.

When removing the dovetail, the safety is required to be pressed before the camera can be released.

Compatible with DJI RS 4 & RS 3 Gimbal Plates plus Manfrotto 501PL
The receiver is compatible with our Manfrotto & DJI RS gimbal dovetails. When using other plates, the height may vary resulting in non-standard heights.

Extra Care Comes Standard
Machined and hand-finished in our single factory in Church Crookham from high-grade materials. Hard anodized for extended durability.

Features
• Sets RED V-RAPTOR to 15mm LWS height standards when using Bright Tangerine Manfrotto & DJI RS 4 & RS 3 dovetails
• Compatible with any Manfrotto 501PL & DJI RS Plates (height may vary between plates)
• Interchangeable with other LeftField Baseplate Risers
• Includes Ratchet Lock Lever & Space Saving Locking Screw options to secure dovetail

- Universal Extended Manfrotto Dovetail -
Mount your camera on the LeftField Manfrotto Dovetail to quick release between the LeftField 15mm LWS Baseplate, Manfrotto 501PL receivers and compatible gimbals.

Lens adapters can be supported using the included 3/8" or 1/4" screws.

This dovetail mounts onto your camera and lets you quickly switch between the LeftField 15mm LWS Baseplate to gimbal or handheld in seconds. It also lets you mount the camera directly onto Manfrotto 501PL standard tripods and receivers.

Universal Fit
The dovetail includes three camera mounting screws (two 3/8-16" & a 1/4-20"). Using the three captive screws on the captive shuttle, the camera can be securely mounted with no twisting or movement.

The channel allows the camera to be balanced on the plate for weight distribution with the extra width providing added stability while removing any flex.

The screws can be removed when not required for smaller cameras with one or two mounting points.

Manfrotto 501PL Compatible
The dovetail uses the commonly used Manfrotto 501PL standard. Mount directly onto Manfrotto, Sachtler fluid heads and more that use the 501PL standard. Laser etched markers along the length of the dovetail let ACs mark down balanced positions on the gimbal.

When paired with our LeftField Manfrotto quick release risers, the camera is set at the correct height for 15mm LWS support & accessories.

Support For Accessories
Lens adapters can be secured using the front channel and supplied screws. Depending on the camera height, not all lens feet will be compatible or require spacers.

Features
• Compatible with any camera, 501PL receivers & compatible gimbals
• Slides onto LeftField 15mm LWS Baseplates with compatible Manfrotto risers
• 144mm length provides ample fore/aft range with racking gear
• Shuttle slides fore/aft to balance the camera and keep screws captive
• Wide platform for extra stability with rubber pads for grip
