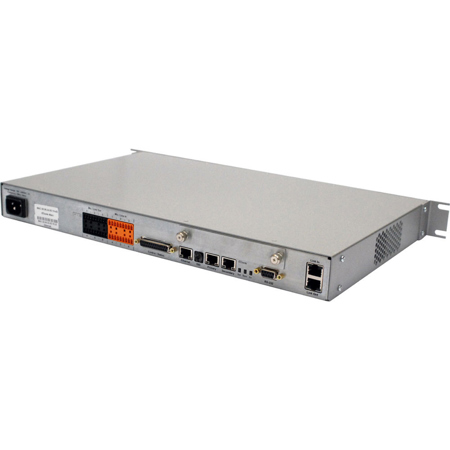

ClearOne CONVERGE Matrix 128 EX Audio Mixer/Router with 128x128 Audio Channel
See all ClearOne items

ClearOne CONVERGE Matrix 128 EX Audio Mixer and Router with 128x128 Dante Audio Channels

SKU: CO9103000004

This item is no longer available.

Recommended Alternatives

ClearOne CONVERGE Pro 2: Picture 1 regular
ClearOne CONVERGE Pro 2 DSP Mixer, 12 In, 8 Out, USB Audio & Telephone Interface
$3,649.00
ClearOne CONVERGE Pro 2: Picture 1 regular
ClearOne CONVERGE Pro 2 DSP Mixer with 12 Outputs, USB Audio, Output-only Mixer
$2,499.00
ClearOne CONVERGE Pro 2: Picture 1 regular
ClearOne CONVERGE Pro 2 DSP Mixer, 4 In/8 Out, USB Audio, VoIP, Tele Interface
$3,499.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ClearOne CONVERGE Matrix 128 EX Specifications

Compatibility

Compatibility

Jump to...

  • Compatibility

    All CONVERGE units (840T, 880, 880T, 880TA, 8i, SR1212, SR1212A, TH20, VH20)
    CONNECT Dante bridge
    WS800 wireless mic system
    Any 3rd party Dante products

Mic/Line Inputs & Outputs

Jump to...

  • Mic/Line Inputs & Outputs

    6 inputs
    6 outputs
    Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu +/- 0.5dBu

  • Equivalent Input Noise (EIN)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, <-98dB

  • Input Impedance

    2.2kOhms, 1% (Mic/Line balanced line to ground)

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level

    -65dBu to 20dBu

  • Phantom Power

    Impedance: 6.81kOhms, 48V

  • Output Impedance

    95Ohms, 1% (Mic/Line balanced)

  • Output Level

    0dBu(Nominal), 20dBu (Max), -40dBu (Selectable)

Dante

Jump to...

  • Audio channels

    128 x 128 bidirectional at 48kHz per pair of primary & secondary Dante ports

  • Sample rate

    48kHz/96kHz

  • Primary & Secondary network

    Gigabit Ethernet RJ45 connector

  • Expansion card

    Additional 128 x 128 bidirectional at 48kHz (Sold Separately)

Expansion Bus Input/Output

Jump to...

  • Proprietary Link In & Out ports

    RJ45 Cat5e/Cat6 connection for Redundancy setup

Other Ports

Jump to...

  • Ethernet

    10/100 Ethernet Network Port RJ45, auto negotiation

  • Serial

    RS-232, DB9 Female, Serial Command Protocol Only, 9600/19200/38400/115200 Baud; 8 bits, 1 stop, no parity

  • USB

    Type B connector, USB 2.0 compatible

  • Control/Status

    DB25 Female, 8 Open Collector Outputs, 12 Active High Inputs, 5VDC Power Source

  • Device Identification

    8 pin DID switch

General

Jump to...

  • Power

    100-240V AC, 50/60 HZ, AC inlet

  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Dimensions (WxDxH)

    17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

About ClearOne CONVERGE Matrix 128 EX

ClearOne's CONVERGE MATRIX audio mixer and router opens new opportunities for large-scale pro audio installations. Featuring 128 x 128 audio channels, it seamlessly integrates with the CONVERGE product line and any other 3rd party products, using Dante audio-over-IP networking technologies. It is ideal for audio distribution applications like sound reinforcement, live announcements, pre-recorded audio, emergency information, background music and paging.

Applications
• Government facilities
• Corporate buildings
• Transportation centers, Airports
• Universities
• Houses of Worship
• Hospitality & Entertainment venues
• Convention centers, Auditoriums
• Healthcare centers
• Cruise Ships

ClearOne CONVERGE Matrix 128 EX Features

  • CONVERGE MATRIX 128 EX supports 128 x 128 audio channel matrix
  • Field-upgradable with 128 x 128-expansion card to make it 256 x 256
  • Distributes digital audio using Dante networking technology
  • Mixes and routes audio channels
  • Works with all CONVERGE units (840T, 880, 880T, 880TA, 8i, SR1212, SR1212A, TH20, VH20) & CONNECT Dante bridge and WS800 wireless mic system
  • Works with any 3rd party Dante products
  • Shows full MATRIX view, filtered MATRIX view based on groups/zones
  • Provides highly scalable, reliable, modular system adds flexibility
  • Offers complete system redundancy support for network and device

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ClearOne CONVERGE Matrix 128 EX Audio Mixer and Router
  • USB Cable
  • Power Cable
  • 6x 3.5mm Terminal Block (Orange)
  • 6x 3.5mm Terminal Block (Black)
  • 4x #10-32 Rack Mounting Screws and Plastic Washers
  • ClearOne Warranty
