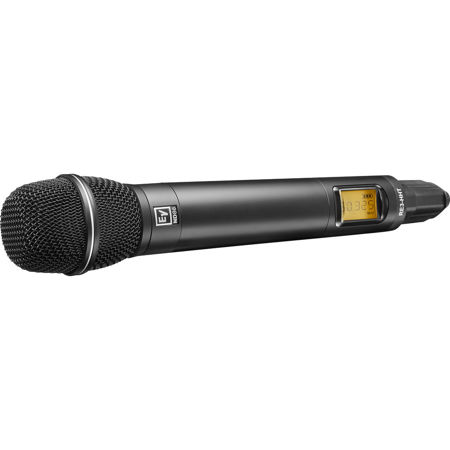

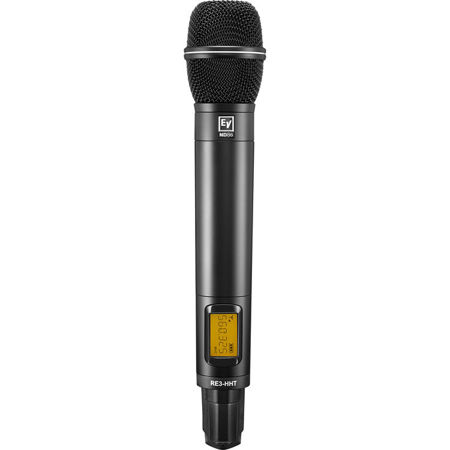

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head, 560-596MHz

SKU: EVF01U354249 MFR: F.01U.354.249
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless microphone system.
  • Achieve superior vocal clarity with the ND86 super cardioid microphone capsule head.
  • Enjoy freedom of movement with a reliable wireless range up to 596 MHz bandwidth.
  • Get long-lasting performance with up to 8 hours of battery life from 2 AA batteries.
  • Easily adjust settings using the LCD display for optimal wireless transmitter control.
  • Durable design ensures reliable performance for stage performances and presentations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND86 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Maximum SPL

    134.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5H: 560 - 596 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898768

About Electro-Voice RE3-ND86

Enhance your vocal performances and presentations with the RE3-HHT UHF Wireless Handheld Transmitter featuring an ND86 dynamic supercardioid microphone head. This high-performance device delivers a smooth, detailed, and present sound, providing superior acoustic control even in large venues.

The RE3-HHT transmitter is designed to pair seamlessly with the RE3-RX diversity receiver, ensuring rock-solid system performance. With the RE3's clear frequency scan and sync functions, setup is quick and straightforward.

The ND86-RC3 wireless head with the ND86 capsule is a robust, high-performance dynamic cardioid thread-on vocal microphone head. It's designed to electrically and mechanically adapt to Electro-Voice wireless handheld transmitters and many other brands that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.

The precisely tuned capsule of the ND86-RC3 delivers a rich, detailed frequency response, offering superior isolation from stage noise. The microphone head's dynamic capsule features a large Mylar diaphragm, which combines a large surface area for tonal balance with a low-mass high-velocity material for fast transient response.

The innovative capsule shock-mount system minimizes handling noise, eliminating mechanical vibrations and noise in the mix. The Memraflex grille is a durable tight-mesh grille wire that resists denting, ensuring your microphone head remains protected and maintains its appearance over time.

The RE3-HHT Handheld Transmitter is a robust, lightweight UHF handheld transmitter body, ideally suited for professional performance and presentation applications. It features a common threaded coupling for easy microphone head interchangeability and a selectable output power to overcome transmission range challenges.

The all-metal body operates on 2 AA alkaline or rechargeable NiMH cells, and the ultrasonic sync function simplifies system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The recharging contacts provide for functional use with the optional BC2 charging station, allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.

In summary, the RE3-HHT UHF Wireless Handheld Transmitter with ND86-RC3 Super Cardioid Microphone Capsule Head is a versatile, high-quality device designed to enhance your audio experience, whether you're performing on stage or presenting in a large conference room.

Electro-Voice RE3-ND86 Features

  • High-performance UHF wireless handheld transmitter with ND86 dynamic supercardioid microphone head
  • Excellent acoustic control, ideal for large venues, ensuring smooth, detailed, and present sound
  • Quick and simple setup with clear frequency scan and sync functions for rock-solid system performance
  • Robust, all-metal body transmitter with interchangeable microphone head coupling
  • Innovative capsule shock-mount system for minimizing handling noise and durable Memraflex grille for extended durability
  • Energy-efficient operation with 2 AA alkaline or rechargeable NiMH cells, and optional BC2 charging station compatibility

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless microphone system.
  • Achieve superior vocal clarity with the ND86 super cardioid microphone capsule head.
  • Enjoy freedom of movement with a reliable wireless range up to 596 MHz bandwidth.
  • Get long-lasting performance with up to 8 hours of battery life from 2 AA batteries.
  • Easily adjust settings using the LCD display for optimal wireless transmitter control.
  • Durable design ensures reliable performance for stage performances and presentations.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • ND86-RC3 Wireless Head with ND86 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
