JK Audio Innkeeper 2 Dual-Line Digital Hybrid, 3x Balanced XLR-F Inputs, 3x Balanced XLR-M Outputs, 200Hz-3600Hz Telephone Side Frequency Response

SKU: JKINN2

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JK Audio Innkeeper 2 Specifications

  • Line Input

    3 x Balanced Female XLR
    Impedance: 20kOhmss
    Level (Line): 500 mV RMS (-4dBu) nom. +10 dBu max

  • Line Output

    2 x Balanced male XLR
    Impedance: 200 Ohms
    Level (Line): 500 mV RMS (-4dBu) nom. +10 dBu max

  • Handset

    Front panel handset jacks biased for electret handset (not included)

  • Phone Line

    2 x RJ11C

  • Aux Phone

    2 x RJ11C

  • Isolation

    1500 VAC

  • Ringer

    0.5B REN

  • Frequency Response

    Telephone Side: 200Hz - 3600Hz

  • Power

    120-240 VAC power supply

  • Dimensions

    19.00 x 7.30 x 1.75" (48.26 x 18.54 x 4.44cm)

  • Weight

    7.2lbs (3.26kg)

  • UPC Code

    814170010147

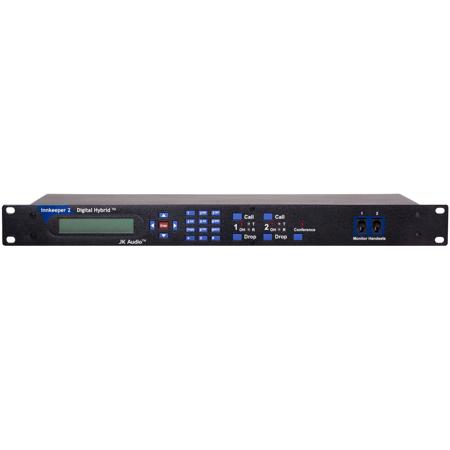

About JK Audio Innkeeper 2

The Jk Audio Innkeeper 2 Dual-Line Digital Hybrid squeezes two independent digital hybrids in a 1U rack space. The front panel keypad, display and handset jacks provide easy speed dialing and call setup. Digital hybrids allow you to send signals into the phone line while maintaining excellent separation between your voice and the caller. The balanced XLR output jacks contain only the caller's voice. It connects audio signals to standard analog telephone lines without the transmit / receive crosstalk common to analog hybrids. The Digital Signal Processor (DSP) continuously monitors both the phone line and audio signals to deliver excellent separation. This proprietary, dual-convergence echo canceller algorithm can achieve excellent separation, typically exceeding 50 dB, without any setup and without sending a noise burst down the line.

The menu driven keypad and back lit display allow you to store 50 phone numbers by name in a phone list. You can also use the display to set features such as the number of rings before auto answer, master send channel selection and test tone output. An auxiliary telephone jack is provided for each line. The auxiliary telephone is disconnected when you press the "Call" button and reconnected when you press the "Drop" button.

It features Auto-Answer/Auto Disconnect for use in IFB and monitoring applications. Call Conferencing is activated by the front panel Conference button or the Remote Interface Unit. The Conference button joins both calls in a 2-way conference when both lines are off hook. Additional options in the configuration menu allow you to tailor the conference feature to your application. These options determine if audio signals on the Send and Caller XLR jacks are mixed or kept separate during a conference. Other applications include: telephone interviews, talk shows, church PA interface and conference room full duplex applications.

JK Audio Innkeeper 2 Features

  • Excellent separation of send and receive audio
  • 16 bit DSP technology
  • Proprietary auto null algorithm, 50 dB null
  • Memory / Speed Dial from phone list
  • 12 key telephone style keypad with alpha-numeric legend
  • 2 line 20 character backlit LCD display
  • Four cursor buttons and one Enter button for menu functions
  • Auto answer / disconnect capable
  • Conference feature
  • Call and Drop buttons
  • Bi-color Send and Receive LEDs
  • XLR master input sends audio to selected lines
  • Monitor handset jacks

Key Features

  • Excellent separation of send and receive audio
  • 16 bit DSP technology
  • Proprietary auto null algorithm, 50 dB null
  • Memory / Speed Dial from phone list
  • 2 line 20 character backlit LCD display
  • Auto answer / disconnect capable

What's in the box:

  • Jk Audio Innkeeper 2 Dual-Line Digital Hybrid
  • AC Power Cable
  • 2 x RJ11 Phone Line Cables
  • Remote Terminal Block
  • 1 x RJ50 Cable
  • Jk Audio 2 Year Warranty
