Kit Savings

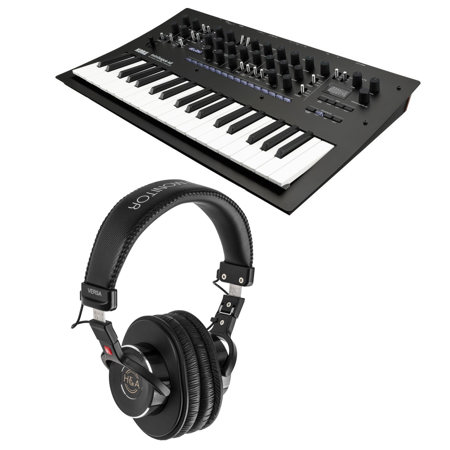

Korg minilogue xd 37-Keys Polyphonic Analog Synthesizer, White Keys, Bundle with TAPH100 Studio Monitor Headphones

SKU: KOMINLGUEXDA MFR: MINILOGUEXD B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Korg minilogue xd 37-Keys Polyphonic Analog Synthesizer, White Keys
    Korg minilogue xd 37-Keys Polyphonic Analog Synthesizer, White Keys
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Unleash your creativity with the Korg minilogue xd's versatile analog synthesizer engine.
  • Craft unique sounds with 37 velocity-sensitive keys, perfect for expressive performances.
  • Explore a wide sonic palette using the Multi Engine, featuring noise, VPM, & user oscillators.
  • Enhance your music with studio-quality effects: modulation, reverb, and delay for rich textures.
  • Connect to your favorite gear via MIDI and CV ports, integrating seamlessly into any setup.
  • Enjoy visual feedback with the OLED oscilloscope, a unique feature for real-time sound shaping.
See More Product Details

Product Options

Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$109.99

3 Year

$139.99

5 Year

$239.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-05-18T08:24:21

Rated 5 out of 5

What?s not to Love?!

Love the minilogue so far.

ORI B.

2022-05-18T08:23:45

Rated 4 out of 5

Amazing Synth ! But other items on Back Order

Only reason I?m not giving 5 stars is because I was not told that one of the items would be on back order from the manufacturer for months. I still do not know when I will be receiving the other item I purchased, but the Minilogue XD is a sick synth.

ORI B.

2022-05-10T10:07:07

Rated 5 out of 5

Amazing Synth!

I have been playing piano/keyboards for 50 years, but this is my first analog synth. I am very pleased with it! I had been looking at other models (Subsequent 37, Deepmind 12, and Minilogue). The Moog is awesome, but a little pricey for me. The Deepmind has a better price, but the signal path on it seems a little limiting and many of the controls are only accessible through menus (not on the front panel). Then I ran into the the Minilogue. This synth seemed to check all of the boxes for me. The price was right, it is pure analog with all of the classical filtering options, polysynth: really right down my alley. But wait, there's more! In doing my research, I stumbled onto the Minilogue XD. In addition to all of the features of the Minilogue, it throws in the ability to load in additional programs and effects. Essentially, this thing is infinitely expandable. So, after playing this synth for a couple of weeks, here are my initial impressions: Likes Intuitive layout with all of the essential controls at your fingertips. Well designed for live performance. Tons of onboard space for programs and the Librarian software give you the ability to backup and manage them. Good onboard sequencer capable of recording not only keystrokes but also parameter changes in real time or step mode. Solidly made and seems sturdy enough. Good connectivity options. Stereo output. Dislikes Keys are smaller than standard. Not a deal breaker but they take a little getting used to. Sequencer only has 16 steps. More would be better. No MIDI through. I have 2 other synths plus a drum machine to run.

Stephen W.

2022-03-01T03:57:40

Rated 5 out of 5

Amazing Best Value Synth

The XD looks and feels like an enhanced Minilogue. It shares the same design, the same four-voice polyphony, a similar control panel, and the same velocity-sensitive mini-keyboard. But when you delve beneath its surface, it becomes clear that the XD has far more in common with the Prologue than is immediately apparent.

DAVID D.

2022-02-01T11:40:04

Rated 5 out of 5

The Next Level

This thing is awesome. It's taking a bit getting used to, as we're coming from Volcas and Pocket Operators, but the sound is superb and the sequencer is easy to use.

James D.

2022-01-20T07:37:19

Rated 5 out of 5

The perfect first analog synth

The perfect first analog synth. I love the multi engine and the effects combined with the great ergonomics of all the knobs. Keys also feel very good for mini keys.

KADEN G.

2021-03-30T10:08:10

Rated 5 out of 5

Could not recommend more

This juicy thing fucking rules

AUSTIN B.

2021-03-30T09:52:30

Rated 5 out of 5

Could not recommend more

Bad ass juicy synth. One of the best things to add to the collection, truly out of this world

AUSTIN B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Korg minilogue xd Specifications

  • Keyboard

    37-keys (Slim-key, velocity sensitive)

  • Sound Generation

    Analogue sound generator + Multi digital sound generator (Noise, VPM, User)

  • Maximum Polyphony

    4 voices

  • Programs

    500 voices (more than 200 preload, 300 user programs)
    Each program provides a program sort function that includes voice mode settings
    Favorite function built in

  • Voice Mode

    4 (POLY, UNISON, CHORD, ARP / LATCH)
    The VOICE MODE DEPTH setting allows different parameters to be varied for each mode

  • Sequencer

    16-step polyphonic sequencer
    Motion sequence can be used on up to four parameters

  • Main Synthesis Parameters

    VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
    VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
    MODULATION: SYNC, RING, CROSS MOD DEPTH
    MULTI ENGINE: NOISE/VPM/USER, TYPE, SHAPE
    MIXER: VCO1, VCO2, MULTI
    VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
    AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
    EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
    LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE(BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

  • Main effect Parameters

    EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

  • Multi Engine

    Noise Generator: 4 types
    VPM oscillator: 16 types
    User oscillator: 16 slots

  • MOD Effects

    CHORUS: 8 types
    ENSEMBLE: 3 types
    PHASER: 8 types
    FLANGER: 8 types
    USER: 8 types

  • Delay

    DELAY: 12 types
    USER: 8 slots

  • Reverb

    REVERB: 10 types
    USER: 8 slots

  • Controls

    Joy stick that can modify different parameters for each program, PORTAMENTO knob

  • Display

    Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
    MULTI ENGINE section: 7 segments x 6 digit LED display

  • Input/Output connectors

    Headphone jack (Stereo phone jack)
    OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
    CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V - +5 V (Modulation mode), -3V - +5 V (CV/Gate mode)
    SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
    SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
    MIDI IN jack
    MIDI OUT jack
    USB B jack
    DAMPER jack (half damper is not supported)

  • Power Supply

    AC adapter (DC9 V)

  • Power Consumption

    8W

  • Dimensions (WxDxH)

    19.69 x 11.81 x 3.35" (50.01 x 30.00 x 8.51cm)

  • Weight

    2.8kg (6.17 lbs)

  • UPC Codes

    192223199231, 4959112187986, 192223227576

About Korg minilogue xd

FEATURED REVIEWS

What?s not to Love?!

By ORI B.

Love the minilogue so far.

Amazing Synth!

By Stephen W.

I have been playing piano/keyboards for 50 years, but this is my first analog synth. I am very pleased with it! I had been looking at other models (Subsequent 37, Deepmind 12, and Minilogue). The Moog is awesome, but a little pricey for me. The Deepmind has a better price, but the signal path on it seems a little limiting and many of the controls are only accessible through menus (not on the front panel). Then I ran into the the Minilogue. This synth seemed to check all of the boxes for...

View full Review

What sets the minilogue xd Polyphonic Analog Synthesizer apart is its seamless blend of classic analog warmth and cutting-edge digital innovation. This sophisticated instrument caters to the modern musician with its advanced Prologue MULTI Engine, offering an expanded sequencer and a trio of multi-effects for boundless sound exploration. The minilogue xd is the epitome of innovation, designed to shatter expectations within its class and provide a professional-grade tool for music creation.

The heart of the minilogue xd lies in its four-voice polyphonic analog synthesis. Building on the legacy of the original minilogue, the xd version refines its voice structure with 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. The signature circuits, including wave shaping and a sync/ring switch, are complemented by cross modulation, a crisp two-pole filter, and a drive switch that enriches the sound with harmonic depth and intensity.

Every parameter of the minilogue xd has been meticulously calibrated to meet the discerning demands of musicians, offering a spectrum of sounds from lush analog pads to robust basses and sharp lead tones. With the ability to save custom programs directly in the unit, the synthesizer comes pre-loaded with 200 presets, and a total of 500 programs can be stored, ensuring that your unique sounds are always at your fingertips.

The digital multi-engine, serving as a third oscillator, unlocks additional sound design possibilities that transcend the realm of analog. It houses three distinct sound generators - noise, VPM, and a user slot - allowing for a hybrid approach to sonic creation. The noise generator is essential for crafting percussive elements and sound effects, with a digital filter to modify the noise color.

The VPM oscillator within the multi-engine is adept at producing complex, metallic textures with its Variable Phase Modulation/FM capabilities. With 16 types of oscillators and intuitive SHAPE knob control, the minilogue xd encourages the creation of intricate sounds with ease.

User oscillators are another highlight, offering 16 user slots and a preset morphing wavetable oscillator, enabling you to load custom or downloaded oscillator programs. The high-quality digital effects, powered by 32-bit floating-point DSP processing, add the final polish to your sound design. Three effect types - modulation, reverb, and delay - can be used simultaneously, with a wide variety of settings and user effect slots for loading your own creations.

The minilogue xd's open architecture fosters a community of user customization. With the SDK (Software Development Kit), you can load custom oscillators and effects into the synthesizer via dedicated librarian software, sparking new sonic possibilities through the fusion of digital and analog synthesis.

The expanded sequencer is controlled by 16 tactile buttons, supporting both real-time and step recording. The sequencer not only allows for direct step selection but also motion sequence recording, capturing up to four knob movements for dynamic sound evolution. This feature unlocks the potential for intricate drum patterns and sound effects from a single program.

The thoughtfully designed interface includes a joystick for pitch bend and modulation, with the option to assign other parameters to its axis. The minilogue xd offers four voice modes - POLY, UNISON, CHORD, and ARP/LATCH - each with a dedicated depth knob to further shape the sound. The micro tuning function, with presets from renowned artists and space for user-created scales, invites you to explore the world of unique tunings.

The larger organic EL display now includes an oscilloscope, providing real-time visual feedback of the waveform, and a motion view display for visualizing stored sequences. The final stage stereo effect unit, stereo output jacks, a damper pedal jack, and two CV IN jacks (-5V-+5V) for external modulation control, round out the comprehensive connectivity options.

The minilogue xd comes bundled with the H&A Versa Pro Monitor Headphones, designed for high-quality sound isolation and comfort, allowing you to immerse yourself in the nuanced textures of your music. Whether you're performing live or crafting tracks in the studio, the minilogue xd Polyphonic Analog Synthesizer with Prologue MULTI Engine is a high-quality instrument that empowers you to realize your musical vision with unparalleled sophistication and versatility.

Korg minilogue xd Features

  • Four-voice polyphonic analog synthesizer with Prologue MULTI Engine for hybrid sound design
  • Expanded sequencer with 16-step buttons, real-time and step recording capabilities
  • 3X Multi-Effects with modulation, reverb, and delay, plus 32-bit floating-point DSP processing
  • Customizable user interface with 16 user oscillator slots and 16 user effect slots
  • Intuitive joystick control and four distinct voice modes for creative expression
  • Large organic EL display with oscilloscope and motion view for visual feedback

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Unleash your creativity with the Korg minilogue xd's versatile analog synthesizer engine.
  • Craft unique sounds with 37 velocity-sensitive keys, perfect for expressive performances.
  • Explore a wide sonic palette using the Multi Engine, featuring noise, VPM, & user oscillators.
  • Enhance your music with studio-quality effects: modulation, reverb, and delay for rich textures.
  • Connect to your favorite gear via MIDI and CV ports, integrating seamlessly into any setup.
  • Enjoy visual feedback with the OLED oscilloscope, a unique feature for real-time sound shaping.

What's in the box:

  • Korg minilogue xd Polyphonic Analog Synthesizer with Prologue MULTI Engine/Expanded Sequencer/3X Multi-Effects/X/Y Joystick and CV Ins
  • AC Adapter
  • Korg 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Studio Monitor Headphones
