Kramer Electronics Kramer VP-790 8-Input ProScale Genlock Scaler/Switcher
See all Kramer Electronics items

Kramer Electronics VP-790 8-Input ProScale Genlock Presentation Scaler/Switcher with Ethernet Control, HDTV Compatible, DVI/HDMI/3G HD-SDI Outputs

SKU: KRVP790

This item is no longer available.

Recommended Alternatives

Kramer Electronics MX-88: Picture 1 regular
Kramer Electronics Cobra MX-88 8x8 Twisted Switcher, Bk
$3,365.00
Kramer Electronics VP-23C: Picture 1 regular
Kramer Electronics Kramer VP23C 10-Input Audio Presentation Switcher
$750.00$600.00
Kramer Electronics VP-28: Picture 1 regular
Kramer Electronics VP-28 14-Input Multi-Format Presentation Switcher
$2,265.00$1,810.40
Kramer Electronics VP-553: Picture 1 regular
Kramer Electronics VP-553 Boardroom Presentation Switcher/Dual Scaler
$3,595.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics VP-790 Specifications

  • Inputs

    1 SD/HD/3G HD-SDI on a BNC connector,
    1 HDMI connector (HDCP version 1.1),
    1 VGA on a 15-pin HD connector,
    1 composite video on an RCA connector,
    1 composite video on a BNC connector,
    1 component video/RGBS on 3/4 RCA connectors,
    1 DVI on a DVD-I connector,
    1 s-Video on a 4-pin connector

  • Outputs

    1 SD/HD/3G HD-SDI on a BNC connector,
    1 DVI/HDMI on a DVI-D connector (HDCP version 1.1),
    1 VGA on a 15-pin HD connector,
    1 S/PDIF on an RCA connector

  • Output Resolutions

    640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200, 480i, 480p, 576p, 720p, 1080i, 1080p

  • Controls

    Input selector buttons: Blank, mute, freeze, reset to XGA/720p, panel lock. Menu functions: menu, enter, menu arrows. RS-232, Ethernet, IR

  • Operating Temperature:

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -25deg. to +85deg.C (-13deg. to 185deg.F)

  • Humidity

    5% to 95%, RHL non-condensing

  • Power Source

    100-240V AC, 50-60Hz; 35VA (500mA maximum)

  • Dimensions

    19 x 7" / 48.26 x 17.78cm (W x D); 1U Rack mountable

  • Weight

    6lbs / 2.72kg (approx.)

About Kramer Electronics VP-790

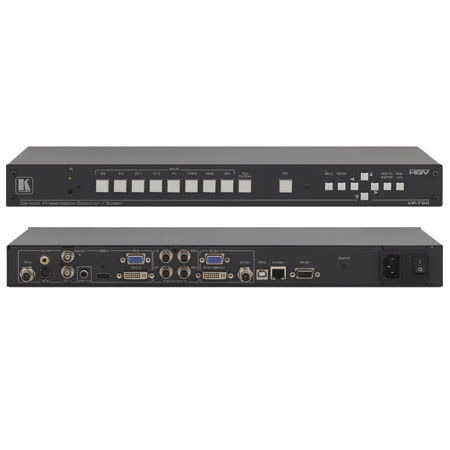

The Kramer Electronics VP-790 is a high-quality presentation scaler/switcher for RGB component, computer graphics, composite, s-Video, HDMI, DVI and 3G HD-SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to the computer graphics, DVI/HDMI and 3G HD-SDI outputs simultaneously.

Kramer Electronics VP-790 Features

  • HQV Video Processing - HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), noise reduction and scaling performance for both standard-definition and high-definition signals
  • Max. Data Rate - 3Gbps (3G HD-SDI)
  • HDTV Compatible
  • HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
  • Video Warping - Uses user-generated screen coordinates to match any linear or non-linear surface
  • Edge Blending - Facilitates building large images using multiple projectors by feathering the overlapped edges
  • Video Inputs - 1 HDMI, 1 computer graphics video (15-pin HD), 2 composite video (BNC & RCA), 1 s-Video (4-pin), component video (RGBS), 1 DVI and 1 3G HD-SDI
  • Genlock Input - Ideal for use in broadcast video applications
  • Scaled Outputs - DVI/HDMI, 3G HD-SDI & computer graphics video (15-pin HD)
  • Scales and Zooms - Up to 400% of the original size
  • Gaming Mode Option - For minimum latency
  • Audio Output - S/PDIF de-embedded from HDMI or SDI
  • Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness
  • Front Panel Controls - OSD, front panel buttons including test pattern, PIP and Reset to XGA/720p
  • Non-Volatile Memory - Saves final settings
  • Front Panel Lockout
  • Flexible Control Options - Front panel with OSD (on-screen display), IR remote, Ethernet and RS-232
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDTV Compatible
  • Front Panel Lockout

What's in the box:

  • Kramer Electronics VP-790 8-Input Scaler/Switcher
  • Power Cord
  • Rack Ears
  • IR Remote Control Transmitter
  • Kramer Electronics 7 Years Limited Warranty
