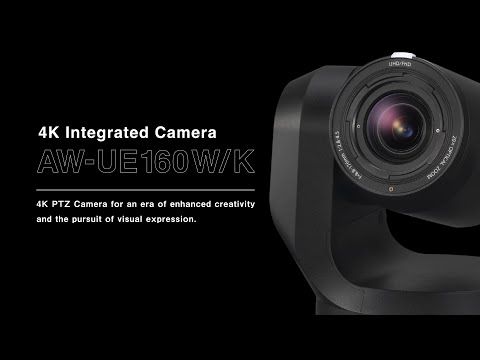

Panasonic AW-UE160 4K UHD HDMI/3G-SDI/IP Integrated 20x PTZ Camera, Black

SKU: PCAWUE160KPJ MFR: AW-UE160KPJ
Earn VIP Reward Points

Key Features

  • Capture stunning 4K UHD video with the Panasonic PTZ camera's detailed imagery.
  • Experience smooth pan, tilt, and zoom operations for seamless event video coverage.
  • Utilize the 20x optical zoom to get closer to the action with this Panasonic camera.
  • Enjoy flexible connectivity with HDMI, 3G-SDI, and IP outputs for diverse workflows.
  • Benefit from exceptional low-light performance, ideal for dimly lit broadcast settings.
  • Easily integrate this PTZ camera into your existing network with PoE++ support.
See More Product Details

Product Options

Temporarily On Backorder?Request assistance or get notified

Final Sale - No Returns or Exchanges

Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic AW-UE160 Specifications

  • Finish

    Black

  • Current consumption

    5.0 A (XLR IN connector), 1.5A (PoE++ power supply)

  • Power Requirements

    12VDC +/-10%(10.8V to 13.2V)

  • Ambient Operating Temperature

    32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)

  • PoE++

    IEEE802.3bt standard :DC 42 V to 57V (Camera Input)

  • Storage Temperature

    -4 Degree F to +122 Degree F (-20 Degree C to +50 Degree C)

  • Ambient Operating Humidity

    20 % to 90 % (no condensation)

  • Controller Supported

    AW-RP150, AW-RP60, AK-HRP1010, AK-HRP1015, AK-HRP250

  • LENS

    Motorized Optical 20xZoom F2.8 to F4.5(f=8.8 mm to 176.0 mm,35mm equivalent:24.5 mm to 490.0 mm)i.Zoom, D.Extender

  • Imaging Sensors

    1-type (1") 4K MOSx1
    Effective Pixels: Approx. 9,620,000 pixels

  • Optical Filter

    Through 1/4, 1/16, 1/64

  • Focus

    Switching between auto and manual

  • Angle of View Range

    Horizontal: 75.1 Degree (wide) to 4.0 Degree (tele)
    Vertical: 46.7 Degree (wide) to 2.3 Degree (tele)
    Diagonal: 82.8 Degree (wide) to 4.6 Degree (tele)

  • Minimum Illumination

    2lx (F2.8, 59.94p, 50IRE, +42dB, without accumulation)

  • Focus Distance

    Entire zooming range: 1000 mm, Wide end: 100 mm

  • Standard Sensitivity

    F11/2,000lux (Normal), F14/2,000lux

  • Color Separation Optical Systems

    1MOS

  • Horizontal Resolution

    1,600 TV Typ (center area, UHD Mode, Wide)

  • Gain Selection

    Auto, 0dB to 36dB

  • Frame Mix

    Auto, 0dB, 6dB, 12dB, 18dB, 24dB

  • Electronic Shutter Speed

    60p/59.94p/59.94i: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
    29.97p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000
    23.98p/24p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000

  • Electronic Shutter Speed (Contd.)

    50p/50i: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
    25p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00
    59.94p.120fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
    50p.100fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000

  • Synchro scan

    60p/59.94p/59.94i:60.00Hz to 7,200Hz
    29.97p:30.00Hz to 7,200Hz
    23.98p:24.00Hz to 7,200Hz
    50p/50i:50.00Hz to 7,200Hz
    25p:25.00Hz to 7,200Hz
    59.94p.120fps:120Hz to 7,200Hz
    50p.100fps:100Hz to 7,200Hz

  • White Balance

    ATW: 3200K, 5600K
    ATW Speed : Normal / Slow / Fast
    AWB-A, AWB-B
    VAR (selectable between 2000 K and 15000 K by designating a value)

  • Gamma

    HD/NORMAL/CINEMA1/CINEMA2

  • Scene File

    Scene 1 to 8

  • Chroma Amount Variability

    OFF, -100% to 40%

  • Output Format (UHD/FHD SDI)

    4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.

  • Output Format (HDMI)

    4K
    2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native)

    HD
    1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p

  • Output Format (Fiber(Only Video))

    4K
    2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native)

    HD
    1080/60p, 080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

  • Output Format (ST2110)

    HD
    1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p

  • HDMI

    HDMI 2.0 connector
    4:2:2/10bit
    HDCP is not supported.
    Viera Link is not supported.

  • Synchronization System

    Internal/External synchronization (BBS/Tri-level sync)

  • INPUT

    DC 12 V IN, G/L IN(BNC)

  • G/L IN

    BBS (Black Burst Sync), tri-level sync supported)

  • Audio Input 1/2

    XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)
    AAC compatibility (compatible with IP only)
    XLR3 female balanced input 2ch During MIC input
    Input level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)
    Phantom power compatible
    Supply voltage:47 V +/-2 V
    Input impedance:Approx. 10k Ohm During LINE input

  • Audio Input 1/2 (Contd.)

    Input level :0 dBu ( or +4dBu/-20dBu)
    Input impedance:Approx. 10k Ohm
    Input volume variable range: -40 dB -0dB-+20 dB(1 dBstep)
    Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS
    Sampling frequency:48 kHz
    Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP)

  • 12G SDI OUT

    SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ohm(BNC x1)

  • 3G SDI OUT1

    SMPTE424M /SMPTE292M / 75 Ohm(BNC x1)

  • 3G SDI OUT2/PM

    SMPTE424M /SMPTE292M / 75 Ohm(BNC x1)

  • SFP+

    SFP+ standard (Single Fiber)

  • LAN

    LAN connector for IP control (RJ-45)

  • USB

    USB3.0 HOST(5G mobile router with USB tethering support)

  • RS-422

    CONTROL IN RS422A (RJ-45)

  • SFP+ (ST2110)

    ST2110-10/-20/-21/-30

  • IP connecting cable

    If you have PoE++ ethernet hub
    LAN cable

  • SFP+(ST2110)

    compatible protocol:
    ST2110-10/-20/-21/-30
    PTP ST2059-2
    NMOS IS-04/IS-05

    Output number: video x3(Full, Crop, Monitor), Audio x2
    Input number: video x1(RETURN)
    Video format: FHD

  • AW protocol connecting cable

    LAN cable

  • Pan/Tilt Operation Speed

    Speed range:0.08 Degree /s -1800 Degree /s( Normal mode)

  • Quietness

    NC35 or less

  • Tilting Range

    -30 - 210 Degree

  • Panning range

    +/-175 Degree

  • Installation Method

    Stand-alone (Desktop) or suspended (Hanging)

  • Windows

    Windows10
    Microsoft Edge
    Google Chrome

  • Image Resolution

    3840x2160, 1920x1080, 1280x720, 640x360

  • Mac

    macOS 10.13 / Safari 13
    macOS 10.14 / Safari 13
    macOS 10.15 / Safari 13
    macOS 10.15 / Google Chrome

  • Android

    Android OS
    Google Chrome

  • Image Transmission setting (JPEG)

    Frame rate : Max 30fps
    Image quality(Fine/Normal)

  • Image Transmission Setting (H.264)

    Transmission Type : Unicast port (AUTO)
    Unicast port (MANUAL)
    Multicast port
    Transmission mode :CBR, VBR
    Frame Rate
    [60Hz]
    5fps/15fps/30fps/60fps (UHD : 30fps,60fps)
    [50Hz]
    5fps/12.5fps/25fps/50fps (UHD : 25fps,50fps)
    Max to Min Bit Rate
    2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps

  • iPhone / iPad / iPod touch

    iOS, Safari, iPadOS

  • Image Transmission Setting (H.265)

    Transmission Type : Unicast port (AUTO)
    Unicast port (MANUAL)
    Multicast port
    Transmission Mode :CBR,VBR
    Frame Rate
    [60Hz]
    30fps / 60fps
    [50Hz]
    25fps / 25fps
    Max to Min Bit Rate
    2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps

  • Audio Compression Type

    AAC-LC, 48kHz/16bit/2ch

  • Output Format

    Video Format(Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50pAudio Specification MIC1/2PCM/48khz/24bit/1ch x2

  • Output Format (High bandwidth NDI)

    4K
    2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p

    HD
    1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p,720/59.94p, 720/50p

  • Number of Output (TX)

    Video:3 line (Full x1, MONI x1.Crop x1)
    Audio:2 line
    Auxiliary data:No output

  • Number of Input (RX)

    Video:1 line(RETURN)
    Audio:No input
    Auxiliary data:No input

  • Cropping

    Select from 3 types of images from 3G/SDI_OUTPUT2, Crop_Zoom available

  • Image Stabilization

    OIS 2-axis + Hybrid method of roll direction correction
    MENU switching :select between OFF/OIS/Hybrid(Stable)/Hybrid(Pan/Tilt)

  • Power LED

    ON/OFF control

  • Tripod Screw Penetration Measures

    Yes

  • Privacy Mode

    The lens surface faces downward when standing by (ON/OFF)

  • Input Format

    Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50p

  • HDR/SDR

    HLG/BT.2020 compatible, SDR/BT.709 compatible

  • F Number Display

    Displayed on the AW-RP150 and AW-RP60 sides

  • IP menu display

    Supported

  • VR (FreeD) (IP/RS422)

    Supported

  • Yellow Tally

    Supported

  • PTP

    Supported

  • 5G/WiFi 6

    Compatible with recommended products only

  • WFM display

    Output with video superimposed from 3G/SDI_OUTPUT2

  • Return Video Output

    Output return video input from ST2110, NDI via SDI_OUT2

  • Horizontal Level Gauge

    ON/OFF control in OSD MENU

  • Wireless Remote Controller

    AW-RM50AG (Size "AA" dry battery x 2, obtained separately)

  • Supported Format

    ST2110: 10/20/21/30
    PTP: ST2059-2
    NMOS: IS-04/IS-05

  • Dimensions (W x H x D)

    Excluding protrusions, cable cover, ceiling mount bracket: 8.39 x 10.91 x 9.45" (213 x 277 x 240mm)

  • Weight

    Excluding Mount Bracket: Approx. 10.14 lbs (4.6kg)

51 Accessories for Panasonic AW-UE160 4K UHD HDMI/3G-SDI/IP Integrated 20x PTZ Camera, Black

  • All Accessories (51)
  • Flash & Lighting (51)

About Panasonic AW-UE160

The AW-UE160 4K PTZ camera features a newly developed 4K 1" MOS sensor that offers the highest sensitivity of Panasonic's entire PTZ lineup. Production teams shooting in a concert venue or a church can easily capture clear images even in the most challenging lighting conditions. Meanwhile, the UE160's new optical low pass filter reduces the effect of moire for clearer picture quality when shooting against an LED wall, which is especially important for rental and staging or worship environments. Its high-speed frame rate will help sports broadcasters capture slow motion shots in HD for replays, while seamless integration with the robotic camera system brings live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

Next Level PTZ Camera Performance
The AW-UE160 PTZ camera supports return input and high-speed shooting, which are indispensable for building a combined system with a system camera and is equipped with a tally lamp on the rear panel and two XLR channels for audio output. It is the first ever remote camera to support the SMPTE ST2110 standard1 and 5G router (USB tethering compatible), the standard for IP transmission in the broadcasting industry. The flexibility of the remote camera to freely set positions and angles and the specifications comparable to those of a system camera allow for the pursuit of unique and new video expression.

Advanced Connectivity
The AW-UE160 supports HDMI, 3G-SDI, and IP output as well as 12G-SDI output and optical fiber output. Also equipped with two XLR channels for audio input. The output method can be selected to suit the operation, making it easy to add to an existing imaging system or build a system tailored to the site.

In addition, there are no restrictions on the video output method, even when outputting from multiple terminals simultaneously, allowing simultaneous operation in 4K. For example, it is possible to set up a system that operates with three main lines (12G-SDI), one for confirmation (3G-SDI OUT1), and one for monitor display (3G-SDI OUT2).

Industry's First SMPTE ST2110 Standard Compatible PTZ Camera
The AW-UE160 is the first PTZ Camera to support the SMPTE ST2110 standard for video transmission over IP networks. By constructing an IP-based studio system in combination with the IT/IP platform "KAIROS" or AK-UC4000/AK-UCU600/AK-NP600, it is possible to improve the efficiency of your video production workflow.

Wide Range of Supported Protocols
High image quality and low latency with high bandwidth NDI support
High bandwidth NDI and high efficiency low bandwidth NDI|HX, which encode and transmit high-quality video in real time, are included. High bandwidth NDI transmits 4K video at a maximum of 250 Mbps and full HD video at a maximum of 125 Mbps, enabling high-quality, low-latency live video transmission.

SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.

Direct Broadcast via RTMP/RTMPS
RTMP/RTMPS is supported to enable direct upload of video to live-streaming services such as YouTube Live and Facebook Live. This means a live stream can be broadcast directly from the camera.

Next Generation Image Processing Engine
The AW-UE160 PTZ camera uses a new-generation image processing engine, also used in the LUMIX GH6, with improved processing power. High-pixel image data output from the 1-type (1") (effective size) MOS sensor, which offers an excellent balance between adequate depth of field, high image quality and high sensitivity, is processed at high speed to improve the S/N ratio. In terms of autofocus (AF) performance, the subject detection performance has been greatly improved through faster processing of calculations and improved AF algorithms, and highly accurate AF is achieved by discriminating between the subject's movement and characteristics. It also offers high video processing performance and enables more unique video expression with resolution performance, high sensitivity performance, and color reproduction that does not compromise your commitment to video image creation.

Phase Detection Autofocus (PDAF)
The AW-UE160 is equipped with a new AF system that combines phase detection AF (phase detection) with contrast AF (contrast detection). The PTZ camera's fast focusing speed and high focusing accuracy enable it to track subjects and capture in-focus images, whether it is continuously focusing on a moving subject or switching focus on multiple subjects.

AR / VR Positioning with FreeD Protocol
To be able to incorporate realistic VR (virtual reality) or AR (augmented reality) studio sets in your live productions, accurate camera positioning data is imperative. The AW-UE160 features the FreeD protocol, which provides you with the option to output Pan / Tilt / Zoom / Iris information via Serial (RS 422) and IP (UDP) directly from the camera to your tracking system. The FreeD protocol is supported by most popular virtual set systems, including solutions such as Brainstorm, Ross UX XPERIENCE / Xpression, The Future Group Pixotope, Vizrt Viz Virtual Studio, and Zero Density. The UE160's FreeD compliant command enables the integration of robotic camera systems into virtual studios / virtual sets without an encoder.

Moire Reduction (OLPF)
The Panasonic AW-UE160 has an integrated Optical Low Pass Filter (OLPF). This feature helps address moire, a huge challenge producers and creators are experiencing with ever-popular LED walls. Moire is the noticeable contrast between the light of the image and the darkness of the gap between LEDs. Our OLPF feature is done optically, and prevents the high frequency information from passing and smooths out the total surface area for high-quality video output.

Outstanding Low-Light Performance
The high sensitivity of F14/2000 lx allows for clear, clean images even when shooting moving subjects in dimly lit locations such as stages and live venues. The sensitivity can be set to either Normal mode or Low Light mode, depending on the shooting location and scene.

Optical Image Stabilization (OIS) & Electronic Image Stabilization (EIS)
In addition to the conventional 2-axis in-lens image stabilization (Pitch/Yaw), which is based on fine-tuning of the lens, the camera also features roll correction that uses electronic image processing technology to provide highly effective correction. Stable images with reduced blurring can be shot even in locations where special equipment such as a rail systems or camera arms are used.

Equipped with Front & Rear Tally Lamp
The AW-UE160 features an additional tally lamp on the camera rear (operator side) so that you can see the camera status from any angle. The tally lamp can be linked to the front and rear sides to set the brightness and to turn the tally indicators ON/OFF. The additional yellow tally lamp can be used for any number of applications, such as when there are a large number of cameras, when multiple cameras are used on site, or when simultaneous streaming and recording are required.

Video Return Input Function
The AW-UE160 PTZ camera can be used as a prompter for return images and manuscript displays where the performer checks the video being streamed or broadcast on the spot, allowing adjustment and shooting to the targeted angle when performing chroma key compositing or when linking with AR/VR systems.

Supports 2x High-Speed Video Output
The AW-UE160 PTZ camera captures smooth and beautiful slow-motion video by performing high-speed shooting at FHD 120 fps so not a single frame of the decisive moment is missed.

Output from HDMI output or 2 SDI OUTs (3G SDI OUT1, 3G SDI OUT2). When outputting using 2 SDI OUTs, a separate slow motion server is required.

Cropping Function
It is possible to crop-zoom and cut out video at the same time as outputting an entire video shot in 4K. The cropping position can be specified from a maximum of three locations and can be easily operated from the AW-RP150 PTZ Camera controller or web browser screen.

V-LOG Output Support
Compatible with V-LOG, which is used in Panasonic's high-end VariCam cinema cameras and LUMIX mirrorless cameras. The wide dynamic range and wide color gamut provide images suitable for color grading. When used in conjunction with our camera recorders and studio cameras equipped with V-LOG, video production with consistent image creation is possible. In addition, two settings, V-LOG and V-709, can be selected independently for each output interface. Simultaneously output 4K V-LOG video for color grading while outputting Full HD V-709 video for onsite monitoring.

HDR (HLG) Support
The camera supports HDR (High Dynamic Range) to prevent blown-out highlights and blocked-up shadows and enable picture quality close to that of the naked eye. The color balance is shifted to display according to the BT.2020 color gamut (compliant with HLG/BT.2020).

Simplified Multi-Camera Deployment & Color Matching
With the scene file function, users can save up to eight scene files containing various camera settings and copy them to multiple cameras via a PC. This massively reduces on-location setup time when shooting at events with large numbers of cameras.

Color matrix control allows sensory adjustment of color on the screen, making color matching easier. The workload for image and color matching can be reduced, which reduces the time and effort required to deploy the system and prepare for video productions.

Panasonic AW-UE160 Features

  • Uncompromising shooting performance and operability
  • Optical low-pass filter significantly reduces moire
  • Newly developed 4K Sensor offering superior sensitivity
  • Significantly improved Autofocus with advanced technology
  • SMPTE 2110 Support with purchase of additional software key

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning 4K UHD video with the Panasonic PTZ camera's detailed imagery.
  • Experience smooth pan, tilt, and zoom operations for seamless event video coverage.
  • Utilize the 20x optical zoom to get closer to the action with this Panasonic camera.
  • Enjoy flexible connectivity with HDMI, 3G-SDI, and IP outputs for diverse workflows.
  • Benefit from exceptional low-light performance, ideal for dimly lit broadcast settings.
  • Easily integrate this PTZ camera into your existing network with PoE++ support.

What's in the box:

  • Panasonic AW-UE160 4K UHD HDMI/3G-SDI/IP Integrated 20x PTZ Camera (Black)
  • Ceiling Mount Bracket
  • Cable Cover
  • Safety Wire with Screw
  • Panasonic 1 Year Limited Warranty
