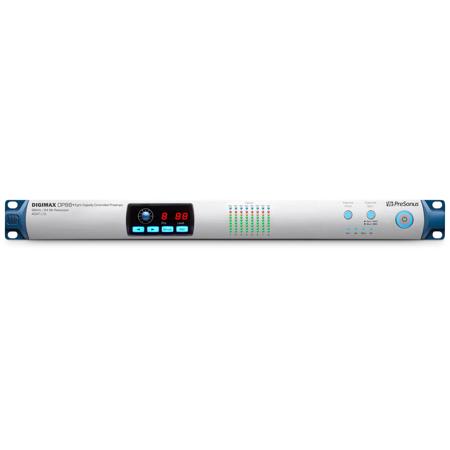

PreSonus DigiMax DP88 8-Channel A/D/A Converter with Remote Preamps

A legend remade
For more than a decade, DigiMaX-series preamp/converters have been relied on in countless recording studios worldwide. The DigiMax DP88 is the latest innovation in the DigiMax line, offering digitally controlled, analog preamps and unmatched digital conversion up to 96 kHz. Like its predecessors, the DigiMax DP88 provides the connectivity, flexibility, and professional sound quality to make it a perfect fit in any studio environment.

The DigiMax DP88 provides professional sound quality and features previously unavailable in its class:

• Flawless analog signal path with top-quality 118 dB digital conversion
• 8 digitally controlled XMAX mic preamps with individual phantom power
• Controlled from front panel and remotely via MIDI
• Controlled from UC Surface and Studio One 3 when connected to a PreSonus Studio 192
• 8 balanced, direct A/D line-level inputs (DB25)
• 8 balanced DAC outputs (DB25) to expand your interface outputs
• 8 balanced, direct outputs (DB25)
• 8 channels of ADAT optical I/O with 24-bit resolution and up to 96 kHz sampling rate
• Input metering
• External clock-source select (ADAT or BNC)
• BNC word clock I/O
• MIDI I/O

A smooth trip from analog to digital
The DigiMax DP88 is equipped with audiophile-grade, Burr-Brown processors to deliver top-quality digital conversion up to 96 kHz. These converters provide 118 dB of dynamic range and are backed by a boast-worthy clock with sub-50 picosecond jitter to capture complex musical harmonics smoothly and naturally. You'll hear every breath, transient, and detail of a performance in your recordings.

XMAX preamps, now with remote control
The DigiMax DP88 includes eight digitally controlled, analog XMAX preamps, each providing high headroom, low noise, wide dynamic range, and extended frequency response. The resulting musicality and transparency made this design an industry favorite. In 1995, PreSonus patented digital control over analog circuits for our first product. Building on this legacy, we created a separate digital volume-control circuit ahead of our award-winning analog XMAX preamp design, providing the convenience of digital recall without sacrificing fidelity.

A natural extension for the Studio 192 Studio Command Center
Although the DigiMax DP88 is the perfect companion for any audio interface with ADAT I/O (see DP88 Benefits and Compatibility Chart), it was designed to seamlessly extend the analog I/O on the PreSonus Studio 192 studio command center. When the DP88 is connected to a Studio 192 via ADAT, its eight XMAX analog preamps are fully remote-controllable from PreSonus' Studio One 3 DAW and from PreSonus UC Surface control software, extending the Studio 192 analog inputs sonically and functionally.

Easy MIDI control
While we can't provide the same level of integration with every audio interface as we can with the Studio 192, the DigiMax DP88 is equipped with MIDI I/O for easy remote control from anywhere. By using simple MIDI CC messages to control level, phantom power, and direct ADC input, the DigiMax DP88 fits into any DAW environment. Simply connect it to your MIDI interface, enable it as a MIDI device in your DAW, and start remote controlling your preamps and recalling preamp settings with your audio sessions.

Flexible I/O makes setup a snap

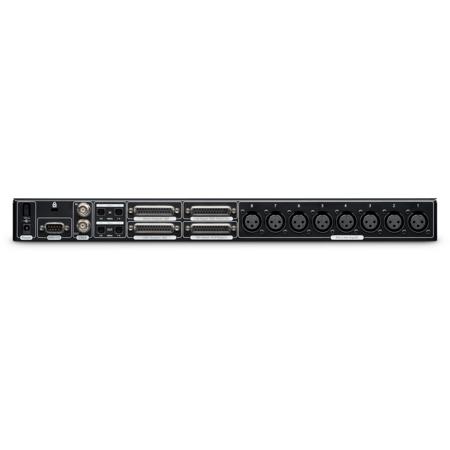

Flexible rear-panel I/O makes it easy to incorporate the DigiMax DP88 into any studio environment. Access the preamps using XLR or DB25 connections. Eight direct, analog-to-digital, line-level inputs are available on DB25 and can be accessed per channel with a front-panel button, allowing you to keep all of your gear connected at the same time. Eight balanced DAC outputs are provided via DB25 so you can expand your interface's outputs for monitor mixes or speaker switching. You also get eight balanced direct outputs on DB25 and eight channels of ADAT/dual SMUX optical I/O up to 96 kHz.

The new legend
The DigiMax DP88 provides professional sound quality and features previously unavailable in its class: Eight digitally-controlled, Class A microphone preamps; top-quality Burr-Brown converters with 118 dB of dynamic range; a boast-worthy digital clock with sub-50 picosecond jitter; and flexible connection options. Like the original DigiMax and its predecessors, the DigiMax DP88 is sure to be the new standard for eight-channel converters.

Compatibility
Whether you want to expand your analog I/O or add additional high quality remote preamps, the DigiMax DP88 is the ideal companion product for any audio interface with ADAT I/O. Check out the benefits provided by adding the DP88 to these popular interfaces.

Antelope Audio Zen Studio
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 additional high-quality remote preamps
• DP88 provides the same DB25 analog connection type as the interface

Apogee Ensemble
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 additional high-quality remote preamps
• DP88 provides the same DB25 analog output connection type as the interface

Audient iD22
• DP88 expands the analog I/O to 10 x 14
• DP88 adds 8 additional high-quality remote preamps

Focusrite Clarett 8Pre or 8Pre x
• DP88 expands the analog I/O to 16x16
• DP88 adds remote preamps to an interface that doesn't provide recall

Focusrite Saffire Pro 40
• DP88 expands the analog I/O to 16x16
• DP88 adds remote preamps to an interface that doesn't provide recall
• DP88 provides improved analog-to-digital conversion

MOTU 828x
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 more high-quality remote preamps

MOTU 1248
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 more high-quality remote preamps
• DP88 direct outputs can also be used to connect to line inputs

PreSonus AudioBox 1818VSL
• DP88 expands the analog I/O to 16x16
• DP88 adds remote preamps to an interface that doesn't provide recall
• DP88 offers improved analog-to-digital conversion

PreSonus Studio 192
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 additional high-quality remote preamps
• DP88 preamp controls are completely integrated into Studio One and UC Surface

RME Fireface UC
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 more high-quality remote preamps

RME Fireface UFX
• DP88 expands the analog I/O to 16x16
• DP88 adds additional analog outputs (only 6 + mains onboard)

Universal Audio Apollo
• DP88 expands the analog I/O to 16x16
• DP88 adds 8 high-quality remote preamps
