Review Summary
Riser Plate
PL Mount
PL Mount Shim Pack
270W AC Power Adapter Pack
10' 3-Pin XLR-to-4-Pin 2B Power Cable
RED Logo Sticker
User Manual
(Cine Lenses Not Included)
V-RAPTOR 8K S35 35.4 Megapixel CMOS
8192 x 4320
26.21 x 13.82mm (Diagonal: 29.63mm)
16.5+ stops
Motorized clear filter and precision controlled electronic ND filter
Electronic ND minimum density 2 stops, maximum density 7 stops
Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop
Interchangeable Lens Mount, Included V-RAPTOR XL PL Mount (Shimmable)
Optional V-RAPTOR XL Locking Canon EF Mount
Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control
Integrated Dual Voltage 14/26 V V-Lock battery interface
Up to 800 MB/s using RED branded or other qualified CFexpress media cards
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
REDCODE HQ:
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 96 fps
4096 x 2160 up to 240 fps
2048 x 1080 up to 480 fps
REDCODE MQ:
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 160 fps
4096 x 2160 up to 240 fps
2048 x 1080 up to 480 fps
REDCODE LQ:
8192 x 4320 up to 120 fps
6144 x 3240 up to 160 fps
4096 x 2160 up to 240 fps
2048 x 1080 up to 480 fps
REDCODE RAW:
8192 x 4320 up to 120 fps
7168 x 3780 up to 140 fps
6144 x 3240 up to 160 fps
5120 x 2700 up to 192 fps
4096 x 2160 up to 240 fps
3072 x 1620 up to 320 fps
2048 x 1080 up to 480 fps
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.
Aluminum Alloy
19.5-34 V via 4-pin 2B DC-IN
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
0% to 85% non-condensing
Image Processing Pipeline 2 (IPP2)
Supports 33 x 33 x 33 3D LUTs
Supports import of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
Phase Detect and Contrast
Manual Focus Only
Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Wired control via USB-C (compatible USB-C to Ethernet adapter required) or Gigabit Ethernet allowing remote camera control, live MJPEG preview video feed and remote media offload
9-Pin 0B GIG-E (1000BASE-T)
4-Pin 00B CTRL (RS-232)
Regulated 12 V Outputs
2x P-TAP Connectors (3AMP Combined)
1x Rear 2-Pin 0B (3 AMP)
1x Rear 2-Pin 0B (1.5 AMP)
1x Front 2-Pin 0B (1 AMP)
Regulated 24 V Connectors
2x Front 3-Pin Fischer (3 AMP Combined)
Proprietary Top Accessory Port for Monitoring and Control
3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3)
1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF)
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
DSMC3 RED Touch 7.0" LCD
IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet.
Integrated 2.4" LCD for camera control (no preview video)
Tri-Level Genlock through BNC
Linear Timecode (LTC) through 5-Pin 0B
PTP through 9-Pin 0B GIG-E
Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)
Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet.
Single Slot: CFexpress Type B (CFast 2.0)
3x BNC (12G-SDI) Output
1x BNC (3G-SDI) Monitor Output
1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" (3.5mm) TRS Stereo Headphone Output
1x XLR 4-Pin (19.5 to 34VDC) Input
2x D-Tap Output
3x LEMO 2-Pin Output
2x Fischer 3-Pin Output
1x USB-C Control/Data/Video
1x 9-Pin (Gigabit Ethernet) Control/Data Input/Output
1x LEMO 4-Pin (RS-232) Control
3x 1/4"-20 Female (Bottom)
3x 3/8"-16 Female (Bottom)
16x 1/4"-20 Female
Optional, included
Lithium ion
Non-universal
4
8.5 x 6.5 x 6" (21.59 x 16.51 x 15.24cm)
7.99 lbs (3.624kg)
270 W
11.5 to 32 VDC
3-Pin XLR
Aluminum Alloy
1920 x 1200
322 pixels per inch (ppi)
60 Hz
25 ms
1250:1
1300 cd/sq. m
10 bit
100% DCI-P3
+/- 160 Degree all axes
Landscape, 180 Degree rotation
Projected Capacitive (pCap), multi-touch
Power and Communication via RMC cable
15mm Rail
4x M3 Mounting Points
4 Buttons Function 1,2,3 & 4
Max 18.3W
0 Degree C to 38 Degree C (32 Degree F to 104 Degree F)
-18 Degree C to 49 Degree C (-0 Degree F to 120 Degree F)
0% to 85%, non-condensing
0% to 85%, non-condensing
Compatible with camera firmware V1.1 or later
Monitor: 4.67 x 7.09 x 1.13" (118.7 x 180.1 x 28.8mm)
Arm: 1.18 x 2.4 x 0.7" (30 x 61 x 17.5mm)
RED Monitor Interface: 1.67 x 4.25 x 1.51" (42.5 x 108 x 38.23mm)
Monitor: Approx. 20 oz (568g)
Arm: Approx. 1 oz (30.1g)
RED Monitor Interface: Approx. 4.4 oz (126g)
DSMC3 Touch 7" LCD Monitor
DSMC3 Touch 7" LCD Monitor
V-RAPTOR 8K up to 800 MB/s
14 Degree F to 158 Degree F (-10 Degree C to 70 Degree C)
-4 Degree F to 185 Degree F (-20 Degree C to 85 Degree C)
5% to 95%, non-condensing
50 G @ 10-2000Hz
15 G
RED PRO CFexpress 2TB: 2048480824832 bytes
Approx. 1.52 x 1.17 x 0.15" (38.5 x 29.6 x 3.8mm)
Approx. 0.24 oz (7g)
CFexpress Type B
USB Bus-Power
USB Type-C Male [USB 3.2 Gen 2x2 (20 Gb/s)]
Approx. 3.74 x 2.56 x 0.47" (95 x 65 x 12mm)
Approx. 4.23 oz (120g)
DSMC, DSMC2, RED RANGER and KOMODO camera
Gold-Mount
Rechargeable Dual Voltage Lithium-Ion Battery
14.4 V / 28.8 V
10,800 mAH / 156Wh
12A @ 28v, 24A @ 14v
50 Degree to 113 Degree F (10 Degree to 45 Degree C)
32 Degree to 104 Degree F (0 Degree to 40 Degree C)
68 Degree to 122 Degree F (20 Degree to 50 Degree C)
RED Compact Dual V-Lock Charger
4.65 x 3.54 x 2.99" (118 x 90 x 76mm)
Approx. 2.35 lbs (1.06kg)
Gold Mount
100V-240VAC 50/60Hz
One Battery 3A, Two Batteries 1.5A
32 Degree F-104 Degree F (0 Degree C-40 Degree C)
68 Degree F-122 Degree F (20 Degree C-50 Degree C)
REDVOLT MICRO-G, Standard Gold Mount Batteries
4.5 x 5.5 x 3" (114.3 x 139.7 x 76.2mm)
Approx. 1 lbs (453.6g)
Aluminum and Rubber
Via 5-Pin Audio Port
2x 3-Pin XLR (Female)
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
Adapter: 1.31 x 2.54 x 1.70" (33.15 x 64.50 x 43.16mm)
Right Angle Bracket: 1.10 x 0.87 x 1.10" (28 x 22 x 28mm)
Adapter with Bracket: 7.92 oz (224.81g)
Aluminum & Bocote Hardwood
2x 1/4-20 Captive Mounting Screws plus optional rear 1/4-20 support arm when used with V-RAPTOR Tactical Top Plate
Run/Stop
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
2.36 x 6.28 x 2.63" (60 x 159.5 x 66.8mm)
Approx. 8.67 oz (245.93g)
V-RAPTOR XL Camera
7075 Aluminum
Via 4x Integrated Top 1/4-20 Threads
32 Degree to 104 Degree F (0 Degree to 40 Degree C)
-4 Degree to 122 Degree F (-20 Degree to 50 Degree C)
0.79 x 1.37 x 4.43" (20 x 34.8 x 112.6mm)
Approx. 2.97 oz (84.29g)
V-RAPTOR XL Camera
7075 Aluminum
Via 2x Integrated 1/4-20 Threads and optionally 2x M4 threads on V-RAPTOR XL Riser Plate
32 Degree to 104 Degree F (0 Degree to 40 Degree C)
-4 Degree to 122 Degree F (-20 Degree to 50 Degree C)
0.79 x 1.37 x 4.43" (20 x 34.8 x 112.6mm)
Approx. 3.07 oz (87.07g)
V-RAPTOR XL Camera
7075 Aluminum
2x 3/8-16 Captive Mounting Screws
Standard 15mm Studio
Multiple 1/4-20 and 3/8-16 points
32 Degree to 104 Degree F (0 Degree to 40 Degree C)
-4 Degree to 122 Degree F (-20 Degree to 50 Degree C)
5.39 x 4.26 x 0.36" (136.78 x 108.25 x 9.10mm)
Approx. 5.66 oz (160.49g)
810016943624
V-Raptor 8K S35 is a compact and powerful system, fully functional in its smallest form or ready to be built out for any style of production. With the release of the RED V-Raptor S35, you can now accommodate Super 35mm lenses and capture full 8K resolution — even at 8K 120fps. It also comes with 16.5+ stops of dynamic range, an integrated control display, and 4K 12G-SDI outputs. Cinematographers, production companies, rental houses, and independent filmmakers will appreciate the V-Raptor S35’s advanced capabilities. Adding this camera to your gear will prove to be a future- proof investment for years to come.
A small & versatile form factor that can accomodate small run & fun shooting styles as well as rigged up on a larger production.
With an array of in comprehensive, easy to use controls, in-camera format selection, full button customization & status updates, all in a user friendly display.
Operate V-Raptor remotely with wireless connectivity via the free Red Control app, available on iOS & Android.

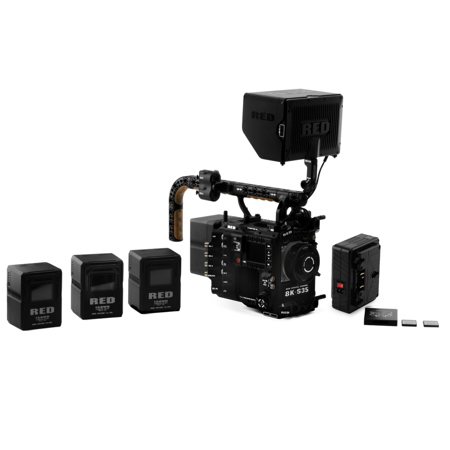

Overwhelm your senses with the high-quality, professional-grade V-RAPTOR XL 8K S35 Cinema Camera Production Pack, PL, Gold Mount. This advanced and durable camera system is an innovative expansion of the most powerful and advanced Red camera platform ever. Designed to support high-end television, motion picture productions, and professional projects, the V-RAPTOR XL is an all-in-one solution for large-scale productions.
The V-RAPTOR XL offers optimized lens coverage with two sensor options, allowing filmmakers to choose the sensor format that best suits their shooting style and lens choices. It supports a wide range of lenses, from FUJINON 25-1000 F2.8 Zoom to Canon Cine-Servo 50-1000mm T5.0-8.9 PL Wildlife Zooms, and many more. This camera system offers the widest lens selection at the highest resolution, capturing smooth and faithful character from classic cinema lenses to broadcast zooms.
The V-RAPTOR XL features an all-new electronic ND system, providing unprecedented precision controls for no-compromise exposure management. It also boasts the most flexible and robust power and I/O ecosystem available in the market today, supporting 4K and HD SDI monitoring, discreet LUT management, and intuitively placed power outputs.
Offering the widest power source compatibility of any comparable cinema camera, the V-RAPTOR XL can utilize 24-34V high-voltage batteries with multiple auxiliary power outputs, or standard 12V-16V batteries when auxiliary power is not needed. It is available in both industry-standard v-lock and gold mount bodies, providing maximum flexibility.
The V-RAPTOR XL also features in-camera AI processing and on-sensor enhanced phase detect autofocus, offering versatility and confidence for users. It provides multiple camera side solutions for filmmakers to confidently enter the quickly evolving worlds of virtual and remote production without compromising on image quality or camera system performance.
The V-RAPTOR XL uses standardized and high-performance media to ensure the best reliability and performance possible. It can be operated remotely with wireless connectivity via the free red control app, available now for iOS and android devices.
The V-RAPTOR XL 8K S35 Cinema Camera Production Pack, PL, Gold Mount is designed for filmmakers, videographers, and other professionals in the film industry who demand the best in their equipment. It is a testament to the power of innovation and the relentless pursuit of quality.
