Review Summary
Canon RF
V-RAPTOR XE 8K VV 35.4MP Global Shutter CMOS
8192 x 4320
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
17+ stops
Integrated locking RF mount with electronic communication
Supports /i PL lenses with RED RF to PL Adapters
Supports Canon EF Adapter with communication and other adapters based on the RF mount
Up to 800 MB/s using RED branded or other qualified CFexpress media cards
60fps at 8K 17:9, 75 fps at 8K 2.4:1
70 fps at 7K 17:9, 87 fps at 7K 2.4:1
80 fps at 6K 17:9, 100 fps at 6K 2.4:1
96 fps at 5K 17:9, 120 fps at 5K 2.4:1
120 fps at 4K 17:9, 150 fps at 4K 2.4:1
160 fps at 3K 17:9, 200 fps at 3K 2.4:1
240 fps at 2K 17:9, 300 fps at 2K 2.4:1
Redcode HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
Redcode HQ, MQ, LQ, and ELQ at 6K 17:9 up to 80 fps
Redcode HQ, MQ, LQ, and ELQ at 4K 17:9 up to 120 fps
Redcode HQ, MQ, LQ, and ELQ at 2K 17:9 up to 240 fps
8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9, 2:1, 2.4:1, 16:9, 1:1
4K 17:9, 2:1, 2.4:1, 16:9, 1:1
3K 17:9, 2:1, 2.4:1, 16:9, 1:1
2K 17:9, 2:1, 2.4:1, 16:9, 1:1
Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.
CFexpress Type B
11-17 V via 6-Pin DC-IN
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
0% to 85% non-condensing
Image Processing Pipeline 2 (IPP2)
Supports 33 x33 x33 3D LUTs
Supports import and adjustment of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
Phase Detect with Face Detection
Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload
Compatible with optional RED Connect license for live 8K R3D video over USB-C to Ethernet adapter
Proprietary Top Accessory Port for Monitoring and Control
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
DSMC3 RED Touch 7" (17.7cm) LCD
RED Compact EVF with DSMC3 Adapter A
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)
Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
Access full camera controls and live preview from iOS or Android devices
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location
Standard app available from the Apple App Store and Google Play Store.
Red Control Pro available via Apple App store only and requires additional purchase.
Red Control works wirelessly or wired via USB-C
Aluminum Alloy
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
optional, not included
lithium ion
non-universal
1
5.9 x 4.5 x 4.3" (149.63 x 115.5 x 108mm)
4.03 lbs (1.83kg) (without body cap and CFexpress card)

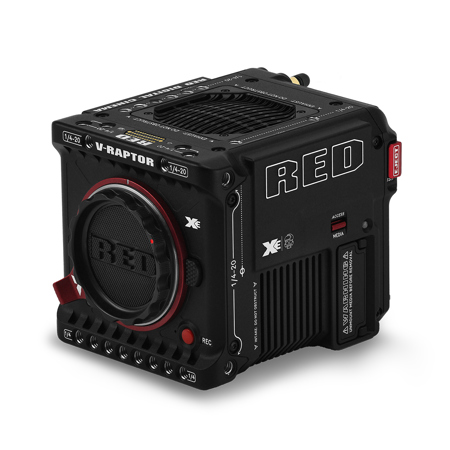

V-RAPTOR XE is built with the core features for modern filmmakers and supercharged with RED’s flagship image quality.

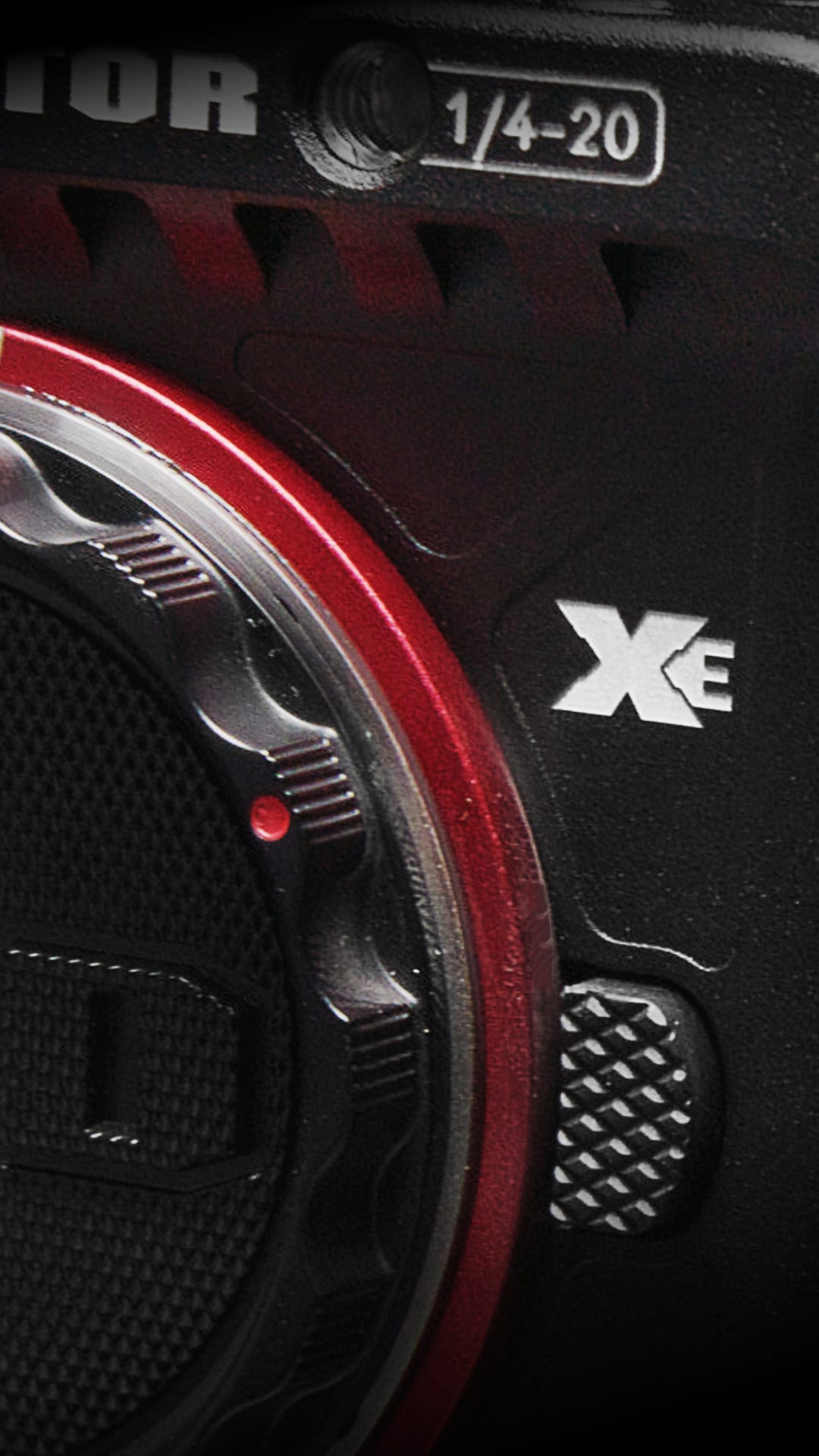

V-RAPTOR XE RF Mount brings the uncompromised image quality of RED's flagship large format global shutter sensor to a whole new segment of filmmakers. Leveraging the V-RAPTOR (X) platform, V-RAPTOR XE includes the essential features for modern filmmaking, including R3D recording at 8K VV 60P, 4K 120P, and 2K 240P.

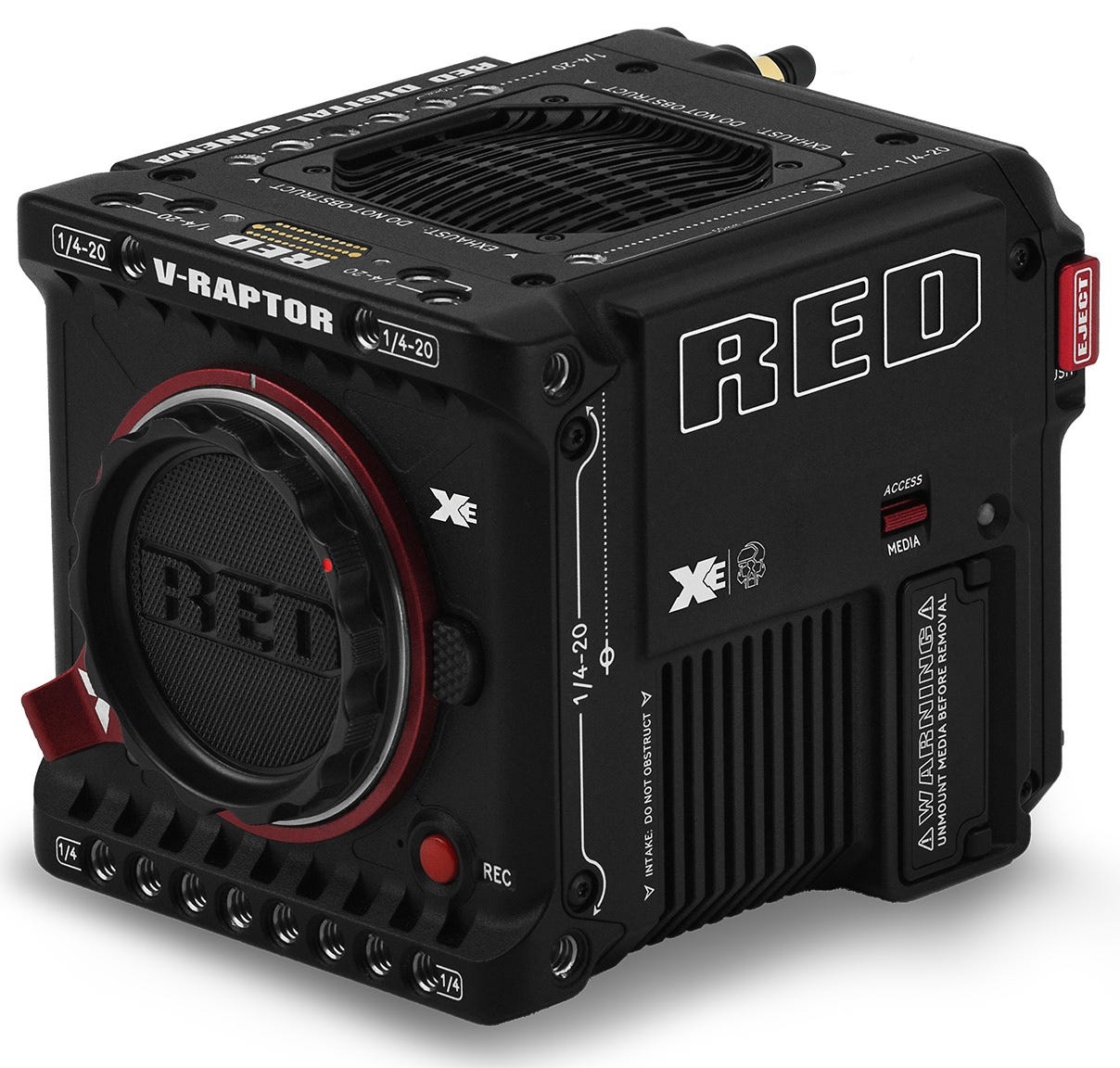

V-RAPTOR XE features 2x 12G SDI's capable of unique monitoring views, a locking Canon RF style lens mount for secure and flexible lens selection, CFexpress Type B media for up to 800MB/s recording, as well as pre-record and simultaneous proxy record capabilities.
V-RAPTOR XE offers the next level in image quality, I/O, and workflow to filmmakers looking to expand on the features of KOMODO-X. The 8K VV sensor has over 50% more pixels and overall size when compared to KOMODO-X's 6K S35, resulting in more creative control over depth of field, stabilization, and detail capture. Along with a tightly managed thermal system, V-RAPTOR XE offers best in class lowlight performance and post-latitude when paired with the R3D recording format.
V-RAPTOR XE features the same in-camera cloud upload integration with Frame.io or AWS, as well as compatibility with RED Control and RED Control Pro via wireless or wired configuration for complete remote control in any environment.
