Shure QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, H50: 534-598MHz

SKU: SHXD1484H5K MFR: QLXD14/84-H50 K
Earn VIP Reward Points

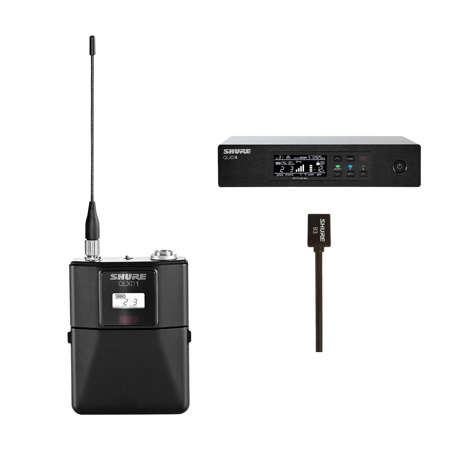

PACKAGE INCLUDES:

  • Shure QLXD1 Digital Wireless Bodypack Transmitter H50: 534-598MHz
    Shure QLXD1 Digital Wireless Bodypack Transmitter H50: 534-598MHz
  • +
  • Shure QLXD4 Half-Rack Digital Wireless Receiver H50: 534-598MHz
    Shure QLXD4 Half-Rack Digital Wireless Receiver H50: 534-598MHz
  • +
  • Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 6' Cable, Black
    Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 6' Cable, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture crystal-clear audio with this Shure wireless lavalier microphone system for presentations.
  • Enjoy exceptional sound quality and reliability with the included WL184 supercardioid microphone.
  • Experience freedom with a 330' range, perfect for dynamic performances and recording sessions.
  • This digital wireless microphone system operates in the H50 band (534-598 MHz) for clear signal.
  • The QLXD1 bodypack transmitter offers up to 9 hours of battery life, ensuring long-lasting use.
  • Easily rackmount the QLXD4 receiver; hardware included for seamless integration into your setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure QLXD14/84 Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    2560

  • Included Transmitters

    1xBodypack

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    H50: 534-598MHz

  • RF Bandwidth

    64 MHz

  • Frequency Step Size

    25 kHz

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Network I/O

    1xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • Housing

    Aluminum

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Audio Input Level

    8.5 dBV / 7.5 V p-p

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.6 x 3.4 x 0.9" (65 x 86 x 23mm)

  • Weight

    4.9oz (138g) (without Batteries)

Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Supercardioid

  • Frequency Range

    50 Hz to 17 kHz

  • Maximum SPL

    129.5 dB SPL

  • Impedance

    1800 Ohms

  • Sensitivity

    -44.5 dBV/Pa

  • Dynamic Range

    102.5 dB

  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female Unbalanced (Locking)

  • Cable Length

    3.94' (1.2m)

  • Operating Voltage

    1.5 to 10 V

  • UPC Codes

    042406346689, 042406341141, 042406053136

About Shure QLXD14/84

A comprehensive solution for professional audio needs, the QLXD14/84 Digital Wireless Microphone System with WL184 Lavalier Microphone, H50: 534-598MHz, is designed to deliver exceptional sound quality and robust wireless functionality. This system is ideal for mid-sized events, business installations, hotels, government offices with conferencing spaces, educational institutions, houses of worship, and live performance venues.

The QLXD1 Bodypack Transmitter, a key component of this system, offers transparent 24-bit digital audio quality and efficient RF spectrum usage. It's designed for wireless vocals and instruments in various presentation spaces, music venues, and religious establishments. The QLXD1 is user-friendly, syncing swiftly with a wireless receiver over IR at the push of a button and maintaining a clear, uninterrupted signal over its entire 100m (330 ft.) range. Its all-metal construction ensures durability, while a wide selection of compatible microphone choices offer the legendary Shure sound signatures.

The QLXD4 Digital Wireless Receiver, another integral part of this system, combines professional features with streamlined setup and operation. It offers automatic channel scanning, networked channel scanning, digital predictive switching, and AES 256 encryption for secure transmission. The QLXD4 delivers transparent 24-bit digital audio quality and efficient RF spectrum usage. Its automatic scanning quickly finds open frequencies, and one-touch IR sync deploys them to transmitters swiftly.

The WL184 Supercardioid TQG Lavalier Microphone, included in this system, is a premium wireless supercardioid condenser microphone designed for speech applications. It's recommended for sound reinforcement applications that require high rejection of ambient noise and a narrow pickup angle. The WL184 features a 1.2-meter (4 ft.) cable terminated with a miniature 4-pin mini connector and includes a rotatable tie clip for placement flexibility.

In summary, the QLXD14/84 Digital Wireless Microphone System with WL184 Lavalier Microphone, H50: 534-598MHz, is a comprehensive audio solution that combines professional features, ease of use, and exceptional sound quality. Whether you're hosting a mid-sized event, setting up a business conference, or performing live, this system ensures a reliable and high-quality audio experience.

Shure QLXD14/84 Features

  • 4-Pin male mini connector (TA4M) for QLXD1 Bodypack Transmitter
  • QLXD1 bodypack transmitter is ideal for wireless vocals and instruments
  • 24-Bit digital audio quality
  • WL184 is a supercardioid lavalier microphone with a 115 degree pickup angle
  • Backlit LCD with easy to navigate menu and controls
  • AES 256-bit encryption for secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio with this Shure wireless lavalier microphone system for presentations.
  • Enjoy exceptional sound quality and reliability with the included WL184 supercardioid microphone.
  • Experience freedom with a 330' range, perfect for dynamic performances and recording sessions.
  • This digital wireless microphone system operates in the H50 band (534-598 MHz) for clear signal.
  • The QLXD1 bodypack transmitter offers up to 9 hours of battery life, ensuring long-lasting use.
  • Easily rackmount the QLXD4 receiver; hardware included for seamless integration into your setup.

What's in the box:

  • QLXD4 Digital Wireless Receiver
  • QLXD1 Digital Wireless Bodypack Transmitter
  • WL93 Omni Lavalier Condenser Microphone w/TA4F Connector (Black)
  • Mounting Hardware
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Ethernet Cable (3')
  • PS24US Power Supply for Select Wireless Receivers
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
