Digital UHF
2560
1xBodypack
Antenna Diversity
V50: 174-216MHz
64 MHz
25 kHz
330' (100.6m)
60
48 kHz / 24-Bit
< 2.9 ms
120 dB
AES 256
Proprietary
Tabletop
Rackmount (with Included Hardware)
1 RU (1/2 Rack)
2x1/2 Wave External, Detachable (Rear-Mount)
1
1xXLR 3-Pin Male Balanced Output
1x1/4" TRS Female Balanced Output
-18 to +42 dB (1 dB Steps)
30 dB
XLR Output: +18 dBV (Line Level)
XLR Output: -12 dBV (Mic Level)
1/4" Output: +12 dBV (Instrument Level)
On 1/4", XLR Output
1xRJ45 (10/100 Mb/s)
DHCP, Manual IP
XLR Output: 100 Ohms (Balanced)
1/4" Output: 100 Ohms (Balanced)
1/4" Output: 50 Ohms (Unbalanced)
>70 dB
Rejection: >80 dB
AC/DC Power Adapter
12 VDC at 0.4 A, Center-Positive (Included)
100 to 240 VAC, 50 / 60 Hz at 150 mA
1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1xLED (Sync)
1xLED (Peak)
Metal
0 to 122 Degree F (-18 to 50 Degree C)
7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)
1.7lbs (777g) (without Antenna)
Bodypack
Aluminum
1 / 10 mW
1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
8.5 dBV / 7.5 V p-p
0 to 21 dB (3 dB Steps)
20 Hz to 20 kHz
IR
1x1/4 Wave
Battery
1xBacklit LCD (Channel, Group, RF Output Power)
2xAA (Included)
1xShure SB900A (Not Included, Replaceable)
9 Hours (Alkaline)
Required, included
Alkaline
AA
2
2.6 x 3.4 x 0.9" (65 x 86 x 23mm)
4.9oz (138g) (without Batteries)
Lavalier
Mono
Electret Condenser
Supercardioid
50 Hz to 17 kHz
129.5 dB SPL
1800 Ohms
-44.5 dBV/Pa
102.5 dB
1 xTA4F/Mini-XLR 4-Pin Female Unbalanced (Locking)
3.94' (1.2m)
1.5 to 10 V
042406463096, 042406463348, 042406053136

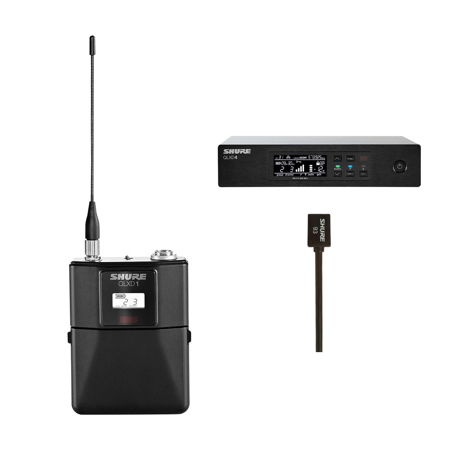

Discover the QLXD14/84 Digital Wireless Microphone System with WL184 Lavalier Microphone, V50: 174-216MHz, a sophisticated blend of professional-grade features and user-friendly operation. This system is designed to deliver superior wireless functionality, making it an ideal choice for mid-sized events, business installations, hotels, government offices with conferencing spaces, educational institutions, houses of worship, and live performance venues.
The QLXD1 Bodypack Transmitter, a key component of this system, offers transparent 24-bit digital audio quality and highly efficient RF spectrum usage. This makes it perfect for wireless vocals and instruments in various settings, from presentation spaces to music venues and houses of worship. The QLXD1 is designed for ease of use, syncing swiftly with a wireless receiver over IR at the push of a button and maintaining a clear, uninterrupted signal over its entire 100m (330ft.) range. Its all-metal construction guarantees durability, while a wide selection of compatible microphone choices ensures the legendary Shure sound signatures.
The QLXD4 Digital Wireless Receiver, another integral part of this system, combines professional features with streamlined setup and operation. It offers Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption for secure transmission. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver ensures a solid RF connection and secure wireless transmission.
The WL184 Supercardioid TQG Lavalier Microphone, a premium wireless supercardioid condenser lavalier mic, is recommended for sound reinforcement applications requiring high rejection of ambient noise and a narrow pickup angle. The WL184 is a supercardioid lavalier microphone with a 115-degree pickup angle and a 1.2-meter (4 ft.) cable terminated with a miniature 4-pin mini connector. It features CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitters.
Experience the wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum with the QLXD14/84 Digital Wireless Microphone System with WL184 Lavalier Microphone, V50: 174-216MHz. Its interchangeable cartridges provide an optimal choice for each application, and the rotatable tie-clip pivots in 90-degree increments for placement flexibility. The supplied snap-fit foam windscreen controls breath noise and stays on securely, and the supplied dual tie clip holds two microphones for dual miking applications.
