Tannoy 5" Full Range Ceiling Loudspeaker, Blind Mount, White, Pair
See all Tannoy items

Tannoy 5" Full Range Ceiling Loudspeaker with ICT Driver for Installation Applications Blind Mount White (Pair)

SKU: TANS503ICTBM

This item is no longer available.

Recommended Alternatives

Tannoy CVS: Picture 1 regular
Tannoy CVS 401 4" Coaxial In-Ceiling Loudspeaker, 120W Peak Power, White, Pair
$109.00
Tannoy CVS: Picture 1 regular
Tannoy CVS 401 4" Coaxial In-Ceiling Loudspeaker, 120W Peak Power, Black, Pair
$109.00
Tannoy CVS: Picture 1 regular
Tannoy CVS 801 8" Coaxial In-Ceiling Loudspeaker, 360W Peak Power, White, Pair
$185.00$179.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Tannoy CMS503ICTBM Specifications

Performance

Performance

Jump to...

  • Frequency response (-3 dB)

    85 Hz - 22 kHz BM Backcan

  • Frequency range (-10 dB)

    74 Hz - 24 kHz BM Backcan

  • System sensitivity (1 W at 1 m)

    89 dB (1 W = 4 V for 16 Ohms)

  • Nominal Coverage Angle

    90 degrees conical

  • Coverage Angle (1 kHz to 6 kHz)

    105 degrees

  • Directivity Factor (Q)

    5.6 averaged 1 kHz to 6 kHz

  • Directivity Index (DI)

    7.0 averaged 1 kHz to 6 kHz

  • Power Handling

    Average: 50 W
    Programme: 100 W
    Peak: 200 W

  • Recommended Amplifier Power

    100 W at 16 Ohms

  • Nominal Impedance (Lo, Z)

    16 Ohms

  • Rated maximum SPL

    Average: 106 dB
    Peak: 112 dB

  • Transformer Taps via front rotary switch

    70 V: 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / 3.75 W (1320 Ohms) / OFF & low impedance operation
    100 V: 30 W (330 Ohms) / 15 W (660 Ohms) / 7.5 W (1320 Ohms) / OFF & low impedance operation

  • Crossover

    7 kHz inductively coupled

Transducers

Jump to...

  • Low Frequency

    130 mm (5.00") mineral loaded polypropylene

  • High Frequency

    ICT aluminum dome

Physical

Jump to...

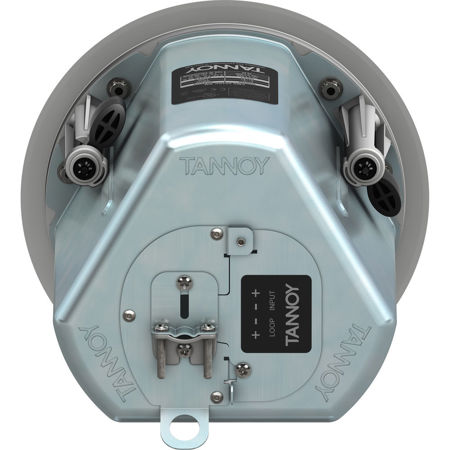

  • Backcan Enclosure

    Zinc plated steel

  • Baffle

    Reflex loaded UL 94V-0 rated ABS

  • Grille

    Steel, with weather resistant coating

  • Safety Features

    Safety ring located at rear of enclosure for load bearing safety bond

  • Clamping Design

    Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36")
    Recommended clamp torque: 1.5 Nm

  • Backcan Options

    Complete with fixed backcan

  • Cable Entry Options

    Cable clamp & squeeze connector for conduit up to 22 mm

  • Conduit Knockouts on PI Backcan

    3 Sets of horizontal positions 19 / 22 / 28 mm (0.75" / 0.87" / 1.10")

  • Connectors

    Removable locking connector with screw terminals with "loop through" facility

  • Compliance

    UL-1480, UL-2043, CE

  • Bezel diameter

    205.9mm (8.11")

  • Front of ceiling to rear of backcan

    188.5mm (7.42")

  • Front of ceiling to top of safety loop

    205.8mm (8.10")

  • Hole cutout diameter

    190mm (7.48")

  • Weight

    3.95kg (8.70 lbs)

Other

Jump to...

  • UPC Code

    748252162748

About Tannoy CMS503ICTBM

The CMS 503ICT BM is a wide bandwidth 200-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT BM delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability - and are ideal for constant-usage applications.

Optimized for Installation
Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, CMS 503ICT BM features an acoustically enhanced zinc plated steel back can with removable locking screw terminal connector and loop-thru functionality. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes and plaster (mud) ring are available separately.

LAB GRUPPEN Ready
The CMS 503ICT BM is finished in semi matt white and optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.

Tannoy CMS503ICTBM Features

  • Full range ceiling loudspeaker for installation applications
  • 50 Watts continuous, 200 Watts peak power
  • 5" ICT (Inductive Coupling Technology) point source driver for extended frequency range
  • Blind Mount version supplied with acoustically enhanced zinc plated steel back can
  • Integrated single unit construction for ease of installation
  • High durability design for constant heavy usage in demanding applications
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Optimized for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable magnetic grille for custom painting
  • Optional ARCO designer grilles available for minimal architectural impact
  • Self-aligning 3 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included
  • 10-Year Warranty Program
  • Designed and engineered in the U.K

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 2x Tannoy 5 " Full Range Ceiling Loudspeaker with ICT Driver
  • C-Ring
  • Tile-Bridge Kit
  • Paint Mask
  • Cut-Out Template
  • Grille
  • Tannoy 10 Year Warranty
