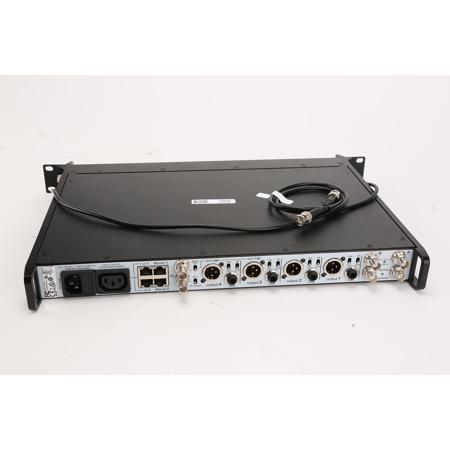

Used Shure AD4Q Quad-Channel Digital Wireless Receiver

SKU: US1623378

This item is no longer available.

Recommended Items

Shure AD4Q: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver without Accessories, A: 470 to 636MHz
$9,351.00$7,481.00
Shure AD4Q with Power: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver with Power & RF Accessories, A: 470 to 636MHz
$9,841.00$7,873.00
Shure ADX2/K8: Picture 1 regular
Shure ADX2/K8 Digital Handheld Wireless Tx w/KSM8 Capsule, K54: 606-663MHz,Black
$3,321.00$2,657.00
Shure ADX2/K9: Picture 1 regular
Shure ADX2/K9 Digital Handheld Wireless Tx with KSM9, G57: 470-616MHz, Nickel
$3,476.00$2,781.00
Shure P9RA+: Picture 1 regular
Shure P9RA+ Rechargeable Wireless Bodypack Receiver, G7: 506 to 542MHz
$1,092.00$749.00
Shure : Picture 1 regular
Shure P10R+ Wireless Diversity Bodypack Receiver
$1,264.00$1,011.00
Shure AD2 + KSM8: Picture 1 regular
Shure AD2 Wireless Handheld Transmitter, KSM8 Mic Head, X55: 941-960MHz, Black
$1,989.00$1,591.00
Shure : Picture 1 regular
Shure P9RA+ Wireless Diversity Bodypack Receiver
$1,092.00$749.00
Shure ADX2/K8: Picture 1 regular
Shure ADX2/K8 Digital Handheld Wireless Tx w/KSM8 Capsule, X55: 941-960MHz,Black
$3,321.00$2,657.00
Shure AD2 + KSM9: Picture 1 regular
Shure AD2 Wireless Handheld Transmitter, KSM9 Mic Head, X55: 941-960MHz, Black
$2,342.00$1,873.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure AD4Q + Accessories Specifications

Audio Output

Audio Output

Jump to...

  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Configuration

    1/4" (6.35mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance (Typical, XLR Line out)

    100Ohms

  • Full Scale Output (200 kOhms load)

    1/4" (6.35mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    Yes

Networking

Jump to...

  • Network Interface

    10/100 Mbps, 1 Gbps, Dante Digital Audio

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Ethernet Cable Length

    100m (328')

Cascade output

Jump to...

  • Connector Type

    BNC

  • Configuration

    Unbalanced, passive

  • Impedance

    50 Ohms

  • Insertion Loss

    0 dB, typical

RF Input

Jump to...

  • Spurious Rejection

    >80 dB, typical

  • Connector Type

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage

    12-13.5 V DC, 150 mA maximum, per antenna, switchable on/off

General

Jump to...

  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60Hz; 0.68 A max.

  • Thermal Dissipation

    Maximum: 31 W (106 BTU/hr)
    Idle: 21 W (72 BTU/hr)

  • Protection Modes

    Overvoltage, Under voltage, Reverse Polarity

  • 4-Pin XLR

    Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive

  • Dimensions (HxWxD)

    1.7 x 19.0 x 13.1" (4.32 x 48.26 x 33.27cm)

  • Weight

    10.6 lbs (4.81kg) without antennas

About Shure AD4Q Quad-Channel Digital Wireless Receiver - SKU#1623378

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio. The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante output and signal routing options bring a new level of management and flexibility to your entire workflow. Compatible with all AD series and ADX series transmitters.

Shure AD4Q Quad-Channel Digital Wireless Receiver - SKU#1623378 Features

  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench software and ShurePlus Channels iOS app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante or AES67 digital output
  • Switchable XLR and AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure AD4Q Quad-Channel Digital Wireless Receiver
  • 2x SDI Cables
  • Item Note: Missing Rackmount Kit; Locking Power; Jumper Cables
