Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder - (100 Hours) SKU#1919362

Picture does not represent the actual item
See what's in the box

See all Panasonic items

Used Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder, 3x 1/4.7" 2.19MP MOS Sensors, 12x Zoom Lens 29.8 to 357.6mm, 3.5" Touchscreen LCD Monitor

SKU: US1919362

This item is no longer available.

Recommended Items

Panasonic AG-CX370: Picture 1 regular
Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI|HX2 and Auto-Tracking
$5,130.00
Panasonic AG-CX20: Picture 1 regular
Panasonic AG-CX20 4K Ultra HD Compact Professional Camcorder, Black
$3,050.00
Panasonic AG-CX350: Picture 1 regular
Panasonic AG-CX350 4K Camcorder
$4,760.00
Panasonic AG-HMC80: Picture 1 regular
Panasonic AG-HMC80 3MOS AVCCAM HD Camcorder - (1441 Hours) SKU#1933333
$470.00$441.00
Panasonic : Picture 1 regular
Panasonic AG-HPX371E "PAL" Series P2 HD Camcorder - BODY ONLY SKU#1505479
$449.00$390.00
Panasonic : Picture 1 regular
Panasonic AG-HMC70P "PAL" Shoulder Mounted Camcorder - SKU#1436843
$134.00$119.00
Panasonic : Picture 1 regular
Panasonic AG-HMC70P AVCHD "PAL" Shoulder Mounted Camcorder - SKU#1589451
$145.00$129.00
Panasonic : Picture 1 regular
Panasonic AG-HPX371E P2HD Camcorder (Body Only)
$513.00$456.00
Panasonic AG-HPX370: Picture 1 regular
Panasonic AG-HPX370 Series P2 HD Camcorder, 1/3" 2.2MP 3-MOS Sensors, 1920x1080 Resolution, 2/3" Lens Compatibility (NO LENS) (13687 Hours)
$489.00
Panasonic : Picture 1 regular
Panasonic AG-HPX170 1/3" 3 CCD P2 HD Handheld Camcorder - 2792 Hours SKU#1946134
$619.00$600.00
Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-08-02T20:46:46

Rated 5 out of 5

Little camera with a BIG punch

Very sharp image. Smooth variable zoom speed. Excellent image stabilization. Dual cards can function as backup or relay. Focus peaking in red. XLR with phantom power. Clean gain. This camera competes with others costing much more. Lots to like about this little lightweight camera. My only complaints are it has a great integrated Neutral density but it isn't strong enough for bright outdoors so you either have to up the shutter or add an external ND in order to keep the iris where it needs to be for a super sharp image. I also wish it had a longer zoom, but 12X is sufficient for most applications. The izoom is useful as well as the still images which can be taken while recording video. The AC90A is an underrated winner!

James C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Panasonic AG-AC90A Specifications

  • Pickup Devices

    1/4.7 type 3MOS image sensor

  • Lens

    Auto Iris optical zoom (Full range AF)
    F value (focal length):
    F1.5 to F2.8 (Focal length; 2.84 mm to 34.1 mm)
    35 mm equivalent:
    Motion picture/Still picture; 29.8 mm to 383.7 mm (16:9)
    Minimum focus distance:
    Approx. 3.5 cm (1.4 inches) (Wide)
    Approx. 1.2 m (3.9 feet) (Tele)

  • Filter Diameter

    49 mm

  • Zoom

    12x optical zoom, 25x i.Zoom, 2x/5x/10x digital zoom

  • Shutter Speed

    60i/60p/50p:
    1/30 sec. to 1/2000 sec. (auto slow shutter ON)
    1/60 sec. to 1/2000 sec. (auto slow shutter OFF)
    24p:
    1/24 sec. to 1/2000 sec. (auto slow shutter ON)
    1/50 sec. to 1/2000 sec. (auto slow shutter OFF)
    at motion picture recording, manual mode

  • Image Stabilizer

    Optical (hybrid optical image stabilizer, active mode)

  • Minimum Illumination

    Approx. 3 lx (iA mode, shutter speed with auto slow shutter ON)

  • Recording Format:

    AVCHD version 2.0 compliant, AVCHD Progressive

  • Motion Picture Compression:

    MPEG-4 AVC/H.264

  • Audio Compression:

    Dolby Digital (5.1ch/2 ch)

  • Recording Mode:

    Please see the table below.

  • Still Picture Recording Format:

    JPEG corresponding (Design rule for Camera File system, based on Exif 2.2 standard)

  • Recording Media:

    SD Memory Card, SDHC Memory Card, SDXC Memory Card

  • AV Multi Output

    Component video output level:
    Y: 1.0 V [p-p], 75Ohms
    PB: 0.7 V [p-p], 75Ohms
    PR: 0.7 V [p-p], 75Ohms
    AV video output level:
    1.0 V [p-p], 75Ohms

  • HDMI Output(Video)

    HDMI 1080p/1080i/720p/480p

  • LINE

    2 ch (AV Multi terminal)

  • HDMI Output (Audio)

    Dolby Digital/Linear PCM

  • Headphones Output

    3.5 mm stereo mini jack

  • XLR Input

    XLR (3 pin) x 2 (INPUT1/INPUT2),
    LINE: 0 dBu
    MIC: -50/-60 dBu (switch with the menu)

  • Microphone

    5.1 ch surround microphone, (with a zoom/focus microphone function)/stereo microphone

  • USB

    ReadReader function (No copyright protection support) Hi-Speed USB (USB 2.0), USB terminal Type Mini B

  • Camera Remote

    2.5 mm diameter, super mini jack x 1 (ZOOM, REC S/S), 3.5 mm diameter, mini jack x 1 (FOCUS, IRIS)

  • Monitor

    8.8 cm ( 3.5 inches) wide LCD monitor (Approx. 1152 K dots)

  • Viewfinder

    0.61 cm (0.24 inches) wide EVF (Approx. 263 K dots)

  • Power Consumption

    12.9 W

  • Operating Temperature

    0deg.C to 40deg.C (32deg.F to 104deg.F)

  • Operating Humidity

    10% to 80% (no condensation)

  • Dimensions (W x H x D)

    6.31 x 7.68 x 13.06" (16.02 x 19.50 x 33.17cm)

  • Weight

    Main Unit: 3.30lbs (1.49kg)
    With Battery and An SD Card: 3.90lbs (1.76kg)

Related Articles & Videos

NAB 2015: Day 3

NAB 2015: Day 3

This is my first year at the NAB Show and it?s even more than I expected. Everyone is here. We?re all demo-ing new gear and gadgets, giving awards and drawing prizes. It?s an exciting and really fun show. And I found even more very cool products to share with you: Panasonic is a name we all know,...

Read more

About Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder - (100 Hours) SKU#1919362

FEATURED REVIEWS

Little camera with a BIG punch

By James C.

Very sharp image. Smooth variable zoom speed. Excellent image stabilization. Dual cards can function as backup or relay. Focus peaking in red. XLR with phantom power. Clean gain. This camera competes with others costing much more. Lots to like about this little lightweight camera. My only complaints are it has a great integrated Neutral density but it isn't strong enough for bright outdoors so you either have to up the shutter or add an external ND in order to keep the iris where it nee...

View full Review

Featuring a stylish, easy-to-operate design, the Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder captures native 1920 x 1080 resolution images and records in 1080/60p, 60i, 30p and 24p, as well as in standard definition (480/60i) in 60Hz. The AG-AC90A offers significant improvements over its predecessor, the AG-AC90, including two new recording options -- a PM mode (1280x720, 8Mbps) supporting sports analysis applications and a CS mode (720x480, 3.5Mbps) for cloud service utilization.

Other AC90A enhancements comprise the ability to copy content from one SD card to another, a date and time superimpose function ideal for law enforcement and legal depositions, Freeze Frame (still picture) on video out during shooting position change, Eye-Fi wireless SD card support, a Variable White Balance function, additional marker displays and a Digital Range Stretch (DRS) On/Off user button.

High powered 29.8mm Wide-Angle Zoom Lens
The AC90A offers a high-powered 12x zoom lens includes a 29.8 mm (35 mm equivalent) wide-angle setting. When using the Intelligent 25x digital zoom, it achieves up to 25x seamless zooming. In addition, it also features a 2x, 5x and 10x digital zoom function. Panasonic's unique Nano Surface Coating minimizes ghosts and flaring and a high speed, F1.5 brightness enables extremely clear image rendering. Its built-in 5-axis Hybrid OIS (Optical Image Stabilizer) ensures stable handheld shooting.

High-Sensitivity BSI Type 3MOS Sensors
The AC90A features three (RGB) backside illumination corresponding 1/4.7 type MOS image sensors with an effective pixel count of 2,190,000 pixels to capture exceptional HD images and superb color reproduction even in dimly lit locations. The image processing circuit, which is tuned for professional use, produces highly natural gradation and sharp detail.

Easy Operation with Triple Manual Rings
The AC90A's lens barrel is equipped with manual rings for focus, zoom and iris operation to enable speedy, intuitive camera work generally associated with interchangeable lenses. The 3.5" tough-panel LCD monitor, which stores easily inside the top front part of the handle, has approximately 1,152,000 dots resolution to enhance focusing and includes focus assist, zebra and color bar display functions. The LCD monitor rotates 270 degrees for easy low-angle, high-angle and self-interview shootings.

Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder - (100 Hours) SKU#1919362 Features

  • Professional AVCHD Modes; PS mode for Full-HD (1920 x 1080) and progressive (60p/50p) image acquisition, high quality PH mode, PM mode (1280x720) for sportscoaching use and CS mode (720x480) for network transmission applications.
  • HD/SD Multi-Formats; 1080/60p, 60i, 30p, 24p, 480/60i
  • Dual SD Card Slots (support SDXC/SDHC/SD Memory Cards). With two SD cards, a camera operator can select backup recording. slot-to-slot SD card contents copy is possible.
  • Still shots with 3-megapixel resolution. (Still shots can also be captured during video recording.)
  • 2 channel XLR audio inputs (MIC/LINE/+48V selectable).
  • Audio CH1/CH2 with individual level controls and input selection.
  • HDMI output, AV Multi output (D-connector, composite video and audio 2 channel), USB connector.
  • Remote terminals enable remote operation of iris, focus, zoom and Rec Start/Stop functions.
  • The upper part of the handle grip contains both the Rec Start/Stop button and azoom speed control (three speed steps) for the lens.
  • Freeze frame function for preventing unwanted images from being captured and displayed on an external monitor.
  • Date & time stamp superimpose.
  • White balance adjustment; selectable from ATW/3200K/5600K/Manual (2 values) or user setting (2400K-9900K, 100K step).
  • Included a long life 5,400 mAh battery enables approximate 6 hours of continuous shooting in PH mode.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

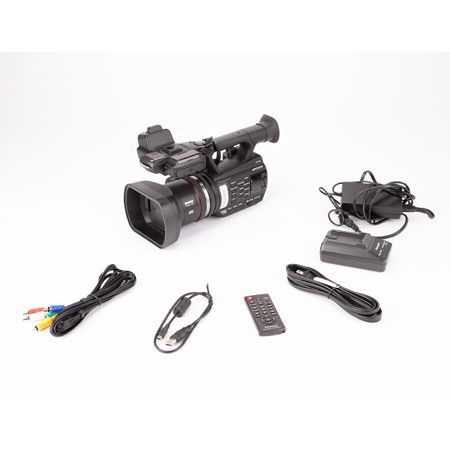

What's in the box:

  • Panasonic AG-AC90A AVCCAM Handheld Camcorder
  • Battery Pack
  • Battery Charger
  • AC Adaptor
  • 2x AC Cable
  • Eye Cup
  • Remote Control
  • USB Cable
  • AV Multi Cable
  • Lens Cap
  • Shoulder Strap
  • 2x Input Terminal Cap
  • Microphone Holder Adaptor
  • Item Note: Missing CD-ROM; Microphone Holder; Microphone Holder Screws
