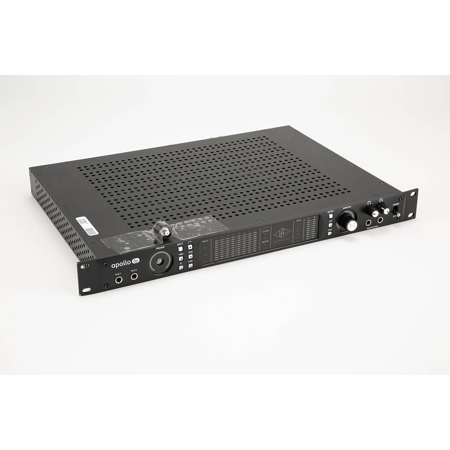

I/O Complement: Microphone Inputs
I/O Complement: Impedance Instrument I/P
I/O Complement: Analog Line Inputs
I/O Complement: Analog Line Outputs
6 (eight including monitor outputs)
I/O Complement: Analog Monitor Outputs
I/O Complement: Headphone Outputs
I/O Complement: Digital Input Port
1 (ADAT or S/PDIF, selectable) (TOSLINK optical)
I/O Complement: Digital Output Port
1 (ADAT or S/PDIF, selectable) (TOSLINK optical)
I/O Complement: Thunderbolt 2 Ports
2 (Thunderbolt 1 compatible)
I/O Complement: Word Clock
A/D - D/A: Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
A/D - D/A: Bit Depth Per Sample
A/D - D/A: Simultaneous A/D Conversion
A/D - D/A: Simultaneous D/A Conversion
A/D - D/A: Analog Round-Trip Latency
1.1 milliseconds at 96kHz sample rate
1.1 milliseconds at 96kHz sample rate (with four serial UAD-2 plug-ins via Console application)
Frequency Response
Microphone I/P (1-8): Connector Type
XLR Female, pin 2 positive (Combo XLR/TRS)
Microphone I/P (1-8): Phantom Power
+48V (switchable per mic input)
Microphone I/P (1-8): Dynamic Range
Microphone I/P (1-8): SNR
Microphone I/P (1-8): THD + Noise
Microphone I/P (1-8): Equivalent Noise
Microphone I/P (1-8): CMRR
Microphone I/P (1-8): Default Impedance
5.4KOhms (variable via Unison plug-ins)
Microphone I/P (1-8): Gain Range
Microphone I/P (1-8): Pad Attenuation
20dB (switchable per input)
Microphone I/P (1-8): Maximum I/P Level
+25dBu (minimum gain, pad engaged)
Hi-Z I/P (1-2): Connector Type
1/4" Female TS Unbalanced
Hi-Z I/P (1-2): Dynamic Range
Hi-Z I/P (1-2): Signal-to-Noise Ratio
Hi-Z I/P (1-2): THD + Noise
Hi-Z I/P (1-2): Input Impedance
1MOhms (variable via Unison plug-ins)
Hi-Z I/P (1-2): Gain Range
Hi-Z I/P (1-2): Maximum Input Level
Line I/P (1-8): Connector Type
1/4" Female TRS Balanced (Combo XLR/TRS)
Line I/P (1-8): Dynamic Range
Line I/P (1-8): Signal-to-Noise Ratio
Line I/P (1-8): THD + Noise
Line I/P (1-8): CMRR
Line I/P (1-8): Input Impedance
Line I/P (1-8): Gain Range
+10dB to +65dB (Line Input Gain = ON)
Line I/P (1-8): Reference Level
+4dBu (Line Input Gain = BYPASS)
Line I/P (1-8): Maximum Input Level
Monitor O/P (1-6): Connector Type
Monitor O/P (1-6): Dynamic Range
Monitor O/P (1-6): Signal-to-Noise Ratio
Monitor O/P (1-6): THD + Noise
Monitor O/P (1-6): Stereo Level Balance
Monitor O/P (1-6): Output Impedance
Monitor O/P (1-6): Maximum Output Level
Monitor O/P Left & Right: Connector Type
Monitor O/P Left & Right: Dynamic Range
Monitor O/P Left & Right: SNR
Monitor O/P Left & Right: THD + Noise
Monitor O/P Left & Right: Stereo Balance
Monitor O/P Left & Right: O/P Impedance
Monitor O/P Left & Right: Max. O/P Level
Stereo Headphone O/P (1-2): Connector
Stereo Headphone O/P (1-2):Dynamic Range
Stereo Headphone O/P (1-2): SNR
Stereo Headphone O/P (1-2): THD + Noise
Stereo Headphone O/P (1-2): O/P Power
160mW into 300Ohms load (Maximum)
S/PDIF: Connector Type
Optical TOSLINK JIS F05 (shared with ADAT)
S/PDIF: Format
S/PDIF: Supported Sample Rates (kHz)
ADAT: Connector Type
Optical TOSLINK JIS F05 (shared with S/PDIF)
ADAT: Format
ADAT Digital Lightpipe with S/MUX
ADAT: Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
ADAT: Channel Assignments
Port 1 = Channels 1 - 8, Port 2 = 1 - 8 (mirrored) at 44.1kHz, 48kHz
Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8 at 88.2kHz, 96kHz
Port 1 = Channels 1 - 2, Port 2 = Channels 3 - 4 at 176.4kHz, 192kHz
Word Clock: Connector Type
Word Clock: Lock Range
+/-0.5% of any supported sample rate
Word Clock: Input Termination
Synchronization Sources
Internal, Word Clock, S/PDIF, ADAT
Power Supplies
External AC to DC Power Supply, Level V compliant
AC Input Connector Type
AC Requirements
100V - 240V AC, 50 - 60Hz
DC Connector Type
XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
DC Requirements
Maximum Power Consumption
System Requirements
Thunderbolt Systems (UAD Powered Plug-Ins version 8):
Apple Mac computer with available Thunderbolt or Thunderbolt 2 port
Mac OS X 10.8.5 Mountain Lion, 10.9.x Mavericks, or 10.10.x Yosemite
4 gigabytes available disk space
Internet connection to download software and authorize UAD plug-ins
Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host DAW software
Thunderbolt cable (sold separately)
Dimensions (W x H)
19 x 1.75" / 482.6 x 44.45mm
Depth:
Chassis Only: 12.12" / 307.85mm
Including Knob & Jack Protrusions: 13.5" / 342.9mm
Weight
9.1lbs / 4.13kg (bare unit)
