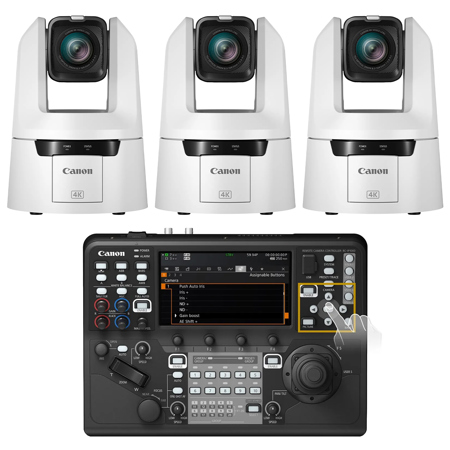

Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White with RC-IP100 Remote Camera Controller

SKU: CACRN500WA MFR: 4839C027 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White
    Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White

    Qty: 3

  • +
  • Canon RC-IP100 Remote Camera Controller
    Canon RC-IP100 Remote Camera Controller
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture stunning detail with 4K UltraHD resolution, perfect for professional broadcasts and events.
  • Experience exceptional clarity even in dim environments thanks to advanced low-light performance.
  • Achieve versatile shots with 15x optical zoom and smooth pan/tilt movements for dynamic coverage.
  • Simplify your setup with Power over Ethernet (PoE+) connectivity, reducing cable clutter and installation time.
  • Effortlessly control your camera remotely with the included RC-IP100, enhancing operational flexibility.
  • Save your favorite camera positions with up to 100 presets, ensuring quick and accurate scene recall.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White Specifications

Camera
  • Color

    Titanium White

  • Image Sensor

    Type 1.0 (1.0 in.) single-plate CMOS sensor
    Total pixels: approx. 13.40 megapixels
    Effective pixels: approx. 8.29 megapixels (3840 x 2160)

  • Lens

    f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm
    35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)

  • Zoom

    Digital: 20x
    Optical: 15x

  • Lens Configuration

    18 elements in 14 groups (including 2 aspheric elements)

  • Minimum Focusing Distance

    1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range

  • Angle of View

    Horizontal: 73.0 (W) - 5.7 Degree (T)
    Vertical: 45.2 Degree (W) - 3.2 Degree (T)

  • Shutter Speed

    1/3 - 1/2000 sec. (specific values depend on the frame frequency and frame rate

  • Iris

    Manual/Automatic aperture

  • Gain

    -6.0 db - 33.0 db

  • ND Filter

    Built-in (Off, 1/4, 1/16, 1/64), motor operated

  • White Balance

    AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K - 15,000 K), Manual

  • Focus

    Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
    AF type: Dual Pixel CMOS AF, Contrast AF

  • Gamma

    Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3

  • Image Stabilizer

    Optical-shift

  • Min. Subject Illumination

    3840 x 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB)
    1920 x1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)

  • Pan and Tilt

    Pan operation range: Horizontal +/-170 Degree
    Pan operation speed: 0.1 Degree - 100 Degree /sec.
    Tilt operation range: Vertical -30 Degree - +90 Degree
    Tilt operation speed: 0.1 Degree - 100 Degree /sec.

Video Output Format

Jump to...
  • SDI

    1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)

  • HDMI

    3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
    1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
    1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)

  • IP

    3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
    1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
    1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
    640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)

  • Number of Presets

    Max. 100 (including home position)

Interface

Jump to...
  • Communication Control

    LAN, Wi-Fi, Serial, IR

  • Network Terminal

    LAN x 1, RJ45, 1000Base-T

  • 3G-SDI OUT Terminal

    BNC jack (output only) x 1, 0.8 Vp-p/75 Ohm, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)

  • GEN-LOCK Terminal

    BNC jack x 1, 1.0 Vp-p/75 Ohm, input only

  • HDMI OUT Terminal

    HDMI connector x 1, output only

  • RS-422 Terminal

    RJ45 connector x 1

  • Input 1 / Input 2 Terminals

    INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
    Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB
    Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm)

  • Mic Terminal

    3.5 mm stereo mini jack (unbalanced, plug-in power supported)
    Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)

  • USB Terminal

    Type-A (USB 2.0) x 1

  • Media Slot

    microSD card slot x 1 (future expansion, recording unavailable)

Environment

Jump to...
  • Operating Environment

    Temperature: +32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)
    Humidity: 10% to 90% (without condensation)

  • Storage Environment

    Temperature: +32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)
    Humidity: 10% to 90% (without condensation)

  • Power Supply

    PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) - PoE cannot be used
    External power source: 24 V DC (using included AC adapter)

  • Power Consumption

    PoE+ Input: Approx. 16.2 W max. (body only)
    DC Input: Approx. 18.6 W max. (body only)

Controllers

Jump to...
  • Supported Controllers

    Hardware: RC-IP100
    Software: Remote Camera Control Application

General

Jump to...
  • Dimensions (W x H x D)

    Approx. 7.87 x 10.59 x 8.19" (200 x 269 x 208mm) (excluding protrusions)

  • Weight

    Approx. 9.04 lbs (4.1kg) (body only)

  • UPC Codes

    192223295476 | 013803382808 | 013803345261

13 Accessories for Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White with RC-IP100 Remote Camera Controller

  • All Accessories (13)
  • Controllers (2)
  • Wall Mounts (2)
  • Video Switching & Distribution (1)
  • Cables & Adapters (4)
  • Subscription & License (2)
  • Signal Converters (2)

About Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White

Because capturing high-quality, professional-grade footage is essential in various industries such as Broadcasting, Education, Corporate, Events, and House of Worship, the Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, in a sleek Titanium White finish, is designed to deliver exceptional results. This PTZ camera is engineered with a 1" CMOS sensor and a DIGIC DV 6 image processor, a powerful combination that ensures stunning 4K UHD video acquisition, precise Dual Pixel CMOS AF, and effective image stabilization.

The CR-N500's 1.0-inch 4K UHD CMOS image sensor is capable of capturing 4K UHD video at 30p and up to 60fps in Full HD, making it an excellent choice for remote and unobtrusive capture of professional productions. Its larger sensor allows for larger photosites, resulting in less noise in low-light situations and a beautiful bokeh effect with blurred backgrounds in images.

The camera's DIGIC DV 6 imaging engine ensures high sensitivity and low noise performance, yielding amazing imagery in a variety of shooting conditions. Its Dual Pixel CMOS AF technology uses a CMOS sensor that combines imaging and phase-difference AF functions for smooth and quick focusing, even during zooming, panning, or tilting.

The CR-N500 also features a Dual Pixel Focus Guide, which displays focus assist information on the screen, simplifying the focusing process when shooting in 4K UHD. Its Face Detection & Tracking feature can track the face of a subject within a frame, allowing the operator to focus on composition while the camera handles focus.

Equipped with a 15x optical zoom lens, the CR-N500 offers a wide viewing angle of 73 degrees (horizontal), capable of capturing extensive scenes in tight shooting spaces. It also features a built-in ND filter mechanism that allows the user to select from three densities: 1/4, 1/16, and 1/64, enabling rich video expression by controlling aperture values.

The CR-N500 supports Canon Log 3 and Wide DR Gamma for natural and realistic-looking images that faithfully represent the scene at hand. It also offers six preset image modes to choose from, each containing specific gamma, color space, and color matrix parameters.

For easy integration into IP streaming systems, the CR-N500 is equipped with an RJ-45 interface purposed for IP communication, supporting high-resolution videos for distribution. It also supports multiple protocols that can be utilized for video, audio, and control.

In summary, the Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera is a versatile and powerful tool, designed to deliver high-quality, professional-grade footage in a variety of settings and lighting conditions.

Canon CR-N500 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White Features

  • 1" CMOS Sensor with Dual-Pixel AF
  • HDMI, 3G-SDI & IP Video Output
  • Built-In ND Filters: 1/4, 1/16, 1/64
  • Canon DIG!C DV6 Processor, 1.5 Lux
  • Works with Canon Control Software
  • Capture up to UHD 4K30 / 1080p60 Video
  • Built-In NDI|HX Support, 15x Zoom, PoE+
  • Genlock, Dual XLR & 3.5 Audio Input

Key Features

  • Capture stunning detail with 4K UltraHD resolution, perfect for professional broadcasts and events.
  • Experience exceptional clarity even in dim environments thanks to advanced low-light performance.
  • Achieve versatile shots with 15x optical zoom and smooth pan/tilt movements for dynamic coverage.
  • Simplify your setup with Power over Ethernet (PoE+) connectivity, reducing cable clutter and installation time.
  • Effortlessly control your camera remotely with the included RC-IP100, enhancing operational flexibility.
  • Save your favorite camera positions with up to 100 presets, ensuring quick and accurate scene recall.

What's in the box:

  • Canon Camera Body (Titanium White)
  • Mounting Plate with Screw
  • Safety Wire
  • Safety Wire with Screw
  • AC Adapter
  • AC Cable
  • Infrared Remote Controller with Battery
  • Installation Guide
  • Canon 3 Year Limited Warranty
