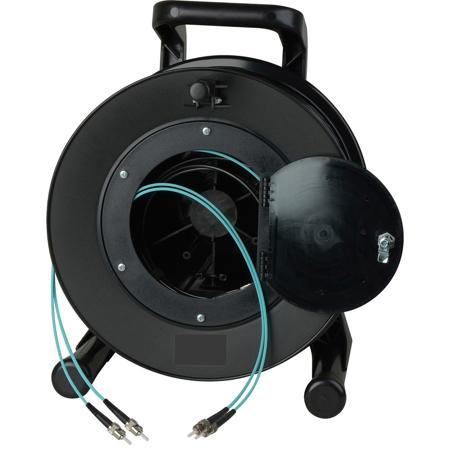

Camplex 2-Channel ST Multimode Aqua OM3 Fiber Optic Tactical Snake Reel with ST Connector, 500'

SKU: CP2STM30500 MFR: HF-TR02STM3-0500
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 500' OM3 fiber optic tactical snake reel.
  • Rugged polyurethane jacket offers superior durability for demanding field applications.
  • ST connectors provide secure, machine-polished UPC connections for optimal performance.
  • This 2-channel fiber optic cable supports Gigabit Ethernet up to 1969' at 1310 nm.
  • Experience minimal signal loss with less than 1.5 dB/km attenuation at 1310 nm.
  • Withstand extreme conditions: -67 to 185°F operating temperature for any environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex ST Multimode Aqua OM3 Specifications

  • Cable Type

    2-channel, fiber optic, tactical, round
    Polyurethane jacket, 36" (94cm) aqua fanouts

  • Fiber Type

    OM3 50 um multimode

  • Connectors

    2x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2,000 cycles

  • Return Loss

    Less than -55 dB typical

  • Gigabit Ethernet Max Distance

    1969' (600m) at 1310 nm

  • Attenuation

    Less than 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 Degree F (-55 to 85 Degree C)

  • Storage Temperature

    -94 to 185 Degree F (-70 to 85 Degree C)

  • Length

    500' (152.4m)

About Camplex ST Multimode Aqua OM3

Extremely Rugged & Lightweight OM3 Multimode Tactical Fiber Snakes Designed for Broadcast & Pro-Audio Applications!
Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. All assemblies multi-stage machine polished and tested for less than-55dB RL with test results for each channel supplied with each cable. Built in-house at the state-of-the-art LEMO trained fiber shop with full repair services available. Note: The Tactical Fiber Snake Reel INCLUDE broadcast fiber optic cable reels with connector protection cavity and hinged latching door. Each reel has been carefully selected to ensure proper support and critical bend radius required by fiber optic cables. Camplex recommends tactical fiber optic cables over 25' be stored on a cable reel.

• Fanouts are color coded with Aqua or Blue to indicate OM3 Laser Enhanced Fiber Type 10G Ethernet compatible.
• The cable features an extremely strong, lightweight, rugged tight-buffered cable for commercial, broadcast and military applications.
• Suitable for Broadcast, Industrial, Mining and Petrochemical environments.
• Crush resistant and resilient with a thick layer of aramid strength members.
• Polyurethane jacket for abrasion, cut and chemical resistance.

Camplex ST Multimode Aqua OM3 Features

  • Built in the Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
  • Individual Ruggedized 36-Inch Fanouts Color coded with Aqua or Blue to indicate OM3 Laser Enhanced Fiber Type 10G Ethernet Compatibility
  • Compact, round cable design for ease of transportation and deployment
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Meets & Exceeds MIL-PRF-85045 Specifications

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 500' OM3 fiber optic tactical snake reel.
  • Rugged polyurethane jacket offers superior durability for demanding field applications.
  • ST connectors provide secure, machine-polished UPC connections for optimal performance.
  • This 2-channel fiber optic cable supports Gigabit Ethernet up to 1969' at 1310 nm.
  • Experience minimal signal loss with less than 1.5 dB/km attenuation at 1310 nm.
  • Withstand extreme conditions: -67 to 185°F operating temperature for any environment.

What's in the box:

  • Camplex 2-Channel Multimode Aqua OM3 Fiber Optic Tactical Snake Reel with ST Connector
  • Diagnostics Documentation
  • Set of Dust Caps
  • Camplex 1 Year Limited Warranty
