Camplex 2-Channel ST Multimode Aqua OM3 Fiber Optic Tactical Snake Reel with ST Connector, 750'

SKU: CP2STM30750 MFR: HF-TR02STM3-0750
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 750' fiber optic tactical snake reel.
  • Experience high performance with OM3 multimode fiber for fast connections.
  • Rugged tactical cable design offers crush and impact resistance for durability.
  • ST connectors provide secure connectivity for professional audio/video setups.
  • Enjoy broad compatibility with gigabit Ethernet at distances up to 1969 feet.
  • This Camplex fiber reel offers a strong warranty, ensuring peace of mind.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex ST Multimode Aqua OM3 Specifications

  • Cable Type

    2-channel, fiber optic, tactical, round
    Polyurethane jacket, 36" (94cm) aqua fanouts

  • Fiber Type

    OM3 50 um multimode

  • Connectors

    2x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2,000 cycles

  • Return Loss

    Less than -55 dB typical

  • Gigabit Ethernet Max Distance

    1969' (600m) at 1310 nm

  • Attenuation

    Less than 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 Degree F (-55 to 85 Degree C)

  • Storage Temperature

    -94 to 185 Degree F (-70 to 85 Degree C)

  • Length

    750' (228.6m)

About Camplex ST Multimode Aqua OM3

From the bustling floors of live broadcast events to the demanding environments of pro-audio production, the Camplex 2-Channel ST Multimode Aqua OM3 Fiber Optic Tactical Snake Reel is engineered to deliver unparalleled performance. This 750 ft tactical fiber optic snake is not only durable and sturdy but also features innovative design elements tailored for high-quality fiber optic networking.

Crafted with the needs of field production and outside broadcast in mind, this ruggedized multi-channel fiber optic cable is built to endure multiple deployments. Its highly flexible tight-buffered tactical cables are reinforced with internal aramid strength members, offering exceptional crush resistance in high-traffic areas when handled with care. The robust polyurethane outer sheath is meticulously designed to resist crushing by heavy equipment, including military tanks and outside broadcast vehicles, ensuring reliable performance in even the most challenging conditions.

Each assembly undergoes a rigorous multi-stage machine polishing process and is tested for optimal return loss of less than -55dB, with individual test results provided for each channel to guarantee the integrity and quality of your connection. Manufactured in-house at a state-of-the-art LEMO trained fiber shop, Camplex offers full repair services, ensuring your equipment remains in top condition.

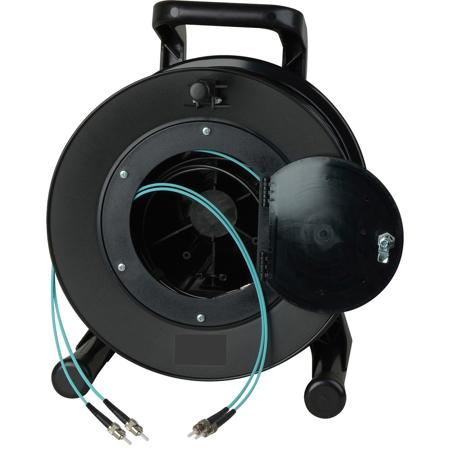

The Tactical Fiber Snake Reel comes equipped with broadcast fiber optic cable reels that feature a connector protection cavity and a hinged latching door, meticulously chosen to provide the necessary support and maintain the critical bend radius required by fiber optic cables. For optimal care, Camplex advises that tactical fiber optic cables exceeding 25 feet in length should be stored on a cable reel.

Fanouts are color-coded in Aqua or Blue, signifying the OM3 Laser Enhanced Fiber Type, which is compatible with 10G Ethernet, making it suitable for a wide range of applications including broadcast, industrial, mining, and petrochemical environments. The cable's construction is not only crush-resistant but also resilient, with a thick layer of aramid strength members, and the polyurethane jacket offers superior protection against abrasion, cuts, and chemical damage.

Choose the Camplex 2-Channel ST Multimode Aqua OM3 Fiber Optic Tactical Snake Reel for a reliable, high-performance solution that stands up to the rigors of professional use.

Camplex ST Multimode Aqua OM3 Features

  • Built in the Fiber Shop with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
  • Individual Ruggedized 36-Inch Fanouts Color coded with Aqua or Blue to indicate OM3 Laser Enhanced Fiber Type 10G Ethernet Compatibility
  • Compact, round cable design for ease of transportation and deployment
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Meets & Exceeds MIL-PRF-85045 Specifications

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 750' fiber optic tactical snake reel.
  • Experience high performance with OM3 multimode fiber for fast connections.
  • Rugged tactical cable design offers crush and impact resistance for durability.
  • ST connectors provide secure connectivity for professional audio/video setups.
  • Enjoy broad compatibility with gigabit Ethernet at distances up to 1969 feet.
  • This Camplex fiber reel offers a strong warranty, ensuring peace of mind.

What's in the box:

  • Camplex 2-Channel Multimode Aqua OM3 Fiber Optic Tactical Snake Reel with ST Connector
  • Diagnostics Documentation
  • Set of Dust Caps
  • Camplex 1 Year Limited Warranty
