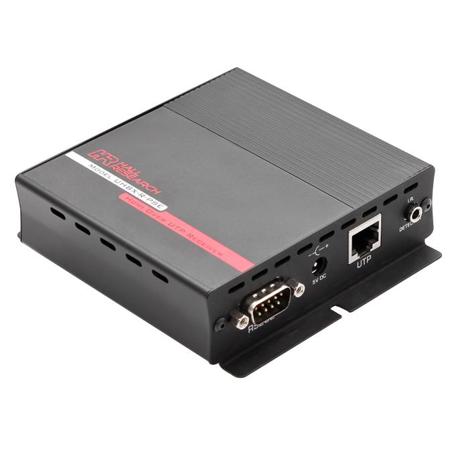

Hall Research UHBX-R-PSE HDMI+RS232+IR+PoH UTP Receiver with Power Supply (PSE)

SKU: HRUHBXRPSE MFR: UHBX-R-PSE
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 330ft with this reliable HDMI over UTP receiver, ensuring optimal video quality.
  • Enjoy real-time streaming with low latency using this video format converter for seamless presentations.
  • This HDMI receiver supports up to 4K resolution, providing stunning visuals for your home theater setup.
  • With easy setup, this video format converter is perfect for quickly integrating new displays into existing systems.
  • Control your devices remotely using the built-in RS232 and IR pass-through features of this converter.
  • Power your receiver conveniently with Power-over-HDBaseT (PoH), simplifying installation and cable management.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UHBX-R-PSE Specifications

  • Max Distance

    Standard Mode (STD): 330' / 100.59m
    Long Reach Mode (LR) : 500' / 152.40m

  • Video Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)

  • Signal Type

    TMDS

  • Connectors

    Locking HDMI

  • Video Resolutions

    DVI: VGA (640x480) to WUXGA (1920x1200)
    HDTV: 480i to 1080p
    Digital Cinema: 4K (4096x2160)

  • Audio Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru DDC for Consumer Electronics Control compatible devices

  • RS232

    Bi-directional (full-duplex) any baud rate Up to 115,200

  • IR

    Extended in both directions. Carrier modulation range from 30 KHz to 60KHz

  • PoH

    Power-over-HDBaseT meets IEEE 802.3af standard. PD side identifies as
    Class 2 (3.84 6.49 watts). Actual power consumption of PD side is 5.5 watts
    max

  • Cooling

    Convection

  • Mounting

    End plates have L bracket with hole for surface mounting

  • Enclosure

    Metal (Steel ends and Aluminum extrusion)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90000 hours (Calculated Estimate)

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 3.2 A, regulated
    Actual DC current (powering both PSE and PD sides) 1.8A max

  • Power

    Sender: 3.5 watts (12 BTU) maximum
    Receiver: 5.5 watts (19 BTU) maximum

  • Temperature

    Storage:-40 to 158 deg. F / -4 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Dimensions (H x W x D)

    1.18 x 4.13 x 4.57" / 29.97 x 104.90 x 116.08mm Depth excludes connectors

  • Weight

    Sender: 9.3oz / 263.65g
    Receiver:10oz / 283.49g

  • UPC Code

    724696530473

About Hall Research UHBX-R-PSE

Just imagine the convenience and versatility of the UHBX-R-PSE HDMI+RS232+IR+PoH UTP Receiver with Power Supply (PSE). This high-quality, durable device is designed to work seamlessly with compatible senders such as the Hall Research model UHBX-S-PD or UHBX-SC-WP. It's an innovative solution that extends HDMI, bi-directional IR, full-duplex RS232, and PoH (power over HDBaseT) over distances of up to 150 meters (500 feet) using a single Cat6 cable.

This reliable receiver module is capable of extending HDMI or single-link DVI video of virtually any resolution, up to a maximum distance of 500 ft (150 m). It's compliant with Power-over-HDBaseT or PoH, meaning only one end requires a power supply. The PSE (power sourcing equipment) end injects power onto the Cat6 cable, while the PD (powered device) or WP (wall plate) side is powered through the RJ45 connector from the opposite side.

The UHBX-R-PSE also provides full-duplex RS232 Serial Port extension that can operate at any baud rate to 115,200, independent of video activity. In addition, it extends IR from one end to the other, with IR Detector and IR Emitter cables sold separately. The IR extension preserves the modulation (carrier) frequency and is compatible with virtually any standard, supporting a modulation range from 30 KHz to 60 KHz.

This user-friendly device offers two selectable distance modes: Standard (default) and Long Reach. If the length of UTP cable is less than 100 meters (330 ft), then STD mode should be used. For lengths above 330 ft, the Long Reach (L.R.) mode must be set. The Long Reach setting can extend a maximum of 1080p@60 Hz, 8-bit color (does not support deep-color or 4Kx2K), RS232, IR, and Power up to 500ft (150m).

The UHBX-R-PSE HDMI+RS232+IR+PoH UTP Receiver with Power Supply (PSE) is a versatile, reliable choice for your home theater or professional audio/video setup.

Hall Research UHBX-R-PSE Features

  • Extends HDMI or DVI video to 500 ft on just one Cat6
  • Includes RS232 and IR extension in both directions
  • Supports virtually all HDMI and DVI resolutions including 4Kx2K
  • Only one end requires power, other side is powered via UTP
  • Power-over-HDBaseT meets IEEE 802.3af standard
  • Sturdy metal enclosures with mounting provisions
  • Complies fully with HDBaseT standard
  • Runs from just one +5vDC supply
  • RS232 Supports all baud rates regardless of presence of video
  • IR extension is carrier frequency agnostic and supports 30 KHz to 60 KHz modulation to provide compatibility across all IR standards
  • Fully isolates ground between TX and RX sides
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend HDMI signals up to 330ft with this reliable HDMI over UTP receiver, ensuring optimal video quality.
  • Enjoy real-time streaming with low latency using this video format converter for seamless presentations.
  • This HDMI receiver supports up to 4K resolution, providing stunning visuals for your home theater setup.
  • With easy setup, this video format converter is perfect for quickly integrating new displays into existing systems.
  • Control your devices remotely using the built-in RS232 and IR pass-through features of this converter.
  • Power your receiver conveniently with Power-over-HDBaseT (PoH), simplifying installation and cable management.

What's in the box:

  • Hall Research UHBX-R-PSE HDMI+RS232+IR+PoH UTP Receiver with PSE
  • 1m HDMI Cable
  • 5vDC Power Adapter
  • Hall Research 2 Year Limited Warranty
