Tannoy CVS Specifications

Performance

Performance

Jump to...
  • Frequency response (-10 dB)

    60 Hz - 24 kHz

  • Rated sensitivity (1 W, Lo Z)

    91 dB 87 dB 87 dB

  • Sensitivity as per EN54-24

    77.1 dB (4m, through transformer)

  • Directivity factor (Q)

    7.7 averaged 1 kHz to 6 kHz

  • Directivity index (DI)

    8.0 averaged 1 kHz to 6 kHz

  • Power handling

    Average: 60W
    Programme: 120W
    Peak: 240W
    Recommended amplifier power: 120W @ 6 Ohm

  • Nominal Impedance (Lo Z)

    6 Ohm

  • Maximum SPL as per EN54 -24

    95 dB (4m, through transducer)

  • Rated maximum SPL (1 m, Lo Z)

    Average: 109 dB
    Peak: 115 dB

  • Transformer taps

    70 V:60 W (83 Ohm) / 30 W (165 Ohm) / 15 W (270Ohm) / 7.5 W (528 Ohm) / OFF & low impedance operation
    100 V: 60 W (165 Ohm) / 30 W (270 Ohm) / 15 W (528 Ohm) / OFF & low impedance operation (Rated noised power & impedance)
    Crossover point: 2.5 kHz

Coverage Angles

Jump to...
  • Coverage Angles

    500 Hz: 175 Degree horizontal, 175 Degree vertical
    1 kHz: 175 Degree horizontal, 165 Degree vertical
    2 kHz: 140 Degree horizontal, 125 Degree vertical
    4 kHz: 70 Degree horizontal, 66 Degree vertical

Transducers

Jump to...
  • Low Frequency

    6" (150mm) mineral loaded cone material

  • High frequency

    0.75" (19mm) coaxially mounted

Physical

Jump to...
  • Enclosure

    Blind mount (BM)

  • Back can

    Painted steel

  • Baffle

    Reflex loaded UL 94V-0 rated ABS

  • Grille

    Steel, with weather resistant coating

  • Safety features

    Rear enclosure safety ring for load-bearing bond

  • Clamping design

    Security toggle clamp

  • Connectors

    Euroblock-style connector with screw terminals (with input cover and cable gland supplied)

  • Dimensions

    Bezel diameter: 11" (280mm)
    Front of ceiling to rear of back can: 9.30" (236mm)
    Front of ceiling to top of cable clamp: 10.35" (262mm)
    Hole cutout diameter: 9.8" (250mm)

  • Weight

    12.8 lb (5.8kg)

  • UPC Code

    653341330932

About Tannoy CVS

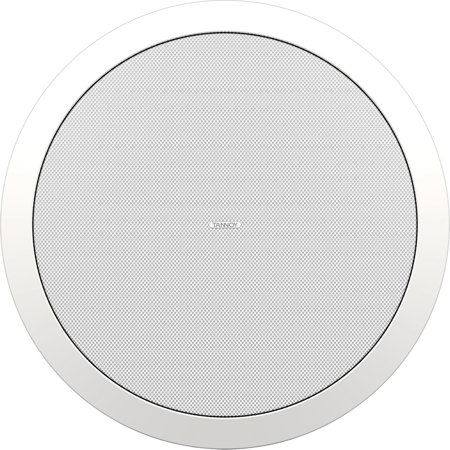

The CVS 6 (EN 54) is an in-ceiling 240-Watt full range loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 (EN 54) offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener - without intruding. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 6 (EN 54) the perfect choice where safety is a top priority.

Exceptional Sound and Reliability
The design comprises a 152 mm (6.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in an injection moulded semi matt white front baffle made of UV/weather resistant UL 94 V-0 ABS material that fits unobtrusively into any environment. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and longterm reliability. The CVS 6 (EN 54) is perfect for applications where exceptional sonic quality and reliability are a requirement.

Comprehensive Installation Package
Supplied with an integral plated steel enclosure, Phoenix connector with steel cover, and an EN 54 compliant strain relief clamping mechanism for fire rated cable, the CVS 6 (EN 54) satisfies the vast majority of installation application requirements. Input is via a low insertion loss 60 W line transformer with multiple taps for 70 V and 100 V line systems or 6 Ohm direct input. Installation is quick and easy with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory

Tannoy CVS Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • EN 54-24 certified for fire detection and fire alarm systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Mounting C-ring and ceiling tile rails included
  • Phoenix connector with steel cover and EN 54 compliant strain relief clamping mechanism for fire rated cable
  • Designed and engineered in the U.K.

Key Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • EN 54-24 certified for fire detection and fire alarm systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

What's in the box:

  • 2x CVS 6 6 " Coaxial In-Ceiling Loudspeaker
  • C-Ring
  • Tile-Bridge Kit
  • Paint Mask
  • Cutout Template
  • Tannoy 10 Year Warranty with Registration
