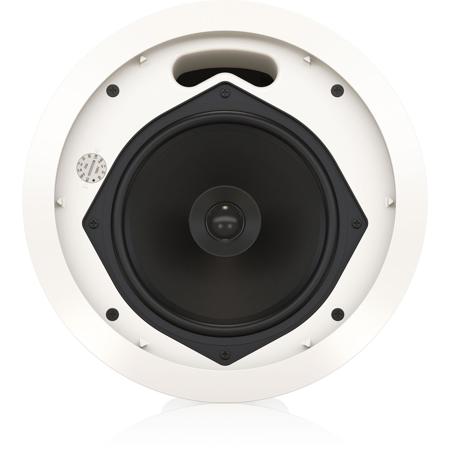

Tannoy CVS 601 6.5" Coaxial In-Ceiling Loudspeaker for Installation Applications, EN 54-24 Certified, 200W Peak Power, White, Pair

SKU: TANCVS601 MFR: CVS601
$149.00
$260.00
Save: $111 (43%)
Earn VIP Reward Points

Key Features

  • Experience exceptional audio clarity with Tannoy CVS 601 in-ceiling speakers.
  • Enjoy wide sound dispersion with a 115-degree coverage angle for optimal listening.
  • These durable speakers are EN 54-24 certified, ensuring reliability in installations.
  • Achieve powerful sound with 200W peak power, perfect for commercial spaces.
  • Seamless integration with included C-ring & tile-bridge kit simplifies installation.
  • These white coaxial speakers offer superb sound quality and aesthetic appeal.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tannoy CVS Specifications

General

General

Jump to...
  • Color

    White

Performance

Jump to...
  • Frequency response (+3dB, -3 dB)

    105 Hz-20 kHz

  • Frequency response (-10 dB)

    74 Hz-20 kHz

  • Sensitivity at 1m/1W

    90 dB

  • Nominal coverage angle

    115 Degree

  • Directivity factor (Q)

    7.3 (averaged 1 kHz to 6 kHz)

  • Directivity index (DI)

    8.6 (averaged 1 kHz to 6 kHz)

  • Power handling (LoZ)

    Average 50 W
    Programme 100 W
    Peak 200 W
    Recommended amplifier power 100 W @ 8 Ohm
    Nominal Impedance (Switch to LoZ) 8 Ohm
    Rated maximum SPL (1 m, Switch to LoZ) 110 dB
    Average 107 dB
    Peak SPL 113 dB

  • Transformer taps

    70 V: 30 W/ 15 W/ 7.5 W/ 3.8 W
    100 V: 30 W/ 15 W/ 7.5 W

  • Transducers

    Low frequency: 6.5" (165mm) PP cone
    High frequency: 0.79" (20mm) coaxially mounted

Physical

Jump to...
  • Enclosure

    Blind mount (BM)

  • Back can

    Anodized steel

  • Baffle

    Reflex loaded UL 94V-0 rated ABS

  • Grille

    Aluminum, powder coated

  • Safety Features

    Rear enclosure safety ring for load-bearing bond

  • Clamping Design

    Security toggle clamp

  • Connectors

    Euroblock-style connector with screw terminals (with input cover and cable gland supplied)

  • Dimensions

    Bezel diameter (grille max diameter): 10" (254mm)
    Rear face of baffle to rear of back can: 8.19" (208mm)
    Rear face of baffle to top of safety loop: 8.70" (221mm)
    Rear face of baffle to rear of flex conduit: 9.17" (233mm)
    Hole cutout diameter: 8.74" (222mm)

  • Weight

    8.36 lb (3.8kg) +/-10%

  • UPC Code

    653341340436

About Tannoy CVS

Be captivated by the exceptional audio performance of the CVS 601 6.5" Coaxial In-Ceiling Loudspeaker, meticulously engineered for both background and foreground music sound systems. This versatile loudspeaker is perfect for a wide range of applications, including restaurants, hotels, houses of worship, and various business environments. With its impressive power handling, wide frequency response, and low distortion, the CVS 601 rivals more expensive models, delivering outstanding sound quality.

Safety is paramount with the CVS 601, as it boasts EN 54-24 certification for fire detection and alarm systems, making it an ideal choice where safety is a priority. Additionally, it is UL 1480 certified for fire-protected signaling systems and UL 2043 certified for air-handling spaces, ensuring compliance with stringent safety standards.

The CVS 601 features a robust design with a 165 mm (6.50") polypropylene full-range driver and a 0.75" ferrofluid-cooled soft dome high-frequency driver. These components are housed in a UV and weather-resistant UL 94-V0 and 94-5VB ABS front, complemented by a plated steel fire can enclosure. The attractive powder-coated aluminum mesh grille provides dust protection, while the mineral-loaded polypropylene cone material and butyl rubber surround enhance durability and long-term reliability.

Designed for applications demanding superior music and speech sound quality, the CVS 601 comes with a comprehensive installation package. It includes an integral zinc-plated steel back can with a recessed termination box, finished in a semi-matt white that blends seamlessly into any setting. The removable locking connector features screw terminals for secure wire termination and a "loop through" facility. A steel cover and strain relief clamping mechanism are included for use with fire-rated cabling.

Installation is quick and easy with security toggle clamps, two tile support rails, and one C-ring included in the package. For additional installation flexibility, a plaster (mud) ring is available as an optional accessory. The custom-designed low insertion loss 30 W line transformer with an easily accessible tapping switch ensures pristine performance and optimal versatility, making the CVS 601 a top choice for discerning audio professionals.

Tannoy CVS Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 50 Watts continuous, 200 Watts peak power
  • 6.5" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • EN54-24:2008 certified Type A
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
  • Powder coated aluminium mesh grille with dust protection
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Mounting C-ring and ceiling tile rails included
  • Steel cover and strain relief clamping mechanism for fire rated cable
  • Designed and engineered in the U.K.

Key Features

  • Experience exceptional audio clarity with Tannoy CVS 601 in-ceiling speakers.
  • Enjoy wide sound dispersion with a 115-degree coverage angle for optimal listening.
  • These durable speakers are EN 54-24 certified, ensuring reliability in installations.
  • Achieve powerful sound with 200W peak power, perfect for commercial spaces.
  • Seamless integration with included C-ring & tile-bridge kit simplifies installation.
  • These white coaxial speakers offer superb sound quality and aesthetic appeal.

What's in the box:

  • 2x CVS 601 6.5 " Coaxial In-Ceiling Loudspeaker (White)
  • Metal Grille
  • Cable Gland
  • Flex Conduit
  • C-Ring
  • Tile-Bridge Kit
  • Paint Mask
  • Cutout Template
  • Tannoy 10 Year Warranty with Registration
