Teradek Bolt Pro 600 TX/RX SDI Wireless Video Transceiver Set, 19dbm EIRP (Transmitter) / 17dbm EIRP (Receiver) RF Power, 48kHz 24-bit PCM

Picture does not represent the actual item
See what's in the box

See all Teradek items

Used Teradek Bolt Pro 600 TX/RX SDI Wireless Video Transceiver Set, 19dbm EIRP (Transmitter) / 17dbm EIRP (Receiver) RF Power, 48kHz 24-bit PCM

SKU: US1827389

This item is no longer available.

Recommended Items

Teradek Bolt Pro 300 TX/RX: Picture 1 regular
Teradek Bolt Pro 300 TX/RX SDI/HDMI Wireless Video Transceiver Set, 17dBm EIRP (Transmitter) / 15dBm EIRP (Receiver) RF Power, 48kHz 24-bit PCM
$581.00$546.00
Teradek Bolt Pro 2000: Picture 1 regular
Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter
$5,090.00$3,590.00
Teradek 10-2160: Picture 1 regular
Teradek Bolt 4K LT 3G-SDI TX and 12G-SDI RX Deluxe Kit, 1500' Range, Gold Mount
$6,499.00$4,500.00
Teradek Bolt 6 XT: Picture 1 regular
Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Tx & Rx Deluxe Kit, Gold Mount,5000'
$15,990.00
Teradek Bolt 6 Rx Monitor Module: Picture 1 regular
Teradek Bolt 6 750 Rx Monitor Module with Internal Antennas, V-Mount, 750' Range
$1,890.00
Teradek Bolt 4K TX Module: Picture 1 regular
Teradek Bolt 4K 750 TX Monitor Module for SmallHD Smart 7 Monitors
$2,490.00$2,390.00
Teradek Bolt 6 Rx Monitor Module: Picture 1 regular
Teradek Bolt 6 750 Rx Monitor Module w/Internal Antennas, Gold Mount, 750' Range
$1,890.00
Teradek 10-2262: Picture 1 regular
Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver, V-Mount, 750' Range
$2,090.00
Teradek Bolt 6 LT: Picture 1 regular
Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver, 750' Range
$1,790.00
Teradek Bolt 6 Monitor Module: Picture 1 regular
Teradek Bolt 6 750 Receiver Monitor Module for SmallHD Smart 7, Gold Mount, 750'
$1,890.00$1,499.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Teradek Bolt Pro 600 TX/RX Specifications

  • Transmitter: Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Transmitter: Color sampling

    Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later, 8-bit colors for the rest

  • Transmitter: Inputs

    1x 75 Ohms BNC
    1 x Type A receptacle HDMI

  • Transmitter: Outputs

    1x 75 Ohms BNC(Loop-out)

  • Transmitter: Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

  • Transmitter: Audio Format support

    48kHz 24-bit PCM

  • Transmitter: Frequency

    Non-DFS Frequencies:
    US: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    EU & JP: 5.19 - 5.23 GHz
    DFS Frequencies:
    US: 5.27 - 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 - 5.67 GHz

  • Transmitter: RF power

    19dbm EIRP(with two 2dbi antennas)

  • Transmitter: Range

    Up to 600' line of sight

  • Transmitter: Unicast / Multicast

    Yes

  • Transmitter: Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Transmitter: Power Input

    2-Pin Lemo 7-28 VDC

  • Transmitter: Internal battery

    No

  • Transmitter: Consumption(1080p60)

    7.8 Watts

  • Transmitter: LCD screen

    No

  • Transmitter: Firmware

    Upgrade via Mini-USB

  • Transmitter: Operating temperature

    0 to 50deg. C / 32 to 122deg. F

  • Transmitter: Chassis material

    Milled aluminum
    Hot-shoe mount

  • Transmitter: Mountability

    Multiple mounting options with 1/4" holes

  • Receiver: Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Receiver: Color sampling

    Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later, 8-bit colors for the rest

  • Receiver: Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

  • Receiver:Format support

    48kHz 24-bit PCM

  • Receiver:Frequency

    Non-DFS Frequencies:
    US: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    EU & JP: 5.19 - 5.23 GHz
    DFS Frequencies:
    US: 5.27 - 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 - 5.67 GHz

  • Receiver:Range

    Up to 600' / 182.88m line of sight

  • Receiver: Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Receiver: Firmware

    Upgrade via Mini-USB

  • Receiver: Operating temperature

    0 to 50deg. C / 32 to 122deg. F

  • Receiver: Input

    No

  • Receiver: Outputs

    1x USB 3.0 micro B receptacle
    1x 75 Ohms BNC
    1x Type A receptacle HDMI

  • Receiver: RF power

    17dbm EIRP(with one 2dbi TX antenna)

  • Receiver: Unicast / Multicast

    Yes

  • Receiver: Power Input

    2-Pin Lemo 7-28 VDC

  • Receiver: Internal battery

    No

  • Receiver: Consumption(1080p60)

    8.5 Watts

  • Receiver: LCD screen

    Yes

  • Receiver: Chassis material

    Milled aluminum
    Hot-shoe mount

  • Receiver: Mountability

    Multiple mounting options with 1/4" holes

  • Dimensions

    Transmitter: 4.3 x 2.6 x 1.1" / 109.22 x 66.04 x 27.94mm
    Receiver: 5.8 x 3.5 x 1.0" / 147.32 x 88.90 x 25.40mm

  • Weight

    Transmitter: 9.9oz / 280.66g
    Receiver: 13.3oz / 377.05g

About Teradek Bolt Pro 600 TX/RX SDI Wireless Video Transceiver Set, 19dbm EIRP (Transmitter) / 17dbm EIRP (Receiver) RF Power, 48kHz 24-bit PCM

The Teradek Bolt Pro 600 TX/RX SDI Wireless Video Transceiver Set features an OLED screen for quick RX pairing, manual frequency selection, external antennas, and a transmission range of up to 600' line of sight. The Teradek Bolt is a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000' over the unlicensed 5GHz band. The Teradek Bolt Pro 600 is multicast capable up to 4 receivers, supports timecode and metadata pass through, and includes the USB 3.0 GRAB Engine.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion & Extras
It supports real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Teradek Bolt Pro 600 also outputs a test pattern when the video signal is lost. It supports quick RX pairing via the OLED screen and manual frequency selection.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

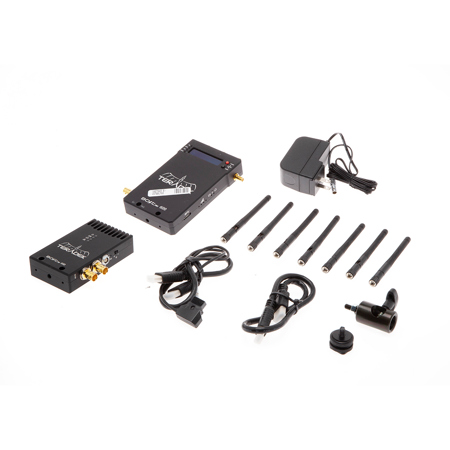

What's in the box:

  • Teradek Bolt Pro 600 Transmitter
  • Bolt Pro 600 Receiver
  • Power Adapter
  • PTap Cable
  • HDMI Cable
  • 7x Antennas
  • Hard Case
