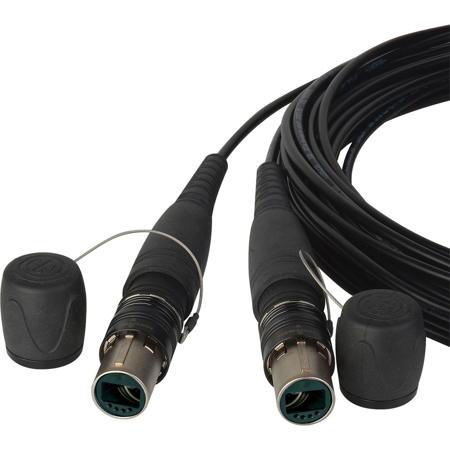

Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake, 164'
SKU: CPHFOC2M0164 MFR: HF-OC2M-0164
Earn VIP Reward PointsKey Features
- Ensure reliable data transfer with this 164' OpticalCON DUO multimode fiber optic cable.
- Built for durability, this tactical snake cable withstands over 1000 cycles of use.
- Experience secure connections with Neutrik OpticalCON DUO connectors on both ends.
- Enjoy broad compatibility; this fiber optic cable works seamlessly with various systems.
- Minimize signal loss; cable provides less than 0.5 dB loss per connector for optimal performance.
- Withstand harsh conditions; operate confidently from -13 to 167 Degree F with this cable.
Ships from Manufacturer?
Free Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Camplex DUO Multimode
Explore the robust and lightweight OpticalCON DUO NO2MX to NO2MX Multimode Tactical Snake Cables, engineered for demanding field production in outside broadcast, rental houses, and more. These high-quality, durable cables are crafted by Camplex, a reputable brand recognized as a Certified OpticalCON Cable Assembler (COCA) by Neutrik. This certification guarantees that each cable is constructed according to the latest training and polishing standards set by Neutrik's factory professionals.
Our exclusive cables utilize the advanced Neutrik OpticalCON system, which enhances the original OpticalCON by adding lockable, waterproof metal caps and protective rubber guards. This makes them exceptionally robust and ideal for challenging outdoor applications.
The ergonomic cable strain relief design enhances cable protection and water resistance for long-term use. Plus, the color-coding options enable custom-built coding for easy identification and organization.
The OpticalCON system is built on LC-Duplex connectors, eliminating their common weaknesses and ensuring a safe, dust-protected, and rugged connection. With compatibility to conventional LC connectors, the OpticalCON DUO provides the flexibility of using cost-effective LC cables or the rugged OpticalCON cable assembly for mobile applications.
The OpticalCON DUO is the perfect solution for equipment connections and system integration, offering LC compatibility on both the chassis connector front and rear. The OpticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized, durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well-protected against dirt and dust by an automatically operated sealing cover.
With a generous length of 164 feet, this multimode outside fiber optic snake is versatile and flexible, ideal for transmitting data or video signals over long distances in rugged or outdoor environments.
Camplex DUO Multimode Features
- OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
- Machine polishing processes provide exceptionally low return loss and insertion loss
- OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
- APC Polishing types available upon request
- Machine polished and tested end faces
- Tactical tight buffered PUR Cable
- Optical Shutter Mechanism for added protection
- Typical back reflection less than-55dB
- Heavy Duty Tactical Reel with Side Reel Flange (TR version only)
Warranty Information
This product has a limited warranty of 12 months.
