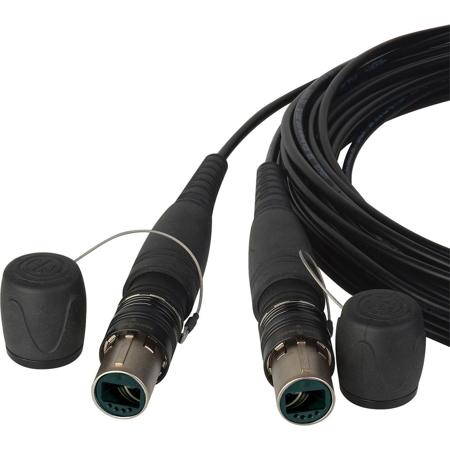

Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake, 500'

SKU: CPHFOC2M0500 MFR: HF-OC2M-0500
Earn VIP Reward Points

Key Features

  • Experience fast data transfer with this 500' OpticalCON DUO multimode fiber optic cable.
  • Built for durability, the tactical polyurethane jacket ensures long-lasting network connections.
  • Neutrik OpticalCON DUO connectors provide secure, reliable links for all your devices.
  • Enjoy a long life with over 1000 cycles, minimizing the need for frequent replacements.
  • This multimode fiber optic cable supports a wide operating temperature range for versatility.
  • With low cable loss, maintain signal integrity over long distances with this fiber optic snake.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex DUO Multimode Specifications

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Connector 2

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50 um OM3 multimode fiber

  • Cable Loss

    Less than 3 dB/km at 850 nm, less than 1 dB/km at 1300 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    500' (152m)

About Camplex DUO Multimode

While maintaining a lightweight design, the OpticalCON DUO NO2MX to NO2MX Multimode Tactical Snake Cable is exceptionally rugged, making it an ideal choice for field production in outside broadcast, rental houses, and more. This product, crafted by the trusted brand Camplex, is a testament to their commitment to high-quality and reliable electronics.

The cable is constructed in a state-of-the-art fiber optic lab, certified by Neutrik as a Certified OpticalCON Cable Assembler (COCA). This certification guarantees that the cable is built to the latest training and polishing standards, as outlined by Neutrik factory professionals, ensuring a product that meets the highest industry standards.

The OpticalCON DUO cable utilizes the advanced Neutrik OpticalCON system, which enhances the original OpticalCON by adding lockable and waterproof metal caps, as well as rubber guards. These features make the cable more robust and particularly suitable for outdoor applications where durability is paramount.

The cable also features an ergonomic strain relief design, which improves cable protection and water resistance for long-term use. The color-coding options allow for custom-built coding, adding a layer of versatility to its use.

The OpticalCON system is based on LC-Duplex connectors, eliminating their weaknesses and guaranteeing a safe, dust-protected, and rugged connection. The OpticalCON DUO offers the choice of using cost-effective LC cables or the rugged OpticalCON cable assembly for mobile applications, providing flexibility based on your specific needs.

The OpticalCON DUO is the perfect solution for equipment connections and system integration, offering LC compatibility on the chassis connector front and rear. The cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well-protected against dirt and dust by an automatically operated sealing cover, ensuring the longevity and reliability of your connection.

Camplex DUO Multimode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience fast data transfer with this 500' OpticalCON DUO multimode fiber optic cable.
  • Built for durability, the tactical polyurethane jacket ensures long-lasting network connections.
  • Neutrik OpticalCON DUO connectors provide secure, reliable links for all your devices.
  • Enjoy a long life with over 1000 cycles, minimizing the need for frequent replacements.
  • This multimode fiber optic cable supports a wide operating temperature range for versatility.
  • With low cable loss, maintain signal integrity over long distances with this fiber optic snake.

What's in the box:

  • Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
