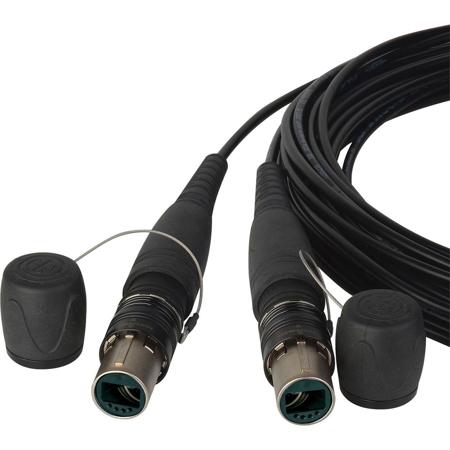

Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake, 328'

SKU: CPHFOC2M0328 MFR: HF-OC2M-0328
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 328' OpticalCON DUO multimode fiber optic cable.
  • Built for durability, the tactical polyurethane jacket protects this Ethernet cable.
  • Neutrik OpticalCON DUO connectors ensure a secure and reliable fiber optic connection.
  • Enjoy a long lifetime with this cable, tested for over 1000 insertion cycles.
  • This multimode fiber cable supports various applications with low signal loss.
  • Withstand tough conditions; this Ethernet cable operates from -13 to 167 Degree F.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex DUO Multimode Specifications

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Connector 2

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50 um OM3 multimode fiber

  • Cable Loss

    Less than 3 dB/km at 850 nm, less than 1 dB/km at 1300 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    328' (100m)

About Camplex DUO Multimode

Before you settle for any fiber optic cable, consider the OpticalCON DUO NO2MX to NO2MX Multimode Tactical Snake Cable. This high-quality, durable cable is designed specifically for rigorous field production in outside broadcast environments, rental houses, and more.

Crafted by Camplex, a reputable brand known for its superior products, this cable is assembled in a state-of-the-art fiber optic lab certified by Neutrik as a Certified OpticalCON Cable Assembler (COCA). This certification guarantees that your cable is built according to the latest training and polishing standards set by Neutrik factory professionals, ensuring reliable and consistent performance.

This exclusive cable utilizes the advanced Neutrik OpticalCON system, which enhances the original OpticalCON by adding lockable and waterproof metal caps and rubber guards, making it exceptionally robust and suitable for outdoor applications.

The ergonomic cable strain relief enhances cable protection and water resistance for long-term use, while the color-coding options facilitate custom-built coding. The OpticalCON system is based on LC-Duplex connectors, eliminating their weaknesses and guaranteeing a safe, dust-protected, and rugged connection.

The OpticalCON DUO offers the flexibility of using cost-effective LC cables or the rugged OpticalCON cable assembly for mobile applications, making it a versatile choice. It's the ideal solution for equipment connections and system integration, offering LC compatibility on the chassis connector front and rear.

The OpticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.

With a generous length of 328 feet, this cable is perfect for longer distance installations, making it a reliable choice for transmitting data or video signals over extended distances in rugged or outdoor environments.

Camplex DUO Multimode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data transfer with this 328' OpticalCON DUO multimode fiber optic cable.
  • Built for durability, the tactical polyurethane jacket protects this Ethernet cable.
  • Neutrik OpticalCON DUO connectors ensure a secure and reliable fiber optic connection.
  • Enjoy a long lifetime with this cable, tested for over 1000 insertion cycles.
  • This multimode fiber cable supports various applications with low signal loss.
  • Withstand tough conditions; this Ethernet cable operates from -13 to 167 Degree F.

What's in the box:

  • Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
