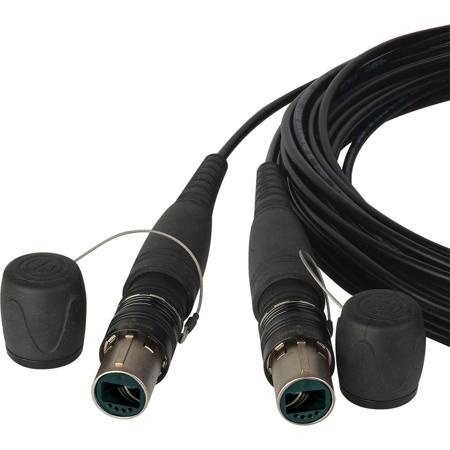

Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake, 1000'

SKU: CPHFOC2M1000 MFR: HF-OC2M-1000
Earn VIP Reward Points

Key Features

  • Get reliable data transfer with this 1000ft OpticalCON DUO multimode fiber optic cable.
  • Built for durability, this tactical snake cable withstands over 1000 cycles of use!
  • Enjoy broad compatibility with Neutrik OpticalCON DUO connectors on both ends of this cable.
  • Minimize signal loss; this fiber optic cable boasts less than 0.5 dB connector loss.
  • This Camplex fiber cable ensures fast data with less than 3 dB/km loss at 850 nm.
  • Withstand harsh conditions; this cable operates from -13 to 167 Degree F for any job.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex DUO Multimode Specifications

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Connector 2

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50 um OM3 multimode fiber

  • Cable Loss

    Less than 3 dB/km at 850 nm, less than 1 dB/km at 1300 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    1000' (305m)

About Camplex DUO Multimode

If you're seeking a robust and reliable solution for your optical fiber communication needs, look no further than the OpticalCON DUO NO2MX to NO2MX Multimode Tactical Snake Cable. Engineered for the rigors of field production in outside broadcast environments, rental houses, and demanding live event setups, this 1000-foot multimode fiber optic snake is the epitome of durability and high-quality performance.

Crafted with precision in a state-of-the-art fiber optic lab, our technicians are certified by Neutrik as a Certified OpticalCON Cable Assembler (COCA), ensuring that each cable is constructed to the highest standards of training and polishing as mandated by Neutrik factory professionals. The use of the Neutrik OpticalCON ADVANCED system in the construction of these exclusive cables further bolsters their robustness. The system includes lockable and waterproof metal caps, along with rubber guards, making it an indispensable asset for outdoor applications where protection against the elements is paramount.

The ergonomic design of the cable strain relief not only enhances cable protection but also boosts water resistance for long-term outdoor use. Additionally, the availability of color-coding options allows for custom-built coding, ensuring that your setup is both organized and efficient.

The OpticalCON system, which is based on the LC-Duplex connectors, eliminates common weaknesses found in standard connectors, offering a secure, dust-protected, and rugged connection. With compatibility to conventional LC connectors, the OpticalCON DUO provides the flexibility to choose between cost-effective LC cables and the more robust OpticalCON cable assembly for mobile and field applications.

Ideal for connecting equipment and system integration, the OpticalCON DUO features a chassis connector that is compatible with LC connectors on both the front and rear. The cable connector itself is housed in a rugged, all-metal housing that can withstand the challenges of on-the-go use. It boasts a spring-loaded push-pull locking mechanism and superior cable retention using aramid yarn, ensuring that your optical connection is not only secure but also protected from dirt and dust by an automatically operated sealing cover.

Choose the OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake for a flexible, long-lasting, and high-quality transmission of video, audio, and data signals across a variety of demanding applications.

Camplex DUO Multimode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Get reliable data transfer with this 1000ft OpticalCON DUO multimode fiber optic cable.
  • Built for durability, this tactical snake cable withstands over 1000 cycles of use!
  • Enjoy broad compatibility with Neutrik OpticalCON DUO connectors on both ends of this cable.
  • Minimize signal loss; this fiber optic cable boasts less than 0.5 dB connector loss.
  • This Camplex fiber cable ensures fast data with less than 3 dB/km loss at 850 nm.
  • Withstand harsh conditions; this cable operates from -13 to 167 Degree F for any job.

What's in the box:

  • Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
