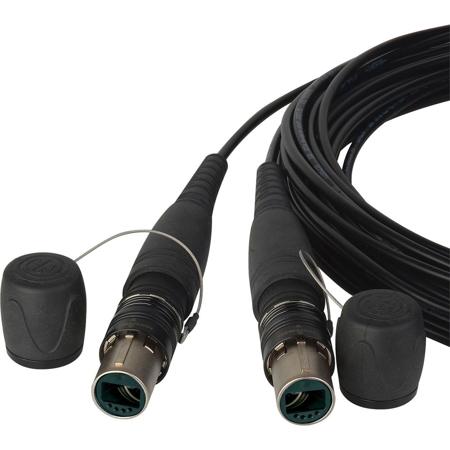

Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake, 656'

SKU: CPHFOC2M0656 MFR: HF-OC2M-0656
Earn VIP Reward Points

Key Features

  • Experience robust connectivity with this 656' OpticalCON DUO multimode fiber optic cable.
  • Built for durability, this tactical fiber snake withstands over 1000 cycles of use.
  • Ensure reliable data transfer with <0.5 dB connector loss in your fiber optic network.
  • Enjoy broad compatibility; this fiber cable supports operating temps from -13 to 167°F.
  • Benefit from a strong 500 N cable retention force for secure fiber optic connections.
  • Achieve superior performance with low cable loss, less than 3 dB/km at 850 nm wavelength.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex DUO Multimode Specifications

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Connector 2

    Neutrik OpticalCON DUO NO2MX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50 um OM3 multimode fiber

  • Cable Loss

    Less than 3 dB/km at 850 nm, less than 1 dB/km at 1300 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    656' (200m)

About Camplex DUO Multimode

What sets the OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake apart is its exceptional durability and flexibility, making it an indispensable asset for field production in demanding outside broadcast environments, rental houses, and any situation requiring a robust fiber optic connection. Crafted with precision by Camplex, a leader in fiber optic technology, this 656-foot tactical snake cable is designed to withstand the rigors of outdoor use while maintaining high-quality signal transmission.

The OpticalCON DUO NO2MX to NO2MX cable benefits from the advanced engineering of the Neutrik OpticalCON ADVANCED system, which elevates the original OpticalCON design to new heights of resilience. The system features lockable and waterproof metal caps, along with protective rubber guards, ensuring that your connection remains secure and impervious to the elements. This is particularly crucial for applications exposed to harsh weather conditions.

The ergonomic design of the cable strain relief not only enhances cable protection but also boosts water resistance for prolonged durability. Additionally, the availability of color-coding options enables custom-built coding for easy identification and organization of your cable setups.

At the core of the OpticalCON system lies the LC-Duplex connector, renowned for its reliability but reimagined here to eliminate common weaknesses. This ensures a safe, dust-protected, and rugged connection that is essential for maintaining the integrity of your data transmission. The OpticalCON DUO's compatibility with standard LC connectors offers the flexibility to choose between cost-effective LC cables and the more rugged OpticalCON cable assembly for mobile and high-impact applications.

The OpticalCON DUO cable connector itself is a testament to thoughtful design, featuring a durable all-metal housing that accommodates a standard optical LC-Duplex connector. Its spring-loaded push-pull locking mechanism ensures a secure connection, while the excellent cable retention, supported by aramid yarn, guards against disconnection and damage. The optical connection is further protected from dirt and dust by an automatically operated sealing cover, providing peace of mind that your data is transmitted without interference.

In summary, the OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake is a reliable, high-quality, and long-lasting solution for those who require a flexible and durable fiber optic connection over extended distances. Its construction by Camplex guarantees a product that meets the highest standards of performance and durability in the industry.

Camplex DUO Multimode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience robust connectivity with this 656' OpticalCON DUO multimode fiber optic cable.
  • Built for durability, this tactical fiber snake withstands over 1000 cycles of use.
  • Ensure reliable data transfer with <0.5 dB connector loss in your fiber optic network.
  • Enjoy broad compatibility; this fiber cable supports operating temps from -13 to 167°F.
  • Benefit from a strong 500 N cable retention force for secure fiber optic connections.
  • Achieve superior performance with low cable loss, less than 3 dB/km at 850 nm wavelength.

What's in the box:

  • Camplex OpticalCON DUO to DUO Multimode Outside Fiber Optic Tactical Snake
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
