Lectrosonics SMQV Specifications

  • Operating frequencies

    Block 470: 470.100 - 495.600
    Block 19: 486.400 - 511.900
    Block 20: 512.000 - 537.500
    Block 21: 537.600 - 563.100
    Block 22: 563.200 - 588.700
    Block 23: 588.800 - 607.900 and 614.100 - 614.300
    Block 24: 614.400 - 639.900
    Block 25: 640.000 - 665.500
    Block 26: 665.600 - 691.100

  • Frequency range

    256 frequencies in 100 kHz steps for one 25.5 MHz wide block

  • Channel Spacing

    100 kHz

  • Frequency selection

    Control panel mounted membrane switches

  • RF Power output

    Switchable; 50, 100 or 250 mW

  • Compatibility Modes

    Digital Hybrid Wireless (400 Series), 200 Series, 100 Series, Mode 3, Mode 6, IFB

  • Pilot tone

    25 to 32 kHz; 5 kHz deviation (in 400 Series Mode)

  • Frequency stability

    +/- 0.002%

  • Deviation

    +/- 75 kHz max. (in 400 Series Mode)

  • Spurious radiation

    60 dB below carrier

  • Equivalent input noise

    -125 dBV, A-weighted

  • Input level: If set for dynamic mic

    0.5 mV to 50 mV before limiting.
    Greater than 1 V with limiting.

  • Input level: for electret lavaliere mic

    1.7 uA to 170 uA before limiting.
    Greater than 5000 uA (5 mA) with limiting.

  • Input level: Line level input

    17 mV to 1.7 V before limiting.
    Greater than 50 V with limiting.

  • Input impedance:Dynamic mic

    300 Ohms

  • Input impedance: Electret lavaliere

    Input is virtual ground with servo adjusted constant current bias

  • Input impedance: Line level

    2.7 kOhms

  • Input limiter

    DSP Controlled Soft limiter, 30 dB range

  • Bias voltages

    Fixed 5 V at up to 5 mA Selectable 2 V or 4 V servo bias for any electret lavaliere.

  • Gain control range

    44 dB; panel mounted membrane switches

  • Modulation indicators

    Dual bicolor LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation.

  • Controls

    Control panel with LCD and four membrane switches.

  • Low frequency roll-off

    Adjustable from 35 to 150 Hz.

  • Audio Frequency Response

    35 Hz to 20 kHz, +/-1 dB (The low frequency roll-off is adjustable)

  • Total Harmonic Distortion

    0.2% typical (400 Series mode)

  • Audio Input Jack

    Switchcraft 5-pin locking (TA5F)

  • Antenna

    Flexible, unbreakable steel cable

  • Battery Type

    1.5 Volt AA lithium or rechargeable NiMH recommended

  • Battery Life

    SMQV 250mW:
    1.75 hours (alkaline); 7.5 hours (lithium), 5 hours with 2500mAh NiMH
    SMQV 100mW:
    5.75 hours (alkaline); 14.25 hours (lithium), 8.5 hours with 2500mAh NiMH
    SMQV 50mW:5.75 hours (alkaline); 14.25 hours (lithium), 8.5 hours with 2500mAh NiMH

  • Dimensions

    SMQV: 2.3 x 2.4 x 0.64" / 58.42 x 60.96 x 16.25mm (not including microphone)

  • Weight

    SMQV: 3.7oz / 104.89g (with lithium batteries)

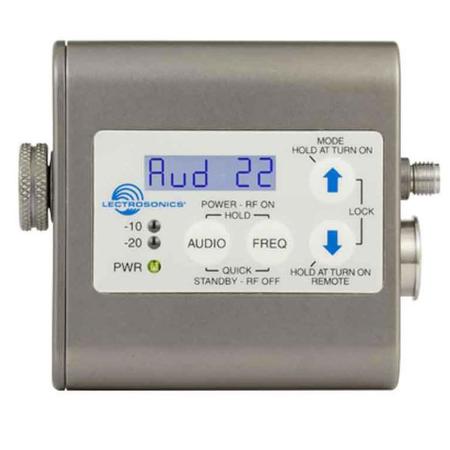

About Lectrosonics SMQV

From the innovative minds at Lectrosonics, the SMQV Variable Power Miniature Transmitter emerges as a pinnacle of portable, high-tech audio transmission. This back-lit, double battery version offers unparalleled versatility with selectable RF power outputs of 50, 100, and 250mW, catering to a wide range of professional audio applications. Whether for live theater productions requiring discreet, low-power operation or for robust, high-demand environments, this transmitter adapts seamlessly to your needs.

Crafted with durability in mind, the SMQV's housing is precision-machined from solid aluminum blocks, ensuring a lightweight yet rugged design that stands up to the rigors of on-location work. Its special non-corrosive finish is engineered to withstand exposure to saltwater and perspiration, making it an ideal choice for use in extreme conditions.

The high-tech servo bias input circuitry is a standout feature, offering a standard TA5M jack compatible with a variety of microphones, from electret lavaliere to dynamic models, or even line-level signals. This advanced input system is designed to be more resistant to overload, eliminating the need for pads on certain microphones and ensuring a cleaner, more reliable signal.

Incorporating a DSP-controlled analog audio limiter, the SMQV ensures exceptional overload protection with a dynamic range exceeding 30 dB. Its dual-release envelope maintains acoustic transparency and low distortion, even with rapid transient recovery and sustained high levels, preserving the integrity of your audio.

The water-resistant control panel boasts an intuitive LCD, membrane switches, and multi-color LEDs for swift and precise adjustments to input gain, frequency, and compatibility mode selection. The battery compartment is compatible with both lithium and rechargeable AA batteries, offering extended field use.

Leveraging Lectrosonics' proprietary Digital Hybrid Wireless Technology, the SMQV overcomes channel noise with a novel approach. By digitally encoding the audio in the transmitter and decoding it in the receiver, while still utilizing an analog FM link, this system delivers the full benefits of FM transmission without the artifacts of analog compandors.

This powerful and portable transmitter operates across a broad frequency range, including 470.1-495.6 MHz, 486.4-511.9 MHz, 512-537.5 MHz, 537.6-563.1 MHz, 563.2-588.7 MHz, 588.8-607.9 MHz, 614.1-614.3 MHz, 614.4-639.9 MHz, 640-665.5 MHz, and 665.6-691.1 MHz. It is backward compatible with Lectrosonics 200 and 100 Series, IFB receivers, and some other brands of analog wireless receivers, ensuring a broad scope of use with existing equipment.

The Lectrosonics SMQV Variable Power Miniature Transmitter with Pouch is a testament to the brand's commitment to quality and innovation, offering audio professionals a powerful, versatile, and reliable solution for their wireless transmission needs.

Lectrosonics SMQV Features

  • Selectable RF power outputs (50/100/250mW) for versatile audio transmission needs
  • Durable aluminum housing with non-corrosive finish, ideal for extreme environments
  • Advanced servo bias input circuitry for compatibility with various microphone types
  • DSP-controlled analog audio limiter for transparent sound and low distortion
  • Water-resistant control panel with LCD, membrane switches, & multi-color LEDs for easy adjustments
  • Compatible with a wide frequency range and various Lectrosonics receivers for extended usability

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Selectable RF power outputs (50/100/250mW) for versatile audio transmission needs
  • Durable aluminum housing with non-corrosive finish, ideal for extreme environments
  • Advanced servo bias input circuitry for compatibility with various microphone types
  • DSP-controlled analog audio limiter for transparent sound and low distortion
  • Water-resistant control panel with LCD, membrane switches, & multi-color LEDs for easy adjustments
  • Compatible with a wide frequency range and various Lectrosonics receivers for extended usability

What's in the box:

  • Lectrosonics SMQV Variable Power Miniature Transmitter
  • 2x AA Lithium Batteries
  • Foam Insulating Pads
  • Pouch
  • Mic Connector Kit
  • Belt Clip
  • Quick Start Guide
  • Lectrosonics 1 Year Limited Warranty
