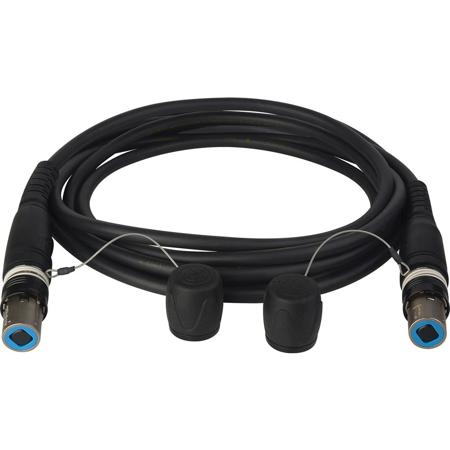

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 250'

SKU: CPHFOC4S0250 MFR: HF-OC4S-0250
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 250' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical cable withstands harsh environments easily.
  • This singlemode fiber cable supports digital audio, video, and networking needs.
  • Enjoy broad compatibility; works with JVC FS-790 cameras & Telecast CopperHead.
  • Shielded OpticalCON QUAD connectors ensure a stable connection with low signal loss.
  • Withstands 1000+ cycles; a dependable fiber optic cable for staging and deployment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex QUAD Singlemode Outside Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras
    Telecast CopperHead, SHED-HDX
    MultiDyne Silverback

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    250' (76m)

About Camplex QUAD Singlemode Outside

While being both extremely rugged and lightweight, the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable is a high-quality, reliable solution for your fiber optic connectivity needs. This sturdy, 250-foot cable is designed with two fibers and no electrical conductors, making it ideal for field production in outside broadcast environments, rental houses, and more.

Our state-of-the-art fiber optic lab has been recognized by Neutrik as a Certified OpticalCON Cable Assembler (COCA), ensuring that our technicians adhere to the latest training and polishing standards set by industry professionals. This certification guarantees that your cable is crafted with precision and expertise.

The OpticalCON system, upon which this cable is based, improves upon the standard LC connectors by eliminating their weaknesses. It provides a safe, dust-protected, and rugged connection that is designed to withstand the rigors of outdoor use.

The OpticalCON QUAD system, specifically, is optimized for Point-to-Point interconnections and multi-channel routing applications. With four channels, it meets the growing demand for increased fiber optic channels. Each cable connector houses four PC optical channels, based on the proven LC connectivity, all protected by a ruggedized and durable all-metal housing.

Featuring a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn, this cable ensures a secure and stable connection. The optical connection is exceptionally well-protected against dirt and dust by an automatically operated sealing cover.

Please note, the cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum, or airspool. Choose the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable for a durable, high-performance fiber optic solution.

Camplex QUAD Singlemode Outside Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • COCA Factory Terminated

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data transfer with this 250' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical cable withstands harsh environments easily.
  • This singlemode fiber cable supports digital audio, video, and networking needs.
  • Enjoy broad compatibility; works with JVC FS-790 cameras & Telecast CopperHead.
  • Shielded OpticalCON QUAD connectors ensure a stable connection with low signal loss.
  • Withstands 1000+ cycles; a dependable fiber optic cable for staging and deployment.

What's in the box:

  • Camplex OpticalCON QUAD to QUAD Singlemode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
