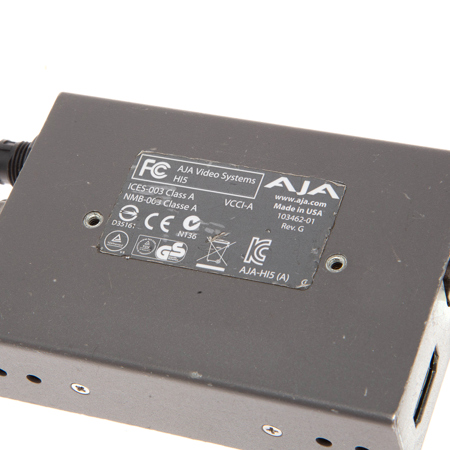

Picture does not represent the actual item
See what's in the box

See all AJA items

Used AJA Video Hi5 HD-SDI/SDI to HDMI Video and Audio Converter

SKU: US1818699

This item is no longer available.

Recommended Items

AJA Hi5-Plus: Picture 1 regular
AJA 3G-SDI to HDMI Mini Converter with PsF to P Support
$458.35
AJA Hi5-12G-R-ST: Picture 1 regular
AJA Hi5-12G-R-ST 12G-SDI to HDMI 2.0 Mini-Converter with ST Fiber Receiver
$1,435.00
AJA Hi5-12G: Picture 1 regular
AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter
$999.00$992.44
AJA HI5-12G-TR: Picture 1 regular
AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver
$1,495.00
AJA HI5-12G-R: Picture 1 regular
AJA Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Receiver
$1,245.00$1,239.99
AJA Hi5-Fiber: Picture 1 regular
AJA Hi5-Fiber 3G-SDI Over Fiber to HDMI Video and Audio Converter
$879.00
AJA Hi5-4K-Plus: Picture 1 regular
AJA Hi5-4K-Plus Pristine 3G-SDI to HDMI 2.0 Conversion
$865.00$835.00
AJA Hi5-Plus: Picture 1 regular
AJA 3G-SDI to HDMI Mini Converter with PsF to P Support, 2-Ch RCA Analog Audio Output, 7.5W Capacity
$74.00$65.00
AJA Hi5: Picture 1 regular
AJA Video Hi5 HD-SDI/SDI to HDMI Video and Audio Converter
$74.00$71.00
AJA Hi5-12G: Picture 1 regular
AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter
$894.00
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2017-11-03T13:14:17

Rated 5 out of 5

Product works as expected

Product works as expected and Adorama was excellent to work with.

BRIGHAM U.

2017-09-25T02:48:33

Rated 5 out of 5

AJA Converter perfect for our project

Converter was a perfect match for our project. We are using these converters in line to monitors with HDMI connections. We've had the same converters in other installations, running for years with no issues.

ACCOUNTS P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

AJA Hi5 Specifications

  • Input Formats

    525i, 625i,
    720p 50/59.94/60,
    1080i 50/59.94/60,
    1080p23.98, 1080p24, 1080p25, 1080p29.97 and 1080p30

  • Video Input

    HD-SDI/SDI, SMPTE-259/274/292/296

  • Outputs

    HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8 channels)
    Analog Audio-2 channel RCA-style outputs at -10dBV (nominal), Channel 1 and 2
    1 Looping SDI/HD-SDI output of the SDI input (75 ohm, unterminated)

  • HDMI

    Standard Type A connector

  • HDMI Video

    8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)

  • HDMI Audio

    24-bit, with 2 or 8 embedded channels (selectable by internal jumper)

  • HDCP

    The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.

  • Power

    +5 VDC regulated, 3 watts
    DWP-U-R1 AJA power supply (included)

  • Size

    4.6" x 2.4" x 1" (117mm x 61mm x 25mm.)

  • Warranty

    AJA 5 years parts & labor warranty

1 Accessories for AJA Video Hi5 HD-SDI/SDI to HDMI Video and Audio Converter

  • All Accessories (1)
  • Batteries & Power Supply (1)
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
$152.00
Recommended

About AJA Video Hi5 HD-SDI/SDI to HDMI Video and Audio Converter - SKU#1818699

FEATURED REVIEWS

Product works as expected

By BRIGHAM U.

Product works as expected and Adorama was excellent to work with.

AJA Converter perfect for our project

By ACCOUNTS P.

Converter was a perfect match for our project. We are using these converters in line to monitors with HDMI connections. We've had the same converters in other installations, running for years with no issues.

The AJA Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2 Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SDI/HD-SDI output useful for connecting additional equipment, or for "daisy chaining" multiple monitors to the same SDI-HD-SDI source.

AJA Video Hi5 HD-SDI/SDI to HDMI Video and Audio Converter - SKU#1818699 Features

  • SDI/HD-SDI to HDMI
  • Full HDMI support including 10-bit video and 8 channels of embedded audio
  • Additional 2 Channel RCA jack audio output (channels 1 and 2)
  • Equalized Looping SDI/HD-SDI output
  • HDMI cable supplied
  • Uses 5V power (supply sold separately)
  • No configuration necessary

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA Hi5 HD-SDI/SDI to HDMI Video and Audio Converter
  • Item Note: Missing HDMI Cable; DWP-U-R1 AJA Worldwide Power Supply
